Step Three
-->Assemble swing arm to main frame, lower
linkage first

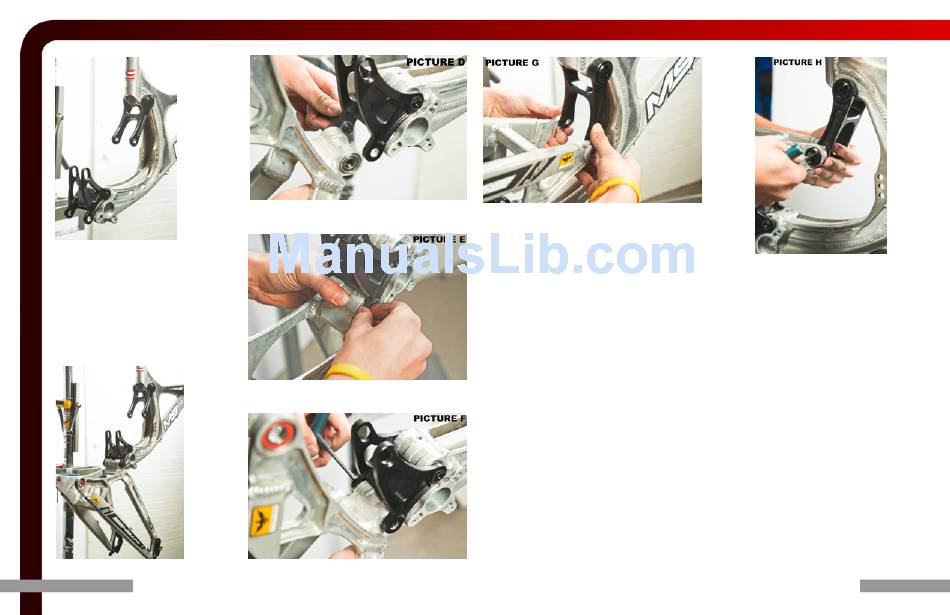

A. Using the .5 x .75 x .06 steel washers, place a thin
coat of grease to both sides of the washer. (picture D)
B. Place the washers on the bearing surfaces on the rear end
C.. Slide the swing arm in between the link and slide the lower pivot bolt into
place securing to 150 in/lbs (picture E | picture F)
D. Attach E-Clip to pivot bolt
-->--> Assemble upper part of swingarm to upper link
A. You want to start with attaching the upper stays to the upper link
B. Using the .486 x .717 x.140 alum spacers, place a thin coat of grease onto
the washers and set them in the swing arm on the inner side. The grease helps
them stay in place as you attach the swing arm. (picture G)
C. Position the rear stays in alignment with the lower link and slide in the shoul-
der bolts and tighten to 300 in/lbs. (picture H)

• Cable Routing:

Intense uses clip on cable guides, that are welded to the frame. Housing and
brake lines can be fixed to these guides by the enclosed plastic clips, or for a
more permanent tighter application you can use zip ties. The main theme to
achieve in routing housing and brake lines is to use nice, flowing curves.
