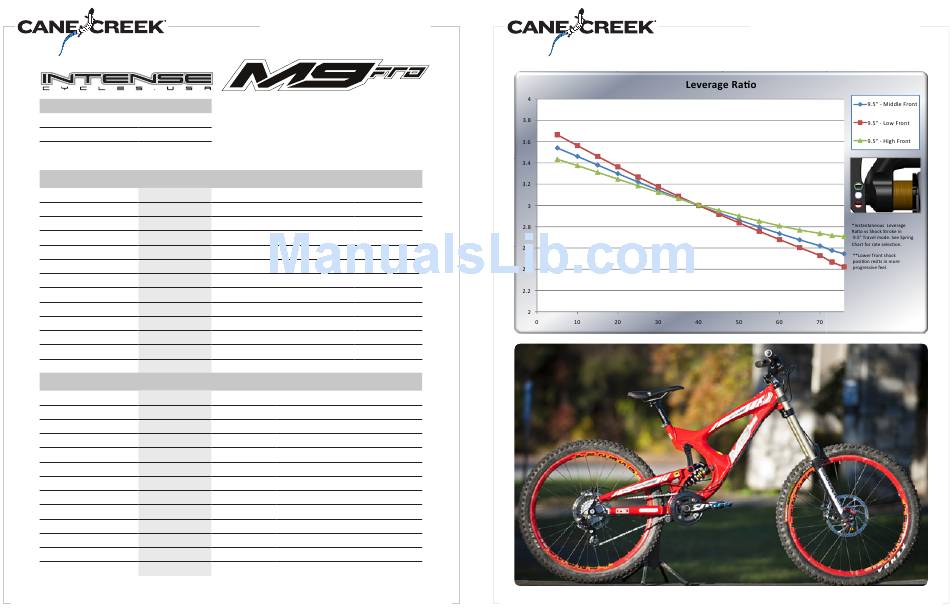

Intense Cycles M9 PRO Owner's Manual page 11

Travel Setting Lever Ratio at sag point
8.5 2.88
9 3
9.5 3.22
Rider Weight with Gear (lb)/(kg) Frame Travel (in)
130/59 8.5/9
140/64 8.5/9
150/68 8.5/9
160/73 8.5/9
170/77 8.5/9
180/82 8.5/9
190/86 8.5/9
200/91 8.5/9
210/95 8.5/9
220/100 8.5/9
230/105 8.5/9
240/109 8.5/9
250/114 8.5/9
Rider Weight with Gear (lb)/(kg) Frame Travel (in)
130/59 9.5
140/64 9.5
150/68 9.5
160/73 9.5
170/77 9.5
180/82 9.5
190/86 9.5
200/91 9.5
210/95 9.5
220/100 9.5
230/105 9.5
240/109 9.5
250/114 9.5
Cane Creek Cycling Components | 355 Cane Creek Rd, Fletcher, NC 28732
Double Barrel Spring Chart
*Sag results may vary.
Expect 30-35% based on calculations.
Adjust preload accordingly.
Spring Rate (lb/in) Preload (turns) Sag (%)
250 2 -4 34
300 1 34
300 1 34
300 2 -4 34
350 1 34
350 2 -4 34
400 1 34
400 2 -4 34
450 1 34
450 2 -4 34
500 1 34
500 2 -4 34
550 1 34
Spring Rate (lb/in) Preload (turns) Sag (%)
300 1 34
300 2 -4 34
350 1 34
350 2 -4 34
400 1 34
400 2 -4 34
450 1 34
450 2 -4 34
500 1 34
500 2 -4 34
550 1 34
550 2 -4 34
600 1 34
