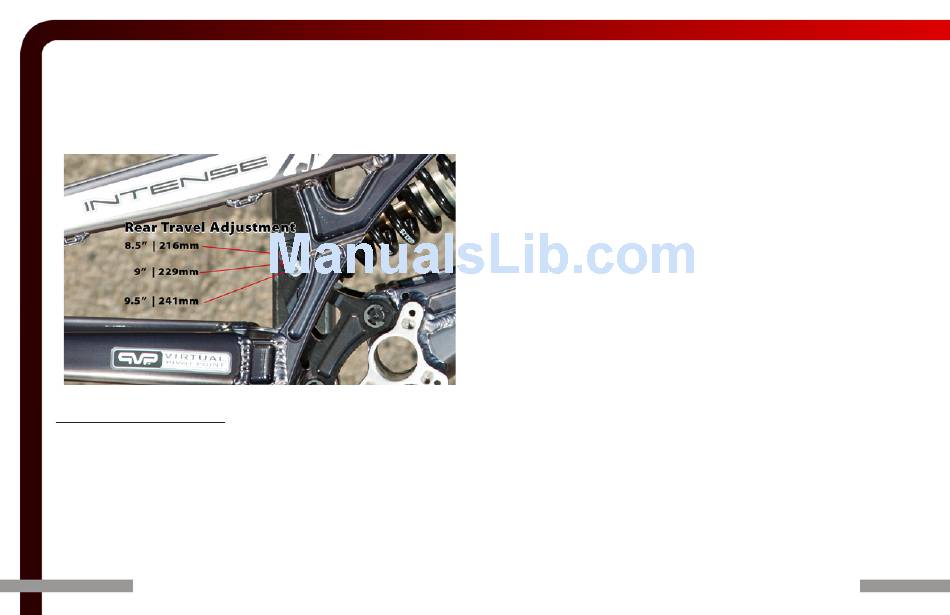

straight, not crooked.
• Undo the M8x50 steel shock bolt with a 6mm allen wrench
the 'flip chips' will now be free to remove
• Put in the other set of chips OR if using the offset ones, flip the chip over to
use the opposite side
• Slide in rear shock bolt and tighten to 190 in/lbs
G3 Adjustable Rear Dropout
G3 rear dropouts can adjust your wheel base in 1/4" increments. It will also
slightly effect the head angle and bottom bracket height. These changes are
different depending on tires, fork, current AngleSet cup. A general estimate is
that with every position change of the G3 you effect the bottom bracket height
about 1/8th"(4mm) and you effect the head angle about a 1/4° with each
change of the G3.
The G3 is fixed with standard chain ring bolts that can be found at a local bike
shop.
PAGE 15
To change the position of the G3:
• First loosen the top and bottom bolt to relieve tension on the G3 assembly
• Completely undo the bottom G3 bolt and remove the male and female sides,
the washer will probably come out as well. (there is only one washer for each
of the bolts (.5 x .75 x .025) and this washer should be placed in between the
swing arm and the G3, on the inside of the frame.)
• You can now move the G3 assembly to the desired position, of the 3 available
positions.
• Align the holes of the desired setting, slide in the female side bolt from the
'inside' of the frame while sliding up the thin washer between swing arm tabs
and G3.
• Slide in the male side of the bolt, tighten up to 100 in/lbs of torque
• Be sure to tighten the top/fixed pivot bolt set of the G3 as well, also to 100 in/
lbs
