Operators and Technicians Manual
GDS Adapter Cable
The GDS Power Adapter Cable is an optional cable that powers the printer from a standard 1 x 4 Molex
mini-fit GDS power port.
P/N 150-00164-100
Base Port
4-pin GDS Connector
14
8
1
7

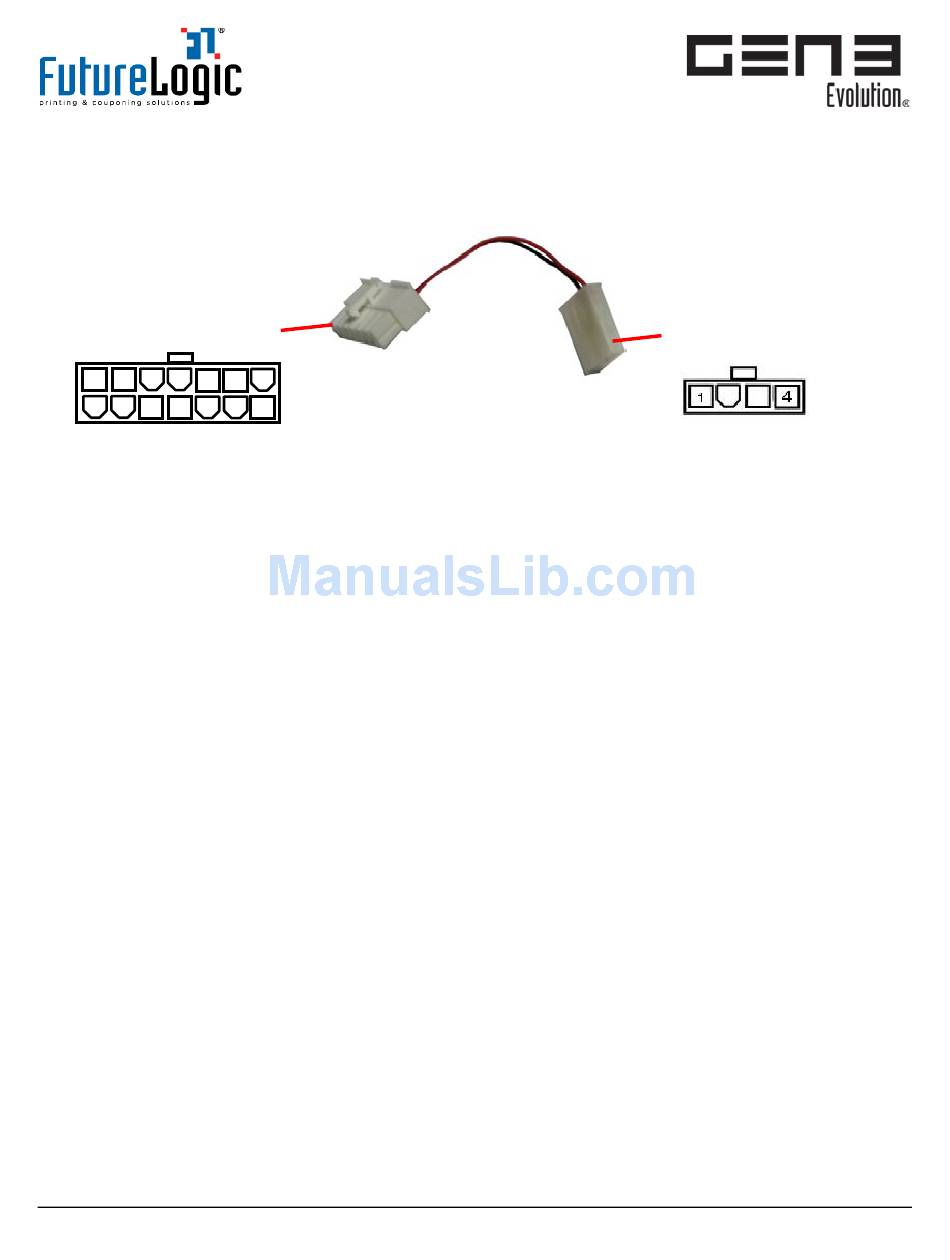

Figure 5-5
GDS Adapter Cable
ã 2011 – 2014 FutureLogic, Incorporated. All Rights Reserved.
MNL Page 14 04/10/2014
MNL-000067 REV.X03
