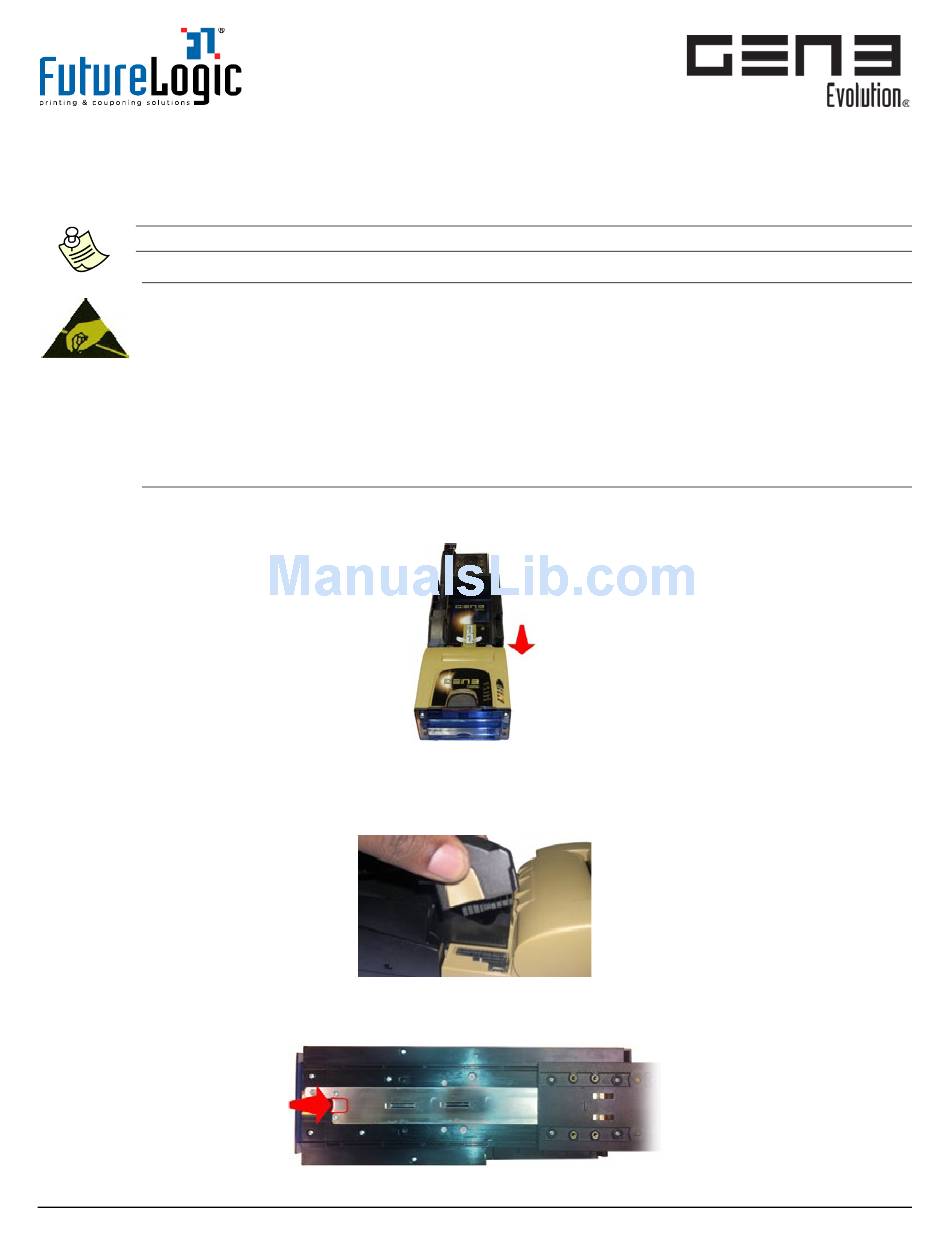

Remove the Printer for Servicing Outside of Game

The GEN3 Evolution printer mounts inside the machine on its own fixed-position Sliding Base. The main
body of the printer slides forward to a stop-point on the base for easy access (for example, to load tickets).
Note: Although the printer is hot swappable, it is still a good practice to turn off the power.
CAUTION! ESD Sensitive Equipment!
Electronic boards and their components are sensitive to static electricity. Care must be taken
during all handling operations and inspections of this product in order to ensure product
integrity at all times.
Do not handle this product out of its protective enclosure while it is not in use for operations
purposes unless it is otherwise protected. Discharge your clothing before touching the
assembly. Discharge tools before use.
Where a safe workstation is not guaranteed, it is important for the user to be electrically
discharged before touching the product with his/her hands or tools.
1. From the game, open the game door and disconnect the power.
2. Pull the printer forward until it stops in the Sliding Base.
3. (Optional) Remove the paper from the printer.
4. Disconnect the Interface Cable Connector.
5. Push and hold the Release Slide (on bottom of printer) and pull out the printer from its Sliding Base.
ã 2011 – 2014 FutureLogic, Incorporated. All Rights Reserved.
Figure 4-2
Figure 4-3 Disconnect Interface Cable Connector
Figure 4-4 Pull and Hold Release Slide
Pull Printer Forward
Operators and Technicians Manual
MNL Page 8 04/10/2014
MNL-000067 REV.X03
