4 Maintenance & Service

Introduction

This chapter provides instructions on printer maintenance and service outside of the game.

Printer Sensors

The printer has five sensors that work with the game firmware to provide reliable trouble-free operation.
Num Sensor
1 Printer Tray
(Drawer Open)
2 Lid Open
(Printer Open)
3 Ticket Taken
(Paper Taken)
4 Ticket Low
(Paper Low)
5 Paper Out /
Index Mark
ã 2011 – 2014 FutureLogic, Incorporated. All Rights Reserved.

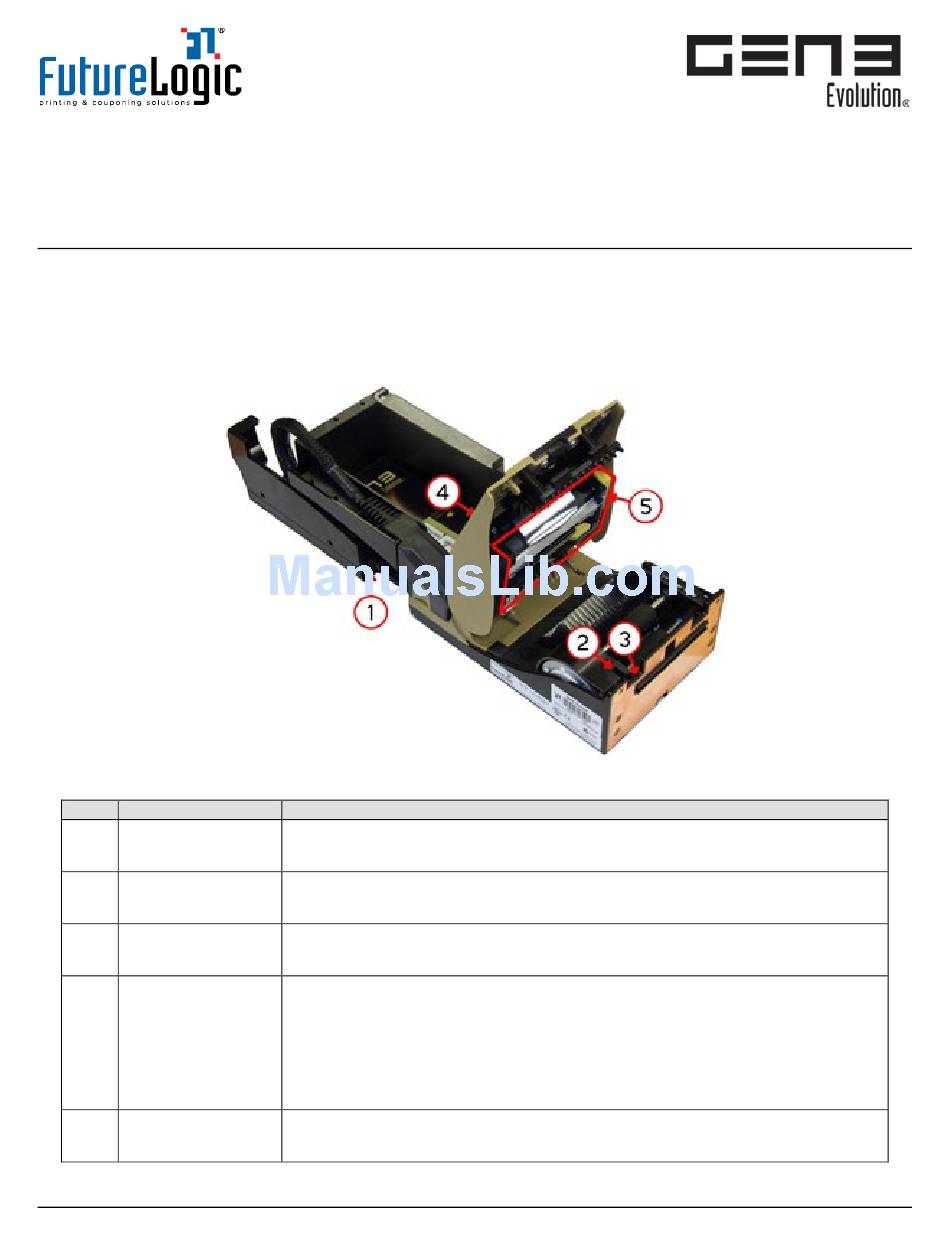

Figure 4-1 Printer Sensors
This plastic tab and sensor detects if the printer is pulled forward.
This plastic tab and sensor detects if the Printer Lid is open.
This sensor detects tickets being presented and if the ticket is taken. It is
located in front of the feed rollers, just behind the Ticket Out Slot.
This sensor, located under the Ticket Tray, activates when the last ticket
is taken from the Ticket Tray. This sensor determines when the paper
stack has approximately 1 or 2 tickets remaining. A Paper Low condition
automatically resets once a stack with a greater height is loaded. Paper
low sensing occurs when the system is idle and takes a few seconds to
detect the new paper level.
This sensor is located within the Print Head. It detects when a ticket is
present. It also detects the index top-of-form (TOF) mark.
