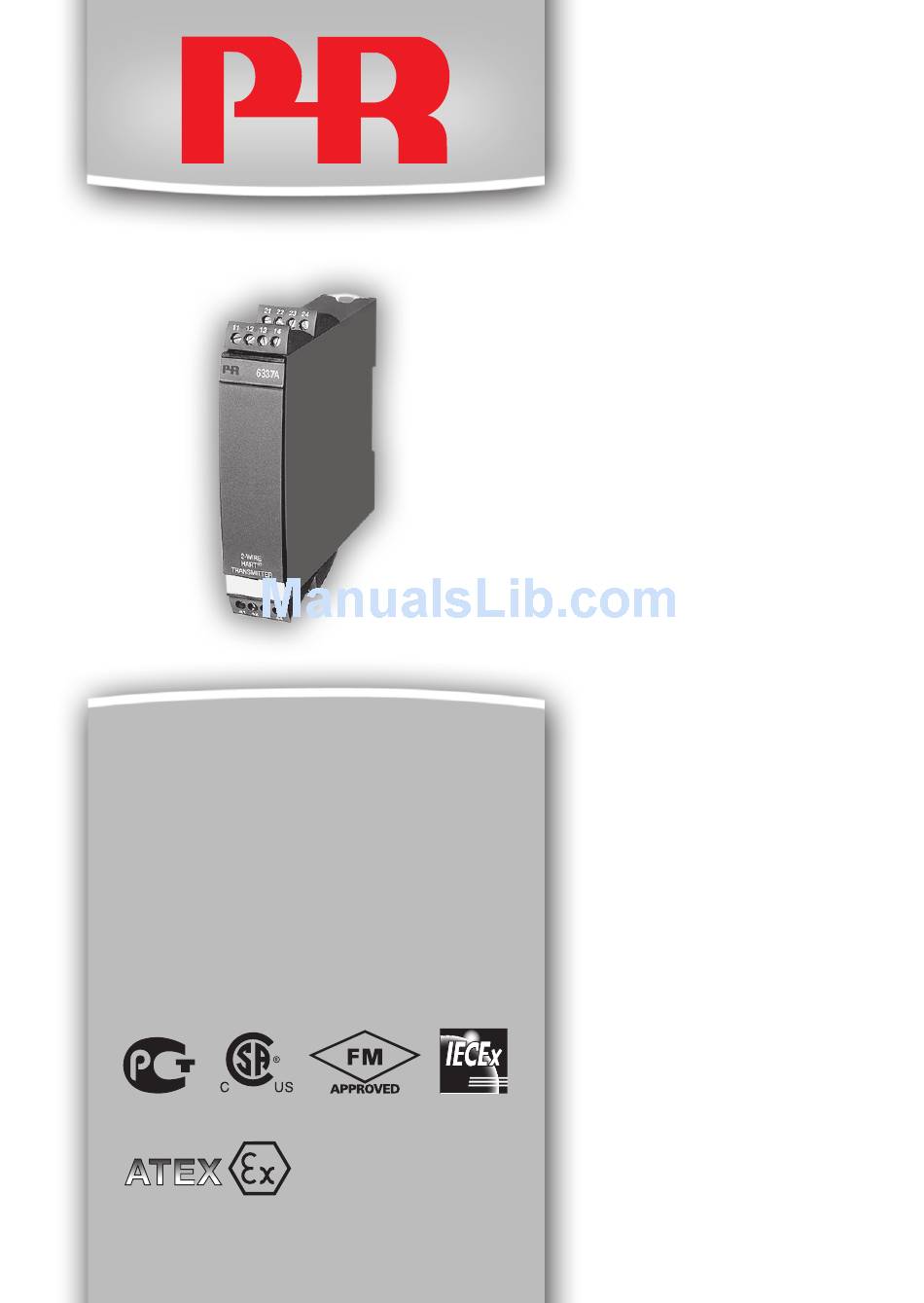

- Page 1 6 3 3 7 ® 2 - w i r e H A R T T r a n s m i t t e r N o . 6 3 3 7 V 1 0 0 - U K F r o m s e r .
- Page 2 PR electronics A/S tilbyder et bredt program af analoge og digitale signalbehandlingsmoduler til industriel automation. Programmet består af Isolatorer, Displays, Ex-barrierer, Temperaturtransmittere, Universaltransmittere mfl. Vi har modulerne, du kan stole på i selv barske miljøer med elektrisk støj, vibrationer og temperaturud- sving, og alle produkter opfylder de strengeste internationale stan- darder.
-
Page 3: Table Of Contents
EC declaration of conformity ..........Application ................. Technical characteristics ............ Mounting / installation / programming ....... Applications ................ Accessories ................ Ordering codes for 6337 ............ Technical data ..............Switching HART protocol revision ........® Connections ............... 11 Block diagram ..............13 Programming .............. -
Page 4: Ec Declaration Of Conformity
EC DECLARATIoN oF CoNFoRMITy As manufacturer PR electronics A/S Lerbakken 10 DK-8410 Rønde hereby declares that the following product: Type: 6337 ® Name: 2-wire HART transmitter is in conformity with the following directives and standards: The EMC Directive 2004/108/EC and later amendments... -
Page 5: Application
PRETRANS 6337 ® 2-WIRE HART TRANSMITTER • RTD, TC, Ohm, or mV input • 2 analogue inputs and 5 device variables with status available • HART protocol revision selectable from HART 5 or ® ® HART ® • Hardware assessed for use in SIL applications •... -
Page 6: Technical Characteristics
SIL installations. • Continuous check of vital stored data. • Meeting the NAMUR NE 21 recommendations, the 6337 HART transmit- ter ensures top measurement performance in harsh EMC environments. Additionally, the 6337 meets NAMUR NE 43 and NE 89 recommendations. Mounting / installation / programming • DIN rail mounting with up to 84 channels per metre. ® • Configuration via standard HART communication interfaces or by PR 5909 Loop Link. -
Page 7: Applications
APPLICATIoNS 2-wire installation in control room RTD to 4...20 mA 2-wire installation TC to 4...20 mA in control room 2-wire installation Resistance in control room to 4...20 mA 2-wire installation mV to 4...20 mA in control room 2-wire installation Difference or average in control room RTD, TC or mV 63 3 7 V 1 0 0 - I N... -
Page 8: Accessories
6337 Galvanic Type Version Channels isolation 6337 Standard 1500 VAC : 2 Single ATEX, CSA, FM & IECEx Double Accessories 5909 = Loop Link USB interface and PReset Software 5910 / 5910Ex = CJC connector for channel 1... - Page 9 Signal / noise ratio ........> 60 dB ® Communications interface ......Loop Link & HART Response time (programmable)....1...60 s Accuracy, the greater of general and basic values: General values Absolute Temperature Input type accuracy coefficient ≤ ±0.05% of span ≤...
- Page 10 Input specifications: RTD input types: Pt50, Pt100, Pt200, Pt500, Pt1000, Ni50, Ni100, Ni120, Ni1000 Cable resistance per wire (max.) ....50 Ω Sensor current ..........Nom. 0.2 mA Min. Max. Min. Standard type value values span Pt100 IEC 60751 -200°C +850°C 10°C Ni100 -60°C +250°C 10°C DIN 43760...
-
Page 11: Switching Hart Protocol Revision
® Switching from HART 5 to HART Please note that this is only possible if the transmitter is label marked as ”6337”! Enter the 6335 PReset tab ”oPTIoNS” and click ”Protect”. Write protection must be set ON and select Change Password. Type in the New Password ”HARTREV7” and Re-enter ”HARTREV7”. Press OK. - Page 12 Approvals: EMC 2004/108/EC ........EN 61326-1 GOST R Ex / I.S.: 6337A: ATEX 94/9/EC........KEMA 10ATEX0006 X IECEx ........... KEM 10.0084 X 6337D: ATEX 94/9/EC........KEMA 09ATEX0148 X IECEx ........... KEM 10.0083 X FM certificate ........2D5A7 CSA certificate ........1125003 GOST Ex Functional Safety: Hardware assessed for use in SIL applications...
-
Page 13: Connections
CoNNECTIoNS Inputs: RTD, 2-wire RTD, 3-wire RTD, 4-wire TC, internal CJC 41 42 41 42 41 42 RTD, 2-wire RTD, 3-wire RTD, 4-wire TC, internal CJC 51 52 51 52 51 52 TC, external CJC Resistance, 2-wire Resistance, 3-wire Resistance, 4-wire 41 42 41 42 41 42... - Page 14 CoNNECTIoNS Inputs: TC, di erence TC, di erence RTD, di erence or average, or average, or average with internal CJC with external CJC 41 42 41 42 41 42 41 42 TC, di erence TC, di erence or average, or average, RTD, di erence or average with internal CJC...
-
Page 15: Block Diagram
BLoCK DIAGRAM Ex circuit, only 6337D 63 3 7 V 1 0 0 - I N... -
Page 16: Programming
PRoGRAMMING PRetrans 6337 can be configured in the following 3 ways: 1. With PR electronics A/S’ communications interface Loop Link and PReset PC configuration software. ® 2. With a HART modem and PReset PC configuration software. ® 3. With a HART communicator with PR electronics A/S’ DDL driver. 1: Loop Link For programming please refer to the drawing below and the help functions in PReset. - Page 17 For programming please refer to the drawing below. To get access to product- ® specific commands, the HART communicator must be loaded with the ® PR electronics A/S DDL driver. This can be ordered either at the HART Communica tion Foundation or PR electronics A/S. Receiving Safe area area...
-
Page 18: Connection Of Transmitters In Multidrop Mode
CoNNECTIoN oF TRANSMITTERS IN MULTIDRoP MoDE ® • The HART communicator or a PC modem can be connected accross AB or PRetrans PRetrans PRetrans 6337 6337 6337 Power supply Max. 63 channels > 250 ohm, < 1100 ohm load • The outputs of max. 63 transmitters can be conected in parallel for a digital ®... -
Page 19: Appendix
APPENDIX ATEX INSTALLATIoN DRAWING - 6337A IECEX INSTALLATIoN DRAWING - 6337A ATEX INSTALLATIoN DRAWING - 6337D IECEX INSTALLATIoN DRAWING - 6337D FM INSTALLATIoN DRAWING No. 6335QF01 CSA INSTALLATIoN DRAWING No. 6335QC02 63 3 7 V 1 0 0 - I N... - Page 20 6335QA02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM ATEX Installation drawing For safe installation of 6335A, 6336A or 6337A the following must be observed. The module shall only be Installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
- Page 21 6335QA02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Special conditions for safe use. Type of protection Ex ic IIC Gc: The transmitter shall be installed in an enclosure that provides a degree of protection of at least IP54 according to EN60529. Type of protection Ex ic IIIC Dc: The transmitter shall be installed in an enclosure providing a degree of protection of at least IP6X according to EN60529.
- Page 22 6335QI02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM IECEx Installation drawing For safe installation of 6335A, 6336A or 6337A the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
- Page 23 6335QI02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Installation notes. Type of protection Ex ic IIC Gc or Ex nA IIC Gc The transmitter shall be installed in an enclosure that provides a degree of protection of at least IP54 according to IEC60529. Type of protection Ex ia IIIC Da: The transmitter shall be installed in an enclosure that provides a degree of protection of at least IP6X according to IEC60529.
- Page 24 6335QA01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM ATEX Installation drawing For safe installation of 6335D, 6336D or 6337D the following must be observed. The module shall only be Installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
- Page 25 6335QA01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Installation notes The sensor circuit is not infallibly galvanic isolated from the supply output circuit. However, the galvanic isolation between the circuits is capable of withstanding a test voltage of 500Vac during 1 minute.
- Page 26 6335QI01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM IECEx Installation drawing For safe installation of 6335D, 6336D or 6337D the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
- Page 27 6335QI01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Installation notes The sensor circuit is not infallibly galvanic isolated from the supply output circuit. However, the galvanic isolation between the circuits is capable of withstanding a test voltage of 500Vac during 1 minute. For installalation in dust the following instructions apply: The transmitter shall be mounted in a metal enclosure that is providing a degree of protection of at least IP6X according to IEC 60529.The surface temperature of the enclosure is equal to...
-
Page 28: Fm Installation Drawing - 6337D
6335QF01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM FM Installation drawing Hazardous (Classified ) Location Non Hazardous Location T6: -40 ≤ Ta ≤ 60ºC Class I, Division 1, Group A,B,C,D Class I, Zone 0, IIC Terminal: 41,42,43,44 Uo: 9.6 VDC Io: 28 mA Po: 67 mW Lo: 35 mH Terminal:... -
Page 29: Csa Installation Drawing - 6337D
6335QC02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM CSA Installation drawing Hazardous (Classified ) Location Non Hazardous Location T6: -40 ≤ Ta ≤ 60ºC Class I, Division 1, Group A,B,C,D Class I, Zone 0, IIC Terminal: 41,42,43,44 Uo: 9.6 VDC Io: 28 mA Terminal: Po: 67 mW 11,12,13,14 and... - Page 30 Displays Programmable displays with a wide selection of inputs and outputs for display of temperature, volume and weight, etc. Feature linearisation, scaling, and difference measurement functions for programming via PReset software. Ex interfaces Interfaces for analogue and digital signals as well as HART signals between sensors / I/P converters / ®...
