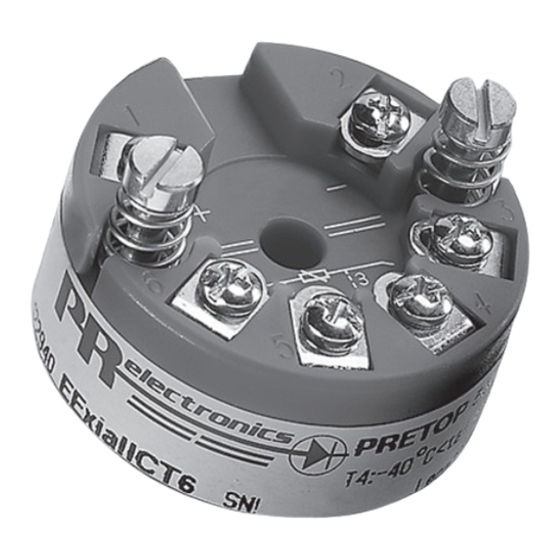

- Page 1 5 3 3 1 2 - W i r e P r o g r a m m a b l e T r a n s m i t t e r N o . 5 3 3 1 V 1 1 4 - U K F r o m s e r .
- Page 2 Revision Notes The following list provides notes concerning revisions of this document. Rev. ID Date Notes 13/45 IECEx and INMETRO approvals added 15/10 PESO/CCOE approval added GOST approval replaced with EAC approval 1510...
-
Page 3: Table Of Contents
IECEx Installation Drawing - 5331D ..........17 FM Installation Drawing - 5331D ..........19 CSA Installation Drawing - 5331D ..........21 INMETRO Instruções de Segurança - 5331A ......22 INMETRO Instruções de Segurança - 5331D ......23 5 33 1 V 1 14 - UK... -
Page 4: Application
• For DIN form B sensor head mounting Application • Linearised temperature measurement with Pt100...Pt1000, Ni100...Ni1000, or TC sensor. • Conversion of linear resistance variation to a standard analogue current signal, for instance from valves or Ohmic level sensors. • Amplification of a bipolar mV signal to a standard 4...20 mA current signal. Technical characteristics • Within a few seconds the user can program PR5331 to measure temperatures within all ranges defined by the norms. • The RTD and resistance inputs have cable compensation for 2-, 3- and 4-wire connection. • Continuous check of vital stored data for safety reasons. Mounting / installation • For DIN form B sensor head mounting. In non-hazardous areas the 5331 can be mounted on a DIN rail with the PR fitting type 8421. 5331V11 4 -UK... -
Page 5: Applications
APPLICATIONS 2-wire installation in control room RTD to 4...20 mA 2-wire installation in control room TC to 4...20 mA 2-wire installation in control room Resistance to 4...20 mA 2-wire installation in control room mV to 4...20 mA 5 33 1 V 1 14 - UK... -
Page 6: Order: 5331
Order: 5331 Ambient Galvanic Type Version temperature isolation 5331 Standard -40°C...+85°C : 3 1500 VAC CSA, FM, ATEX, IECEx & INMETRO : D Electrical specifications Specifications range: -40°C to +85°C Common specifications: Supply voltage, DC Standard ............. 7.2...35 V CSA, FM, ATEX, IECEx & INMETRO ... 7.2...30 VDC Internal consumption .......... 25 mW...0.8 W Voltage drop .............. - Page 7 Basic values Basic Temperature Input type accuracy coefficient ≤ ±0.2°C ≤ ±0.01°C/°C Lin. R ≤ ±0.1 Ω ≤ ±10 mΩ / °C ≤ ±10 µV ≤ ±1 µV / °C Volt TC type: ≤ ±1°C ≤ ±0.05°C / °C E, J, K, L, N, T, U TC type: B, R, S, ≤ ±2°C ≤...
- Page 8 TC input: Min. Max. Min. Type temperature temperature span Standard +400°C +1820°C 100°C IEC584 -100°C +1000°C 50°C IEC584 -100°C +1200°C 50°C IEC584 -180°C +1372°C 50°C IEC584 -100°C +900°C 50°C DIN 43710 -180°C +1300°C 50°C IEC584 -50°C +1760°C 100°C IEC584 -50°C +1760°C 100°C IEC584...
- Page 9 EAC TR-CU 020/2011 ..........EN 61326-1 Marine approval: Det Norske Veritas, Ships & Offshore ..... Stand. f. Certific. No. 2.4 Ex / I.S.: ATEX 94/9/EC 5331A ..............KEMA 10ATEX0002 X 5331D..............KEMA 06ATEX0062 X FM certificate ............2D5A7 CSA certificate ............1125003 IECEx ................DEK 13.0035X INMETRO ..............
-
Page 10: Connections
CONNECTIONS Input: RTD, 2-wire RTD, 3-wire RTD, 4-wire TC, internal CJC Resistance, 2-wire Resistance, 3-wire TC, external CJC Resistance, 4-wire Output: 2-wire installation 5331V11 4 -UK... -
Page 11: Block Diagram
BLOCk DIAGRAM Ex circuit, only 5331D 5 33 1 V 1 14 - UK... -
Page 12: Programming
PROGRAMMING • Loop Link is a communications interface that is needed for programming 5331. • For programming please refer to the drawing below and the help functions in PReset. • Loop link is not approved for communication with modules installed in harzardous (Ex) areas. Order: Loop Link Receiving Equipment Disconnect +Vsupply Yellow Input Green Black 5331 Connector L oop 5909 - USB L ink * Connected only for on-line programming 5331V11 4 -UK... -
Page 13: Mounting Of Sensor Wires
Mechanical specifications Mounting of sensor wires ø 6 mm 2 0 . 2 m m 33 mm ø 44 mm Wires must be mounted between the metal plates. 5 33 1 V 1 14 - UK... -
Page 14: Appendix
ATEx Installation Drawing - 5331D IECEx installation drawing - 5331A IECEx installation drawing - 5331D FM Installation Drawing - 5331D CSA Installation Drawing - 5331D INMETRO Instruções de Segurança - 5331A INMETRO Instruções de Segurança - 5331D 5331V11 4 -UK... - Page 15 5331QA02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM ATEX Installation drawing For safe installation of 5331A3B or 5334A3B the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
- Page 16 5331QA01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM ATEX Installation drawing For safe installation of 5331D or 5334B the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
- Page 17 5331QA01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Installation notes. The sensor circuit is not infallibly galvanic isolated from the input circuit. However, the galvanic isolation between the circuits is capable of withstanding a test voltage of 500Vac during 1 minute. In a potentially explosive gas atmosphere, the transmitter shall be mounted in an enclosure in order to provide a degree of protection of at least IP20 according to EN60529.
- Page 18 WWW.PRELECTRONICS.COM IECEx Installation drawing For safe installation of 5331A or 5334A the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
- Page 19 5331QI01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM IECEx Installation drawing For safe installation of 5331D or 5334B the following must be observed. The module shall only be Installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
- Page 20 5331QI01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Installation notes. The sensor circuit is not infallibly galvanic isolated from the input circuit. However, the galvanic isolation between the circuits is capable of withstanding a test voltage of 500Vac during 1 minute. In a potentially explosive gas atmosphere, the transmitter shall be mounted in a metal form B enclosure in order to provide a degree of protection of at least IP20 according to IEC60529.
- Page 21 5300QF01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM FM Installation Drawing 5300Q502 Rev AH Model 5331C,5331D, 5333C, 5333D and 5343B Non Hazardous Location Hazardous (Classified) Location Class I,Division1, Groups, A,B,C,D T4..T6 Associated Apparatus Class I, Zone 0, AEx ia IIC T4..T6 or Barrier with Ambient temperature limits entity Parameters: T4: ‐40 to + 85 deg. Celcius T6: ‐40 to + 60 deg. Celcius...
- Page 22 5300QF01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM The entity concept The Transmitter must be installed according to National Electrical Code (ANSI-NFPA 70) and shall be installed with the enclosure, mounting, and spacing segregation requirement of the ultimate application. Equipment that is FM-approved for intrinsic safety may be connected to barriers based on the ENTITY CONCEPT.
- Page 23 5335QE01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM CSA Installation drawing 533XQC03 Hazardous area Non Hazardous Area T4: -40 ≤ Ta ≤ 85ºC T6: -40 ≤ Ta ≤ 60ºC Module 5331D, 5333D Terminal: 3,4,5,6 Only passive, or non-energy storing devices such as RTD’s and Thermocouples may be connected Barrier...
- Page 24 WWW.PRELECTRONICS.COM Desenho de Instalação INMETRO Para instalação segura do 5331A ou 5334A o seguinte deve ser observado. O modo deve apenas ser instalado por pessoas qualificadas que são familiarizadas com as leis nacionais e internacionais, diretrizes e padrões que se aplicam a esta área.
- Page 25 5331QB01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Desenho de Instalação INMETRO Para instalação segura do 5331D ou 5334B o seguinte deve ser observado. O modo deve apenas ser instalado por pessoas qualificadas que são familiarizadas com as leis nacionais e internacionais, diretrizes e padrões que se aplicam a esta área.
- Page 26 5331QB01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Notas de instalação O circuito do sensor não é isolado galvanicamente infalível do circuito de entrada. Contudo, a isolação galvânica entre os circuitos é capaz de resistir a um teste de tensão de 500Vac durante 1 minuto.
- Page 27 Displays Programmable displays with a wide selection of inputs and outputs for display of temperature, volume and weight, etc. Feature linearization, scaling, and difference measurement functions for programming via PReset software. Ex interfaces Interfaces for analog and digital signals as well as HART signals between sensors / I/P converters / frequency ® signals and control systems in Ex zone 0, 1 & 2 and for some devices in zone 20, 21 & 22.
