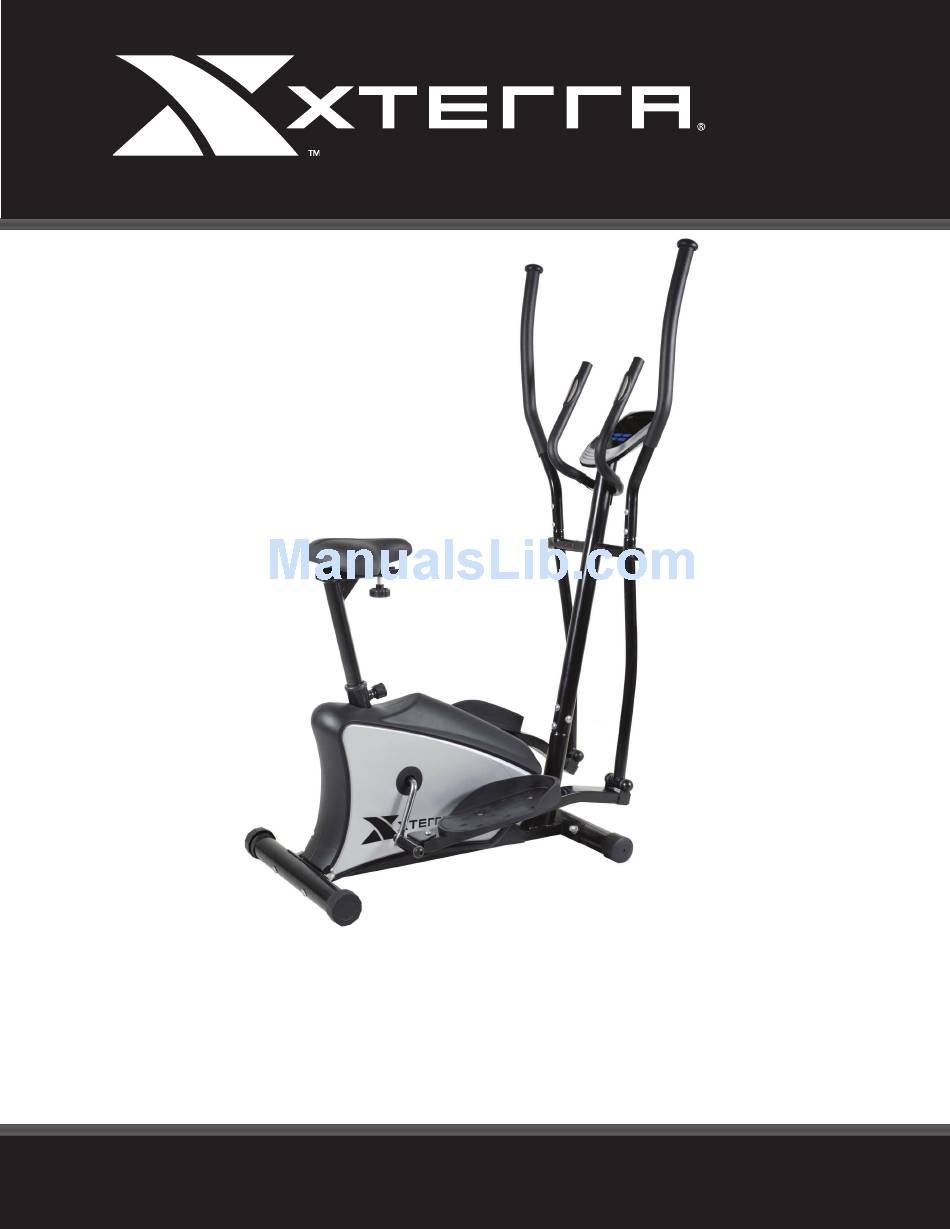

- Page 1 FITNESS EU150 HYBRID ELLIPTICAL UPRIGHT BIKE OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW Hybrid Elliptical Upright Bike...
-
Page 3: Table Of Contents
Fitness. Your new Hybrid Elliptical Upright Bike has been manufactured by one of the leading fitness manufacturers in the world. XTERRA Fitness will do all we can to make your ownership experience as pleasant as possible for many years to come. If you have questions, or if parts are missing or damaged, or you require customer service, call (870) 333-5500. -
Page 4: Product Registration
Serial Number Register Your Purchase The self-addressed product registration card must be completed in full and returned to XTERRA Fitness. You can also go to www.xterrafitness.com/warrantyreg.html to register online. Power This product uses an external power supply. The adapter must be plugged into the power jack, located on the front of the unit near the stabilizer tube. -
Page 5: Important Safety Instructions
Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and possibly others) to injury, and reduce the longevity of the equipment. SAVE THESE INSTRUCTIONS - THINK SAFETY! CAUTION!! Please be careful when unpacking the carton. EU150 Hybrid Elliptical Upright Bike... -
Page 6: Before You Begin
Before you begin Thank you for selecting our revolutionary XTERRA EU150 Hybrid Elliptical Upright Bike. Walking is an effective exercise for increasing cardiovascular fitness, building endurance, and toning the body. Our fitness Hybrid Elliptical Upright Bike provides an impressive selection of features designed to make your workouts at home more effective and enjoyable. -
Page 7: Eu150 Assembly Instructions
PART NO. DESCRIPTION Q’TY Main Frame 11/12 Pedal Tube (L/R) Stationary Handlebar Seat Rear Stabilizer Front Stabilizer 9/10 Pedal (L/R) Computer Front Post Seat Post 16/64 Upper Handlebar (L/R) 14/15 Bottom Handlebar (L/R) Hardware Bag Manual EU150 Hybrid Elliptical Upright Bike... - Page 8 Allen Key 6mm Allen Key 8mm Allen Wrench Note: Above parts are all the parts needed to assemble this machine. Before you start to assemble, please check the hardware packing to make sure they are included. EU150 Hybrid Elliptical Upright Bike...
- Page 9 1. Attach the Front Stabilizer (2) to the front of the Main Frame (1), fasten with two Carriage Bolts (8), two Curved Washers (6) and two Domed Nuts (7). 2. Repeat for the Rear Stabilizer (4) to the rear of the Main Frame (1). EU150 Hybrid Elliptical Upright Bike...
- Page 10 4 Curved Washers (#31) 1. Connect lower computer wire (58) with upper computer wire (60). 2. Insert the front post (13) into the main frame (1), tighten with four allen screws (30) and four curved washers (31). EU150 Hybrid Elliptical Upright Bike...
- Page 11 Washer (35), one Spring Washer (34) and one Hex Head Screw(33). Attach the PVC Cap (32) onto the Hex Head Screw(33). 2. Repeat for the Right Bottom Handlebar (15) to the right side axle of the Front Post (13). EU150 Hybrid Elliptical Upright Bike...
-
Page 12: Carriage Bolt
3. Attach the Left Pedal (9) onto the Left Pedal Tube (11), secure using two Carriage Bolts (44),two Washers (41) and two Nylon Nuts (42). 4. Repeat the procedure for the Right Pedal Tube (12) & Right Pedal (10). EU150 Hybrid Elliptical Upright Bike... - Page 13 5. Screw off the Quick Release Knob (57) from the Main Frame (1), insert the Seat Post (20) to the Main Frame (1). Line up the holes and secure seat in position with Quick Release Knob (57). The correct height for seat can be adjusted after the upright elliptical is fully assembled. EU150 Hybrid Elliptical Upright Bike ...
- Page 14 1. Connect the Left Top Handlebar (16) to the Left Bottom Handlebar (14). Secure using two Allen Screws (38) and two Carriage Bolts (37). 2. Repeat for the Right Top Handlebar (64) to the Right Bottom Handlebar (15). EU150 Hybrid Elliptical Upright Bike...
- Page 15 1. To listen to an MP3 during your workout, connect the MP3 with the computer (19) by using the audio wire (86) 2. Plug adapter (87) into the power receptacle. EU150 Hybrid Elliptical Upright Bike...
-
Page 16: Operation Of Your Console
Press and hold for four seconds to reset all values to zero when the unit is stopped. Body Fat: Press to have your body fat measurement. Pulse RECOVERY: Press to have the recovery grade of F1 to F6 EU150 Hybrid Elliptical Upright Bike... - Page 17 Note: If no pulse signal input then the computer will show “P” on the PULSE window. If the computer shows “ERR” on the message window, please re-press the PULSE RECOVERY key and please make sure your hands are keeping well on the grips or the chest transmitter is attached well EU150 Hybrid Elliptical Upright Bike...
- Page 18 The monitor will turn on automatically by pressing any key or when you start to pedal. The monitor will shut off automatically if no signal is detected for four minutes and will keep all function values. You may press Start button or start to pedal to have the computer resume. EU150 Hybrid Elliptical Upright Bike...
-
Page 19: Program Operation
Program 14 to 17 is the user setting program. Users are free to create the values in the order of TIME, DISTANCE, CALORIES and the resistance level in 10 columns. The values and profiles will be stored in EU150 Hybrid Elliptical Upright Bike... - Page 20 4. At program 22, the TARGET PULSE will flash and you can press UP or DOWN keys to set your TARGET PULSE between 80 to 180. The default TARGET PULSE is 120. 5. The TIME will flash and you can press UP or DOWN keys to set your exercise TIME. Press EU150 Hybrid Elliptical Upright Bike...
- Page 21 Then press the START/STOP key again to begin body fat measurement. 8. After finishing your measurement, the computer will show the values of FAT PERCENT on the LCD display. 9. Press START/STOP key to begin exercise. EU150 Hybrid Elliptical Upright Bike...
- Page 22 EU150 Hybrid Elliptical Upright Bike...
- Page 23 EU150 Hybrid Elliptical Upright Bike...
- Page 24 HOW TO MOVE THE EU150 To move the Hybrid Bike, grasp the stationary handlebar and pull back on the handle until the Hybrid Bike can be moved on the front wheels.
-
Page 25: Manufacturer's Limited Warranty
Effective August 4, 2016 - Hybrid Elliptical Upright Bike LIMITED WARRANTY XTERRA Fitness Inc. warrants all its home use Hybrid Elliptical Upright Bike parts for a period of time listed below, from the date of retail sale, as determined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. - Page 26 EU150 Hybrid Elliptical Upright Bike...
- Page 27 EU150 Hybrid Elliptical Upright Bike...
- Page 28 3000 Nestle Road Jonesboro, AR 72401 - Phone:870-333-5500 - Fax:870-935-7611 www.xterrafitness.com ©2016 All Rights Reserved. EU150 Owner’s Manual EU150 Hybrid Elliptical Upright Bike...
