Summary of Contents for PR electronics PRetrans 6334

  • Page 1 Isolation Galvanic isolators for analogue and digital signals as well as HART ® signals. A wide product range with both loop-powered and universal isolators featuring linearisation, inversion, and scaling of output signals. Displays Programmable displays with a wide se- lection of inputs and outputs for display of temperature, volume, weight, etc.
  • Page 2 2-TRÅDS PROGRAMMERBAR TRANSMITTER PRetrans 6334 Indholdsfortegnelse Sikkerhedsinstruktion ............Overensstemmelseserklæring ..........Anvendelse ................. Teknisk karakteristik ............Montage / installation ............Applikationer ..............Bestillingsskema ..............Elektriske specifikationer ........... Tilslutninger ................ 10 Blokdiagram ............... 11 Programmering ..............12...
  • Page 3 • Reparation: Type: 6334 Reparation af modulet må kun foretages af PR electronics A/S. Navn: 2-tråds programmerbar transmitter er i overensstemmelse med følgende direktiver og standarder: EMC-direktivet 2004/108/EF og senere tilføjelser EN 61326 Denne erklæring er udgivet i overensstemmelse med EMC-direktivets paragraf...
  • Page 5 Basisværdier Basis- Temperatur- Indgangstype nøjagtighed koefficient ≤ ±10 µV ≤ ±1 µV/°C Volt TC-type: ≤ ±1°C ≤ ±0,05°C/°C E, J, K, L, N, T, U TC-type: B, R, S, ≤ ±2°C ≤ ±0,2°C/°C W3, W5, LR EMC-immunitetspåvirkning ......... < ±0,5% af span Udvidet EMC-immunitet: Elektriske specifikationer: NAMUR NE 21, A kriterium, gniststøj ....
  • Page 6 Koldt loddestedskomp. (CJC) ..... < ±1,0°C GOST R godkendelse: Følerfejlsdetektering ........Ja Standard: VNIIM .......... Cert. no. Ross DK.ME48.V01899 Følerfejlsstrøm: Ex: VNIIFTRI ..........Cert. no. Ross DK.GB06.V00100 under detektering ......... nom. 33 mA ellers ............. 0 mA Overholdte myndighedskrav: Standard: Spændingsindgange: EMC 2004/108/EF Måleområde ..........
  • Page 8: Table Of Contents

    Programmering: 2-WIRE PROGRAMMABLE TRANSMITTER • Loop Link er et batteridrevet kommunikationsinterface, der er nødvendigt for programmering af PRetrans 6334. PRetrans 6334 • Ved programmering henvises til tegningen nedenfor og hjælpefunktionen i PReset programmet. • Ved kommunikation med ikke-installerede moduler må stikkene 11, 12, 13 (kanal 1) og 21, 22, 23 (kanal 2) af monteres, så...
  • Page 9: Safety Instructions

    Type: 6334 • Repair: Name: 2-wire programmable transmitter Repair of the module must be done by PR electronics A/S only. is in conformity with the following directives and standards: EMC directive 2004/108/EC and later amendments EN 61326 This declaration is issued in compliance with article 10, subclause 1 of the EMC directive.
  • Page 10: Application

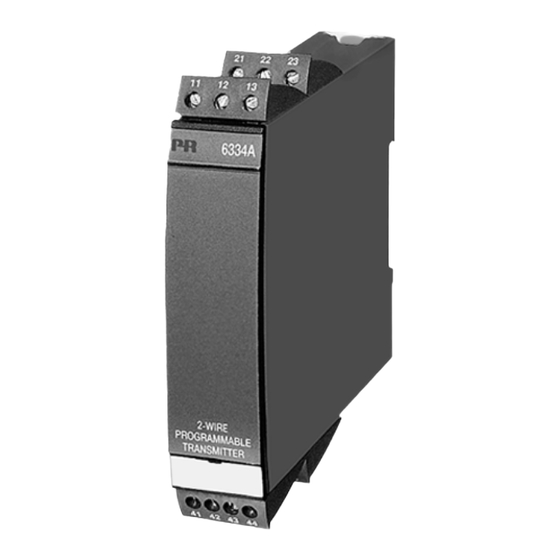

    2-WIRE PROGRAMMABLE TRANSMITTER PRetrans 6334 • TC input • High measurement accuracy • Galvanic isolation • Programmable sensor error value • 1- or 2-channel version Application: • Linearised temperature measurement with TC sensor. • Amplification of bipolar mV signals to a 4...20 mA signal, optionally linearised according to a defined linearisation function.
  • Page 11: Electrical Specifications

    Basic values Basic Temperature Input type accuracy coefficient ≤ ±10 µV ≤ ±1 µV/°C Volt TC type: ≤ ±1°C ≤ ±0.05°C/°C E, J, K, L, N, T, U TC type: B, R, S, ≤ ±2°C ≤ ±0.2°C/°C W3, W5, LR EMC immunity influence ........
  • Page 12 Cold junction compensation ....... < ±1.0°C EEx / I.S. approval: Sensor error detection ........ Yes DEMKO 99ATEX126960 ......II 1 G Sensor error current: EEx ia IIC T1...T6 When detecting ........Nom. 33 mA Max. amb. temperature for T1...T6 ..... 60°C Else ............
  • Page 14: Programming

    Programming: TRANSMETTEUR 2-FILS PROGRAMMABLE (TC) • Loop Link is a battery-powered communications interface that is needed for programming PRetrans 6334. PRetrans 6334 • For programming please refer to the drawing below and the help functions in PReset. • When communicating with non-installed modules, connectors 11, 12, 13...
  • Page 15 Type : 6334 • Réparation : Nom : Transmetteur 2-fils programmable (TC) Seule PR electronics SARL est autorisée à réparer le module. correspond aux directives et normes suivantes : La directive CEM (EMC) 2004/108/CE et les modifications subséquentes EN 61326 Cette déclaration est délivrée en correspondance à...
  • Page 17 Valeurs de base Type Précision Coefficient d’entrée de base de température ≤ ±10 µV ≤ ±1 µV/°C Volt Type TC : ≤ ±1°C ≤ ±0,05°C/°C E, J, K, L, N, T, U Type TC : B, R, S, ≤ ±2°C ≤...
  • Page 18 Compensation de soudure froide ....< ±1,0°C Approbation EEx / S.I. : Détection de rupture sonde ......Oui DEMKO 99ATEX126960 ......II 1 G Courant de sonde : EEx ia IIC T1...T6 Pendant la détection ......Nom. 33 mA Température amb. max. (T1...T6) ....60°C Si non ...........
  • Page 20 2-DRAHT PROGRAMMIERBARER MESSUMFORMER • Loop Link est un kit de programmation permettant de programmer le PRetrans 6334. PRetrans 6334 • Pour le raccordement du Loop Link, veuillez vous reporter au schéma ci-des- sous et à l’aide en ligne du logiciel PReset.
  • Page 21: Sicherheitsanweisung

    Standards des Gebiets bekannt sind, vorgenommen werden. hiermit für das folgende Produkt: • Reparatur: Typ: 6334 Reparatur des Moduls muss nur von PR electronics A/S vorgenommen Name: 2-Draht Programmierbarer Messumformer werden. die Konformität mit folgenden Richtlinien und Normen: EMV Richtlinien 2004/108/EG und nachfolgende Änderungen EN 61326 Diese Erklärung ist in Übereinstimmung mit Artikel 10, Unterklausel 1 der EMV...
  • Page 22: Verwendung

    2-DRAHT PROGRAMMIERBARER MESSUMFORMER PRetrans 6334 • Eingang für TE • Hohe Messgenauigkeit • Galvanische Trennung • Programmierbare Sensorfehlanzeige • 1- oder 2-kanalige Ausführung Verwendung: • Linearisierte Temperaturmessung mit Thermoelementsensor. • Verstärkung von bipolaren mV-Signalen, eventuell nach definierter Linearisierungsfunktion, zu einem 4...20 mA Signal linearisiert.
  • Page 23: Elektrische Daten

    Grundwerte Grund- Temperatur- Eingangsart genauigkeit koeffizent ≤ ±10 µV ≤ ±1 µV/°C Volt TE-Typ: ≤ ±1°C ≤ ±0,05°C/°C E, J, K, L, N, T, U TE-Typ: B, R, S, ≤ ±2°C ≤ ±0,2°C/°C W3, W5, LR EMV-Immunitätswirkung ........< ±0,5% d. Messsp. Erweiterte EMV-Immunität: Elektrische Daten: NAMUR NE 21, A Kriterium, Burst ......
  • Page 24 Vergleichstellenkompensation (CJC) ..< ±1,0°C EEx- / I.S.-Zulassung: Fühlerfehlererkennung ........ Ja DEMKO 99ATEX126960 ......II 1 G Fühlerfehlerstrom: EEx ia IIC T1...T6 Bei Erkennung ........nom. 33 mA Max. Umgebungstemp. für T1...T6 ..... 60°C sonst ............. 0 mA Anwendungsbereich in zone ....... 0, 1 oder 2 Spannungseingänge: Messbereich ..........
  • Page 26: Programmierung

    Programmierung: • Loop Link ist eine batteriegespeiste Schnittstelle zur Programmierung des PRetrans 6334. • Bezüglich Programmierung verweisen wir auf die nachfolgende Zeichnung und die “Hilfe”-Funktion im PReset-Programm. • Bei der Kommunikation mit Modulen, die nicht installiert sind, ist es notwendig...
