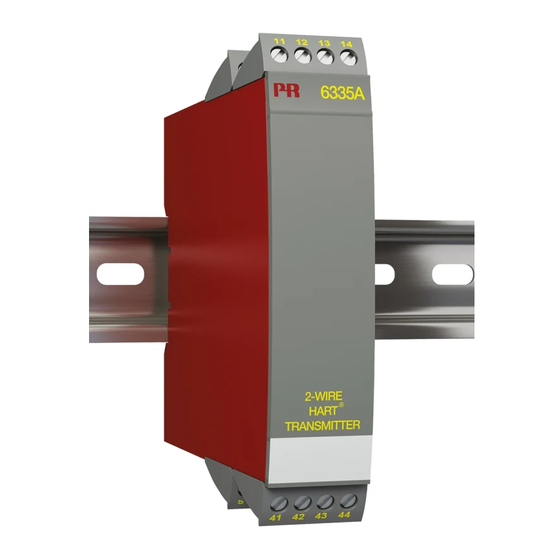

PR electronics 6335 Manual

2-wire hart 6335v110-uk
Hide thumbs Also See for 6335:
Table of Contents

Advertisement

Quick Links

6 3 3 5
®
2 - W i r e H A R T
T r a n s m i t t e r
N o . 6 3 3 5 V 1 1 0 - U K
F r o m s e r . n o . 1 0 0 9 2 4 0 0 0
S I G N A L S T H E B E S T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6335 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PR electronics 6335

Summary of Contents for PR electronics 6335

  • Page 1 6 3 3 5 ® 2 - W i r e H A R T T r a n s m i t t e r N o . 6 3 3 5 V 1 1 0 - U K F r o m s e r .
  • Page 2 PR electronics A/S tilbyder et bredt program af analoge og digitale signalbehandlingsmoduler til industriel automation. Programmet består af Isolatorer, Displays, Ex-barrierer, Temperaturtransmittere, Universaltransmittere mfl. Vi har modulerne, du kan stole på i selv barske miljøer med elektrisk støj, vibrationer og temperaturud- sving, og alle produkter opfylder de strengeste internationale stan- darder.

  • Page 3: Table Of Contents

    CoNTENTS EC declaration of conformity ..........Application ................. Technical characteristics ............ Mounting / installation ............Applications ................ Order: 6335 ................ Electrical specifications ............Connections ............... Block diagram ..............11 Programming ..............12 Connection of transmitters in multidrop mode ....14 Appendix ................

  • Page 4: Ec Declaration Of Conformity

    EC DECLARATIoN oF CoNFoRMITy As manufacturer PR electronics A/S Lerbakken 10 DK-8410 Rønde hereby declares that the following product: Type: 6335 ® Name: 2-wire HART transmitter is in conformity with the following directives and standards: The EMC Directive 2004/108/EC and later amendments...

  • Page 5: Application

    ® 2-WIRE HART TRANSMITTER PRETRANS 6335 • RTD, TC, Ohm, or mV input • Extremely high measurement accuracy • HART ® communication • Galvanic isolation • 1- or 2-channel version Application • Linearised temperature measurement with Pt100...Pt1000, Ni100...Ni1000, TC or sensor. • Difference or average temperature measurement of 2 resistance or TC sensors. • Conversion of linear resistance variation to a standard analogue current signal, for instance from valves or Ohmic level sensors.

  • Page 6: Applications

    APPLICATIoNS 2-wire installation in control room RTD to 4...20 mA 2-wire installation TC to 4...20 mA in control room 2-wire installation Resistance in control room to 4...20 mA 2-wire installation mV to 4...20 mA in control room 2-wire installation Difference or average in control room RTD, TC or mV 335V 1 1 0- UK...

  • Page 7: Order: 6335

    6335 Galvanic Type Version Channels isolation 6335 Standard 1500 VAC Single CSA, FM, Double ATEX & IECEx *NB! Please remember to order CJC connectors type 5910/5910Ex (channel 1) and 5913/5913Ex (channel 2) for TC inputs with an internal CJC.
  • Page 8 Basic values Basic Temperature Input type accuracy coefficient ≤ ±0.1°C ≤ ±0.005°C/°C Pt100 and Pt1000 ≤ ±0.2°C ≤ ±0.005°C/°C Ni100 ≤ ±0.1 Ω ≤ ±5 mΩ / °C Lin. R ≤ ±10 µV ≤ ±0.5 µV / °C Volt TC type: ≤...
  • Page 9 TC inputs: Min. Max. Min. Type temperature temperature span Standard +400°C +1820°C 100°C IEC584 -100°C +1000°C 50°C IEC584 -100°C +1200°C 50°C IEC584 -180°C +1372°C 50°C IEC584 -100°C +900°C 50°C DIN 43710 -180°C +1300°C 50°C IEC584 -50°C +1760°C 100°C IEC584 -50°C +1760°C 100°C IEC584...
  • Page 10 Approvals: EMC 2004/108/EC ........EN 61326-1 GOST R Ex / I.S.: 6335A: ATEX 94/9/EC........KEMA 10ATEX0006 X IECEx ........... KEM 10.0084 X 6335D: ATEX 94/9/EC........KEMA 09ATEX0148 IECEx ........... KEM 10.0084 X FM certificate ........2D5A7 CSA certificate ........1125003 GOST Ex Functional Safety: Hardware assessed for use in SIL applications...

  • Page 11: Connections

    CoNNECTIoNS Inputs: RTD, 2-wire RTD, 3-wire RTD, 4-wire TC, internal CJC 41 42 41 42 41 42 RTD, 2-wire RTD, 3-wire RTD, 4-wire TC, internal CJC 51 52 51 52 51 52 TC, external CJC Resistance, 2-wire Resistance, 3-wire Resistance, 4-wire 41 42 41 42 41 42...
  • Page 12 CoNNECTIoNS Inputs: TC, di erence TC, di erence or average, or average, RTD, di erence or average with internal CJC with external CJC 41 42 41 42 41 42 41 42 TC, di erence TC, di erence or average, or average, RTD, di erence or average with internal CJC...

  • Page 13: Block Diagram

    BLoCK DIAGRAM Ex circuit, only 6335D 63 3 5 V 1 1 0 - UK...

  • Page 14: Programming

    PRoGRAMMING PRetrans 6335 can be configured in the following 3 ways: 1. With PR electronics A/S’ communications interface Loop Link and PReset PC configuration software. ® 2. With a HART modem and PReset PC configuration software. ® 3. With a HART communicator with PR electronics A/S’ DDL driver. 1: Loop Link For programming please refer to the drawing below and the help functions in PReset.
  • Page 15 For programming please refer to the drawing below. To get access to product- ® specific commands, the HART communicator must be loaded with the ® PR electronics A/S DDL driver. This can be ordered either at the HART Communica tion Foundation or PR electronics A/S. Receiving Safe area area...

  • Page 16: Connection Of Transmitters In Multidrop Mode

    CoNNECTIoN oF TRANSMITTERS IN MULTIDRoP MoDE ® • The HART communicator or a PC modem can be connected accross AB or PRetrans PRetrans PRetrans 6335 6335 6335 Power supply Max. 15 channels > 250 ohm, < 1100 ohm load • The outputs of max. 15 transmitters can be conected in parallel for a digital ®...

  • Page 17: Appendix

    APPENDIX ATEX INSTALLATIoN DRAWING - 6335A IECEX INSTALLATIoN DRAWING - 6335A ATEX INSTALLATIoN DRAWING - 6335D IECEX INSTALLATIoN DRAWING - 6335D FM INSTALLATIoN DRAWING No. 6335QF01 CSA INSTALLATIoN DRAWING No. 6335QC02 63 3 5 V 1 1 0 - UK...
  • Page 18 6335QA02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM ATEX Installation drawing For safe installation of 6335A, 6336A or 6337A the following must be observed. The module shall only be Installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
  • Page 19 6335QA02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Special conditions for safe use. Type of protection Ex ic IIC Gc: The transmitter shall be installed in an enclosure that provides a degree of protection of at least IP54 according to EN60529. Type of protection Ex ic IIIC Dc: The transmitter shall be installed in an enclosure providing a degree of protection of at least IP6X according to EN60529.
  • Page 20 6335QI02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM IECEx Installation drawing For safe installation of 6335A, 6336A or 6337A the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
  • Page 21 6335QI02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Installation notes. Type of protection Ex ic IIC Gc or Ex nA IIC Gc The transmitter shall be installed in an enclosure that provides a degree of protection of at least IP54 according to IEC60529. Type of protection Ex ia IIIC Da: The transmitter shall be installed in an enclosure that provides a degree of protection of at least IP6X according to IEC60529.
  • Page 22 6335QA01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM ATEX Installation drawing For safe installation of 6335D, 6336D or 6337D the following must be observed. The module shall only be Installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
  • Page 23 6335QA01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Installation notes The sensor circuit is not infallibly galvanic isolated from the supply output circuit. However, the galvanic isolation between the circuits is capable of withstanding a test voltage of 500Vac during 1 minute.
  • Page 24 6335QI01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM IECEx Installation drawing For safe installation of 6335D, 6336D or 6337D the following must be observed. The module shall only be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.
  • Page 25 6335QI01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM Installation notes The sensor circuit is not infallibly galvanic isolated from the supply output circuit. However, the galvanic isolation between the circuits is capable of withstanding a test voltage of 500Vac during 1 minute. For installalation in dust the following instructions apply: The transmitter shall be mounted in a metal enclosure that is providing a degree of protection of at least IP6X according to IEC 60529.The surface temperature of the enclosure is equal to...

  • Page 26: Fm Installation Drawing - 6335D

    6335QF01 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM FM Installation drawing Hazardous (Classified ) Location Non Hazardous Location T6: -40 ≤ Ta ≤ 60ºC Class I, Division 1, Group A,B,C,D Class I, Zone 0, IIC Terminal: 41,42,43,44 Uo: 9.6 VDC Io: 28 mA Po: 67 mW Lo: 35 mH Terminal:...

  • Page 27: Csa Installation Drawing - 6335D

    6335QC02 LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM CSA Installation drawing Hazardous (Classified ) Location Non Hazardous Location T6: -40 ≤ Ta ≤ 60ºC Class I, Division 1, Group A,B,C,D Class I, Zone 0, IIC Terminal: 41,42,43,44 Uo: 9.6 VDC Io: 28 mA Po: 67 mW Terminal: Lo: 35 mH...
  • Page 28 Displays Programmable displays with a wide selection of inputs and outputs for display of temperature, volume and weight, etc. Feature linearisation, scaling, and difference measurement functions for programming via PReset software. Ex interfaces Interfaces for analogue and digital signals as well as HART signals between sensors / I/P converters ®...
  • Page 29  www.prelectronics.se  sales@prelectronics.se  www.prelectronics.co.uk  sales@prelectronics.co.uk  www.prelectronics.com  sales@prelectronics.com  www.prelectronics.cn  sales@prelectronics.cn Head office Denmark www.prelectronics.com PR electronics A/S sales@prelectronics.dk Lerbakken 10 tel. +45 86 37 26 77 DK-8410 Rønde fax +45 86 37 30 85...
