Technical Information
Product installation
36
JS6000 Joystick Base

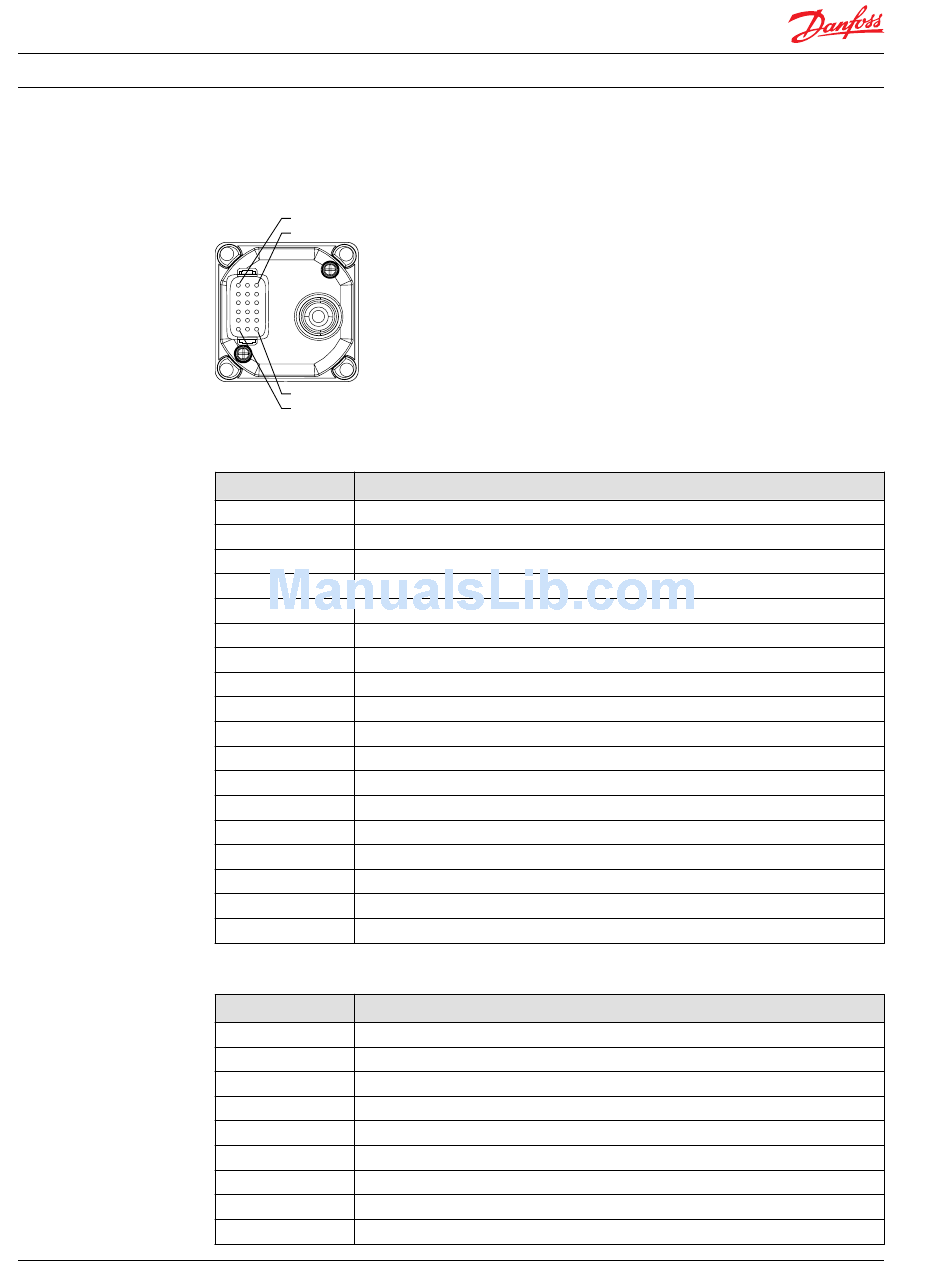

CAN+ and PWM output connector pin assignments

Pin location
Pin 13
Pin 1
Pin 6
Pin 18
2457
CAN+ output connector pinout and wiring information
Pin
CAN output
1
Ground -
2
Power +
3
CAN high
4
CAN low
5
CAN shield
6
Operator present/DIN11
7
Sensor ground -
8
5 Vdc sensor power +
9
AIN1/DIN7
10
AIN2/DIN8
11
AIN3/DIN9
12
AIN4/DIN10
13
DIN1
14
DIN2
15
DIN3
16
DIN4
17
DIN5
18
DIN6
PWM output connector pinout and wiring information
Pin
CAN output
1
Ground -
2
Power +
3
CAN high
4
CAN low
5
PWM Valve Out 1 +
6
PWM Valve Out 1 -
7
PWM Valve Out 2 +
8
PWM Valve Out 2 -
9
AIN / CAN Shield
520L0760 • Rev 1102 • November 2015
