Page 1: User Manual
V5412-A7 SERIES INDOOR DAY/NIGHT MINIDOME CAMERA User Manual... -
Page 2: Table Of Contents
CONTENTS 1. DESCRIPTION .................... 1 2. MAIN FEATURES..................2 3. INSTALLATION..................3 3.1 MOUNTING PROCESS ................3 3.2 HANDLING PRECAUTIONS..............6 3.3 INSTALLATION PRECAUTIONS ............6 4. MENU SETTINGS..................7 4.1 LENS......................11 4.2 SHUTTER/AGC ..................12 4.3 PICTURE ADJUSTMENT..............13 4.3.1 MIRROR .................. - Page 3 4.12 ATR ......................22 4.13 SYNC MODE ..................22 4.14 CAMERA RESET.................. 22 APPENDIX I SPECIFICATIONS..............23 APPENDIX II CABLE DIAMETER CALCULATION AND LIGHTNING & SURGE PROTECTION ........... 25...
-
Page 4: Description

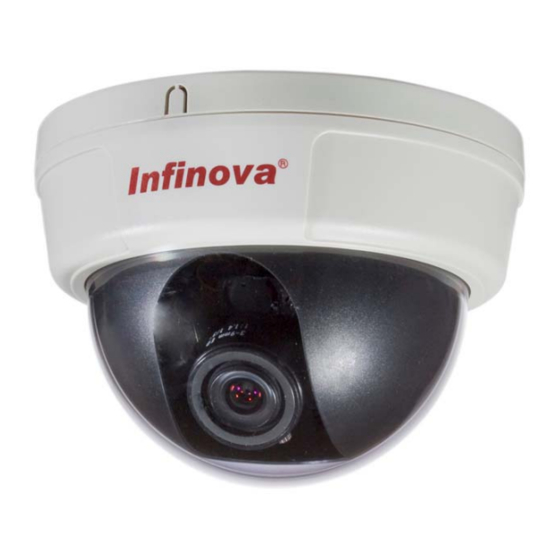

1. DESCRIPTION Thank you very much for purchasing our product. Infinova’s V5412-A7 series indoor day/night fixed minidome cameras feature a high resolution 1/3" SONY Exview HAD II CCD sensor. Advanced Effio Digital Signal Processing (DSP) provides 700 TV lines of resolution, excellent... -
Page 5: Main Features
2. MAIN FEATURES 1/3" SONY Exview HAD II CCD sensor High resolution up to 700TVL IR-Cut Removable (ICR) Filter for Day/Night switching Compact structure, elegant design, easy to install OSD menu in multiple languages 2D digital noise reduction, high S/N ratio, clear image Highlight Compensation (HLC) Motion detection Privacy mask... -
Page 6: Installation
3. INSTALLATION 3.1 Mounting Process STEP 1: Secure Dome’s Adapter in the desired ceiling position with the 3 fixed screws as shown in Figure 1. Figure 1 The adapter mounting holes are as shown in Figure 2: (Unit: mm) 120° 3- Ø4.40 Ø106.00 120°... - Page 7 Figure 3 Notes: The mini-dome camera supports sync system of INT/L.L., which can be set by the DIP switch on the back panel of the mini-dome camera. STEP 3: The vertical angle can be adjusted by loosening the screws as shown in Figure 4 and by turning the Camera Case vertically.
- Page 8 bracket in Figure 5 and by turning the Camera Platform horizontally. Figure 5 STEP 5: Then you can adjust the parameters in the OSD menu to set the desired video quality according to your surveillance requirements. The detailed instructions are specified in Chapter IV. STEP 6: Place the Dome bubble over the Camera and tighten it by turning it to the right.
-
Page 9: Handling Precautions
3.2 Handling Precautions 1. Never let liquid of any kind flow into this unit. 2. Do not directly touch the CCD element. If it is necessary to clean the element, use a soft cloth moistened with alcohol to wipe off the dust. 3. -
Page 10: Menu Settings
4. MENU SETTINGS Menu Submenu TYPE MODE AUTO/OPEN/CLOSE AUTO LENS SPEED 000~255 MANUAL HIGH LUMINANCE AUTO IRIS / SHUT+AUTO MODE IRIS BRIGHTNESS 000~255 AUTO LOW LUMINANCE SHUTTER/AGC MODE AGC, OFF BRIGHTNESS ×0.25, ×0.50, ×0.75, ×1.00 MODE SHUT +AGC PAL: 1/50~1/100,000; SHUT MANUAL NTSC: 1/60~1/100,000... - Page 11 Menu Submenu CHINESE/ LANGUAGE ENGLISH/ JAPANESE IMPULSE OFF/ON DELAY CNT 000~255 AUTO DAY→NIGHT 000~255 DAY/NIGHT 000~255 NIGHT→DAY COLOR OFF/ON IMPULSE BACKLIGHT DETECT 000~127 SENSE BLOCK DISP OFF/ON/ENABLE MONITOR OFF/ON AREA AREA SEL 1/4~4/4 MOTION DET PAL: 000~288; NTSC: 000~244 PAL: 000~288; BOTTOM NTSC: 000~244 PAL: 000~468;...
- Page 12 Menu Submenu TRANSP 0.00-1.00 (4-level) MOSAIC OFF/ON LUMINANCE LOW/MID/HIGH LOW/MID LOW/ MID/ CONTRAST MID HIGH/HIGH SYNC CAMERA RESET Camera Menu Notes: 1. The lens built in the camera is DC driven. 2. Sync system can be set to INT or LL by the DIP switch on the back cover of the camera.
- Page 13 1. Press the button, and the MAIN MENU will appear. 2. Press the button UP/DOWN to move through the items or LEFT/RIGHT to change the selected item’s value. 3. If “ ” is available in an item's value, press the OSD button to enter the submenu and repeat the previous operations to set it.
-
Page 14: Lens
9. To save the modified items, you have to click SAVE ALL before power-off; otherwise, the settings will be restored to the previous status after the power is back; also, you have to click SAVE ALL in case of resetting. 4.1 LENS Function: to set lens type. -
Page 15: Shutter/Agc
4.2 SHUTTER/AGC Function: to set the shutter/AGC parameters. Options: Auto , Manual . 1) Auto : if set to Auto , enter the submenu, as shown in the figure below: AUTO SETUP HIGH LUMINANCE MODE SHUT+AUTO IRIS BRIGHTNESS LOW LUMINANCE MODE BRIGHTNESS x0.50... -
Page 16: Picture Adjustment
Mode: SHUT+AGC; Shutter: 1/50s~1/100,000s (PAL), 8-level adjustable; 1/60s~1/100,000s (NTSC), 8-level adjustable. The shutter speed gets faster with the decrease of value, while the exposure time gets shorter and the video becomes darker. On the contrary, the shutter speed gets slower with the increase of value, while the exposure time gets longer and the video becomes brighter. -
Page 17: Mirror
4.3.1 MIRROR Function: to set the image mirror function. Options: OFF/ON. Default as: OFF. If enabled, horizontal mirror can be realized. 4.3.2 BRIGHTNESS Function: to adjust the brightness. Options: 000-255. The video becomes brighter as the brightness level goes up. 4.3.3 CONTRAST Function: to adjust the contrast. -
Page 18: White Balance
4.4 WHITE BALANCE Function: to set white balance mode to compensate color temperature, further rendering the true color of object. Options: ATW , USER 1 , USER 2 , ANTI CR, MANUAL , PUSH LOCK. 1) ATW : Auto Tracking White Balance mode. The built-in sensor can perceive the current color temperature and automatically process the images with specific arithmetic, so as to render the true color of objects. - Page 19 2) USER 1 B-GAIN: to adjust the blue gain. Options: 000~255. R-GAIN: to adjust the red gain. Options: 000~255. Notes: Settings under USER 2 is similar to that of USER 1. 3) MANUAL Manual WB can effectively help render the true color of images when auto WB fails to do so.
-
Page 20: Camera Id
CAMERA ID SETUP INFINOVA A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0 1 2 3 4 5 6 7 8 9 —！”# $ % & ’... -
Page 21: Language
Camera ID setup: the camera title is displayed in two lines, with a maximum of 26 characters displayed in each line. Character Edit Area: the camera ID allows A~Z, 0~9 and other 28 special characters, as shown in the figure above. CHR1/CHR2: character library 1/2. -
Page 22: Day/Night
4.8 DAY/NIGHT Function: switch over B/W and Color mode; predefine the threshold illumination values and lag time for day/night switching. Options: Auto , Color, B/W . Default as: Auto . 1) Auto : to automatically switch B/W and Color mode as per the light conditions. -
Page 23: Backlight
4.9 BACKLIGHT Function: to set the BLC/HLC function. Options: OFF, BLC, HLC. BLC provides necessary light level compensation for the subject in the foreground when there is a bright light source in the background. HLC blocks the strong spots of light and compensates for the dark area as needed, thus allowing the object to be easily viewed. -
Page 24: Privacy Mask
Notes: The value of LEFT coordinate should be less than that of RIGHT, and TOP less than BOTTOM. The origin of coordinate lies in the upper-left corner of screen. 4.11 PRIVACY MASK Function: to enable/disable privacy mask function. Options: OFF/ON . If set to “ON ”, press the OSD button to enter the submenu. -
Page 25: Atr
4.12 ATR Function: to enable/disable ATR (Adaptive Tone Reproduction). Options: ON /OFF. Defaulted as: OFF. If set to “ON ”, the brightness of videos can be automatically adjusted. For dark area, properly enhance the luminance; for bright area, properly reduce the luminance. -
Page 26: Appendix I Specifications
APPENDIX I SPECIFICATIONS Model V5412-A7 series Image Sensor 1/3" SONY Exview HAD II CCD Video System PAL/NTSC NTSC: 976×494, 480K; PAL: 976×582, Effective Pixels (H × V) 570K Scanning System 2:1 interlace scanning Resolution 700 TVL Day/Night Functionality Color mode: 0.01 lux @ F1.2 (50 IRE, AGC HIGH);... - Page 27 Noise Reduction Sync. System Internal/ Line Lock Video Output 1.0 Vp-p (75 Ohm), BNC connector Power Supply 12VDC/24VAC Power Consumption 4 W (maximum) Operating Temperature 14° F ~ 122° F (-10° C ~ 50° C) Storage Temperature -4° F ~ 140° F (-20° C ~ 60° C) Operating Humidity 0~90% RH (non-condensing) Unit Dimensions (H×Ø)
-
Page 28: Appendix Ii Cable Diameter Calculation And
APPENDIX II CABLE DIAMETER CALCULATION AND LIGHTNING & SURGE PROTECTION Relation between 24VAC Cable Diameter and Transmission Distance In general, the maximum allowable voltage loss rate is 10% for AC-powered devices. The table below shows the relationship between transmission power and maximum transmission distance under a certain specified cable diameter, on condition that the 24VAC voltage loss rate is below 10%. - Page 29 Lightning & Surge Protection The product adopts multi-level anti-lightning and anti-surge technology integrated with gas discharge tube, power resistor and TVS tube. The powerful lightning and surge protection barrier effectively avoids product damage caused by various pulse signals with power below 4kV, including instantaneous lightning, surge and static.
- Page 30 Infinova 51 Stouts Lane, Monmouth Junction, NJ 08852, U.S.A. Tel: 1-888-685-2002 (USA only) 1-732-355-9100 Fax: 1-732-355-9101 sales@infinova.com V1.2 1401...
