- Page 1 V5812IR-A8 Series High Resolution IR Minidome Camera INSTRUCTION MANUAL...
- Page 3 Infinova. Infinova reserves the right to change this manual and the specifications without prior notice. The most recent product specifications and user documentation for all Infinova products are available on our web site www.infinova.com.
- Page 4 Read this manual carefully before installation. This manual should be saved for future use. Important Safety Instructions and Warnings: Electronic devices must be kept away from water, fire or high magnetic radiation. Clean with a dry cloth. Provide adequate ventilation. ...
-
Page 5: Table Of Contents
CONTENTS Chapter I System Introduction ............... 1 1.1 Product Description ................1 1.2 Product Features ..................2 1.3 Product Model ..................2 1.4 Specifications ..................3 1.5 Notice ...................... 5 Chapter II Menu Settings ................6 2.1 Image ...................... 6 2.2 Advanced .................... -
Page 7: Chapter I System Introduction

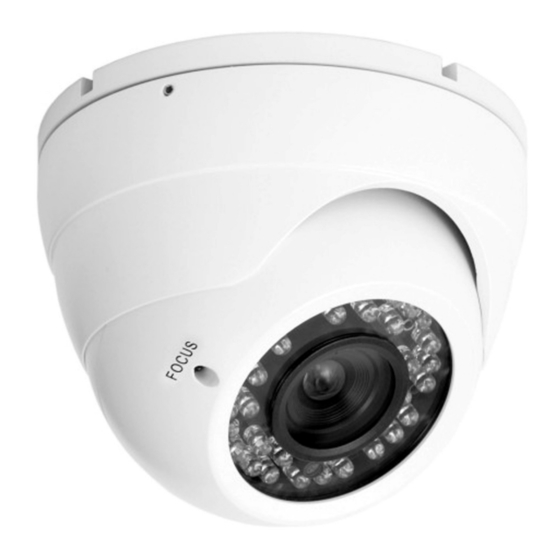

1.1 Product Description Thank you very much for purchasing our product! V5812IR-A8 Series High Resolution IR minidome camera adopts 1/3" progressive scan CMOS sensor. With built-in 2.8~12mm vari-focal lens and high resolution of 800 TV lines, users can acquire better image quality. It also boasts of low illumination, excellent color rendering ability and digital noise reduction function. -
Page 8: Product Features
1.2 Product Features Infinova’s V5812IR-A8 series camera has the following features and functions: 1/3" progressive scan CMOS sensor High Resolution: 800TV lines IR-Cut Removable (ICR) Filter for Day/Night switching 30m IR Range Supports OSD menu display function ... -
Page 9: Specifications
1.4 Specifications V5812IR-A8 Series Model 1/3" CMOS Image Sensor PAL/NTSC Video Format 2:1 interlace scanning Scanning System PAL: 1280×960; Effective Pixels NTSC: 1280×952 (H×W) 800TVL Resolution 50dB S/N Ratio Color mode: 0.01 lux; B/W mode: 0 lux (IR ON) Sensitivity... - Page 10 Internal Sync. System 1.0 Vp-p (75 Ohm) Video Output 12VDC, ±10% Power Supply Power Consumption Operating 14°F~122°F (-10°C~+50°C) Temperature Storage -4°F~140°F (-20°C~+60°C) Temperature Operating 0%-90% RH (non-condensing) Humidity Unit Dimensions 3.48"×4.69" (88.5mm×119mm) (H×Ф) Maximum 20000 hours (When infrared light failure is less than 30%) Unfailure Working Time...
-
Page 11: Notice
1.5 Notice 1. Do not place the camera under strong light for fear of damaging the CMOS chip. 2. Do not directly touch the CMOS element. If it is necessary to clean the element, use a soft cloth moistened with alcohol to wipe off the dust. 3. -
Page 12: Chapter Ii Menu Settings
CHAPTER II MENU SETTINGS Main menu settings are as follows: MAINMENU IMAGE ↲ ADVANCED ↲ DAY&NIGHT EXTERNAL LANGUAGE ENGLISH LOAD DEFAULT SOFT VERSION V2.00.00 SAVE&EXIT EXIT 2.1 Image 3D-DNR ↲ IRIS ↲ EXPOSURE CONTROL ↲ ↲ IMAGE ENHANCE ↲ ZOOM IN RETURN ↲... -
Page 13: Advanced
2.2 Advanced ZONE MASKING ↲ MOTION DETECTION ↲ MIRROR FLIP RETURN ↲ 2.2.1 Zone Masking COLOR MOSAIC AREA NO.1 ↲ AREA NO.2 ↲ AREA NO.3 ↲ AREA NO.4 ↲ AREA NO.5 ↲ AREA NO.6 ↲ AREA NO.7 ↲ AREA NO.8 ↲... -
Page 14: Motion Detection
2.2.2 Motion Detection SENSITIVITY HIGH AREA NO.1 ↲ AREA NO.2 ↲ AREA NO.3 ↲ AREA NO.4 ↲ RETURN ↲ 2.3 Day & Night DAY&NIGHT EXTERNAL【COLOR/B&W/AUTO】 2.4 Language LANGUAGE ENGLISH【中文】 2.5 Load Default LOAD DEFAULT 2.6 Soft Version SOFT VERSION V2.00.00 2.7 Save &... -
Page 15: Exit
2.8 Exit EXIT... -
Page 16: Appendix I Cable Diameter Calculation And Lightning & Surge Protection
APPENDIX I CABLE DIAMETER CALCULATION AND LIGHTNING & SURGE PROTECTION Relation between 24VAC Cable Diameter and Transmission Distance In general, the maximum allowable voltage loss rate is 10% for AC-powered devices. The table below shows the relationship between transmission power and maximum transmission distance under a certain specified cable diameter, on condition that the 24VAC voltage loss rate is below 10%. - Page 17 Lightning & Surge Protection The product adopts multi-level anti-lightning and anti-surge technology integrated with gas discharge tube, power resistor and TVS tube. The powerful lightning and surge protection barrier effectively avoids product damage caused by various pulse signals with power below 4kV, including instantaneous lightning, surge and static.
- Page 20 Infinova 51 Stouts Lane, Monmouth Junction, NJ 08852, U.S.A. Tel: 1-888-685-2002 (USA only) 1-732-355-9100 Fax: 1-732-355-9101 sales@infinova.com V1.0 1512...
