Infinova V5411-A8004ST User Manual

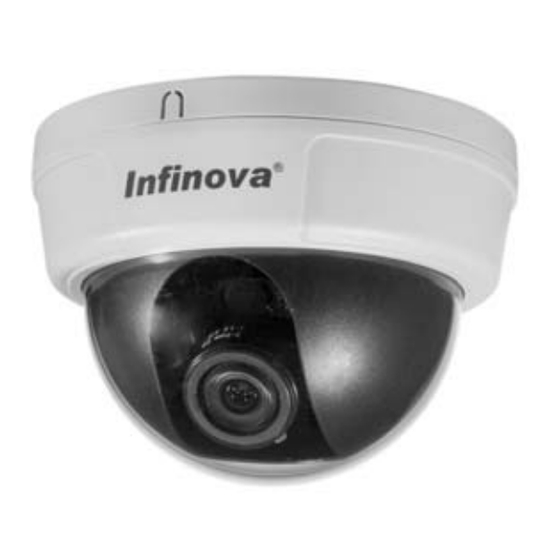

Indoor electronic day/night minidome fixed camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
V5411-A8 SERIES
INDOOR ELECTRONIC DAY/NIGHT
MINIDOME FIXED CAMERA
User Manual
4.12 SYNC MODE ...................................................................................... 23
4.13 DAY/NIGHT ....................................................................................... 23
4.14 CAMERA RESET ............................................................................... 24
Appendix I Specifications .............................................................. 25
APPENDIX II CABLE DIAMETER CALCULATION AND
LIGHTNING & SURGE PROTECTION .................................................. 27
CONTENTS

1. DESCRIPTION ......................................................................................... 1

2. MAIN FEATURES .................................................................................... 3
3. INSTALLATION ....................................................................................... 4
3.1 MOUNTING PROCESS ......................................................................... 4
3.2 HANDLING PRECAUTIONS ................................................................ 7
3.3 INSTALLATION PRECAUTIONS ......................................................... 7
4. MENU SETTINGS .................................................................................... 8
4.1 LENS ..................................................................................................... 12
4.2 SHUTTER/AGC ................................................................................... 13
4.3 PICTURE ADJUSTMENT .................................................................... 15
4.3.1 MIRROR ....................................................................................... 15
4.3.2 BRIGHTNESS .............................................................................. 15
4.3.3 CONTRAST ................................................................................. 16
4.3.4 SHAPRNESS ................................................................................ 16
4.3.5 HUE .............................................................................................. 16
4.3.6 GAIN ............................................................................................ 16
4.4 WHITE BALANCE ............................................................................... 17
4.5 NR ......................................................................................................... 19
4.6 CAMERA ID ......................................................................................... 19
4.7 LANGUAGE ......................................................................................... 20
4.8 BACKLIGHT ........................................................................................ 21
4.9 MOTION DETECTION ........................................................................ 21
4.10 PRIVACY MASK ................................................................................ 22
4.11 ATR ..................................................................................................... 23
1. DESCRIPTION
Thank you very much for purchasing our product.
Infinova's V5411-A8 series indoor electronic day/night fixed minidome
cameras feature a high resolution 1/3" SONY Exview HAD II CCD sensor.
Advanced Effio Digital Signal Processing (DSP) provides 700 TV lines of
resolution, excellent low light performance, and superior color rendering
ability and digital noise reduction function, which ensures high-quality images
even under challenging lighting environments.
V5411-A8 series provides privacy mask which effectively protects certain
private areas from being seen and motion detection which provides higher
security for your surveillance.
V5411-A8 series offers user-friendly OSD menu, easy to adjust the video
parameters. In addition, its elegant design and compact structure makes it an
ideal surveillance solution for shopping malls, banks, office buildings, parking
lots, city streets and other applications.
This manual is for the following models:
V5411-A8004ST
Analog minidome camera, 2-axis, Indoor,
1/3 inch CCD, Electronic day/night, 700TVL, NTSC,
12VDC/24VAC, Surface mount, 2.8mm fixed lens
V5411-A8014ST
Analog minidome camera, 2-axis, Indoor,
1/3 inch CCD, Electronic day/night, 700TVL, PAL,
12VDC/24VAC, Surface mount, 2.8mm fixed lens
V5411-A8004SU
Analog minidome camera, 2-axis, Indoor,
1/3 inch CCD, Electronic day/night, 700TVL, NTSC,
12VDC/24VAC, Surface mount, 3.6mm fixed lens
V5411-A8014SU
Analog minidome camera, 2-axis, Indoor,
1/3 inch CCD, Electronic day/night, 700TVL, PAL,
12VDC/24VAC, Surface mount, 3.6mm fixed lens
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V5411-A8004ST and is the answer not in the manual?

Questions and answers

Related Manuals for Infinova V5411-A8004ST

Summary of Contents for Infinova V5411-A8004ST

  • Page 1 4.13 DAY/NIGHT ..................23 Thank you very much for purchasing our product. 4.14 CAMERA RESET ................24 Infinova's V5411-A8 series indoor electronic day/night fixed minidome cameras feature a high resolution 1/3" SONY Exview HAD II CCD sensor. APPENDIX I SPECIFICATIONS .............. 25...

  • Page 2: Main Features

    V5411-A8004SX Analog minidome camera, 2-axis, Indoor, 2. MAIN FEATURES 1/3 inch CCD, Electronic day/night, 700TVL, NTSC,  1/3" SONY Exview HAD II CCD sensor 12VDC/24VAC, Surface mount, 8mm fixed lens  Resolution: 700TVL V5411-A8014SX Analog minidome camera, 2-axis, Indoor,  Electronic day/night functionality 1/3 inch CCD, Electronic day/night, 700TVL, PAL, ...

  • Page 3: Menu Settings

    bracket in Figure 5 and by turning the Camera Platform horizontally. 3.2 Handling Precautions 1. Never let liquid of any kind flow into this unit. 2. Do not directly touch the CCD element. If it is necessary to clean the element, use a soft cloth moistened with alcohol to wipe off the dust.
  • Page 4 Menu Submenu LUMINANCE LOW/MID/HIGH LOW/MID LOW/ MID/ CONTRAST MID HIGH/HIGH SYNC COLOR IMPULSE OFF/ON DOWN DELAY CNT 000~255 DAY→ DAY/NIGHT AUTO 000~255 NIGHT NIGHT→ 000~255 OFF/ON IMPULSE CAMERA RESET Camera Menu Notes: Sync system can be set to INT or LL by the DIP switch on the back panel of the camera module.
  • Page 5 Shutter: 1/50s~1/100,000s (PAL), 8-level adjustable; 1/60s~1/100,000s (NTSC), 8-level adjustable. The shutter speed gets faster with the decrease of value, while the exposure time gets shorter and the video becomes darker. On the contrary, the shutter speed gets slower with the increase of value, while the exposure time gets longer and the video becomes brighter.
  • Page 6 CAMERA ID SETUP INFINOVA A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0 1 2 3 4 5 6 7 8 9 —！”# $ % & ’...

  • Page 7: Appendix I Specifications

    Notes: The value of LEFT coordinate should be less than that of RIGHT, and 4.11 ATR TOP less than BOTTOM. The origin of coordinate lies in the upper-left corner Function: to enable/disable ATR (Adaptive Tone Reproduction). of screen. Options: ON /OFF. Defaulted as: OFF. If set to “ON ”, the brightness of videos can be automatically adjusted.
  • Page 8  The system should perform equipotential grounding by streaming, shielding, clamping and earthing. Infinova The grounding device must meet anti-interference and electric safety requirements. There should be no short-circuiting or hybrid junction between the device and the strong grid. Make sure there’s a 51 Stouts Lane, reliable grounding system, with grounding resistance below 4Ω...

This manual is also suitable for:

V5411-a8004suV5411-a8014stV5411-a8014suV5411-a8004sxV5411-a8014sx
