V1700N-NE2 Series
IP PTZ Dome Operation Manual

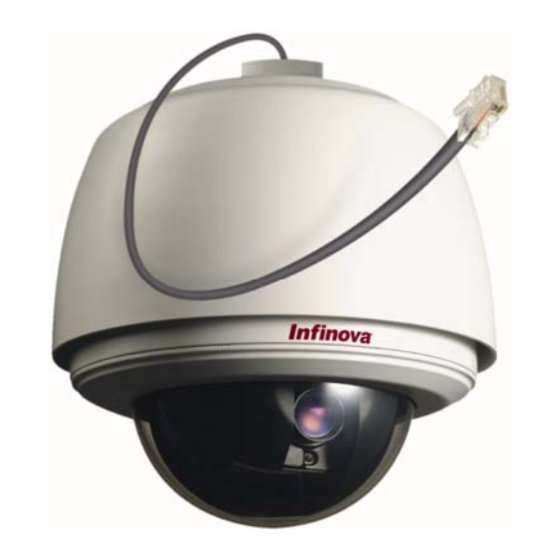

This manual mainly addresses the operation and programming of Infinova V1700N-NE2 series IP domes.
Based on network technology, V1700N-NE2 series IP domes could easily realize network digital video
transmission and network control function, and provide professional remote video services. They provide
high-reliable, cost-effective solutions to various applications.
Advertisement
Table of Contents
Related Manuals for Infinova V1700N-NE2 Series
Summary of Contents for Infinova V1700N-NE2 Series
- Page 1 V1700N-NE2 Series IP PTZ Dome Operation Manual This manual mainly addresses the operation and programming of Infinova V1700N-NE2 series IP domes. Based on network technology, V1700N-NE2 series IP domes could easily realize network digital video transmission and network control function, and provide professional remote video services. They provide...
-
Page 3: Copyright Statement
This device must accept any interference received, including interference that may cause undesired operations. The V1700N-NE2 series IP Domes have been tested and found to comply with the limits for a Class A digital device, pursuant to the FCC rules. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 4 Read this manual carefully before installation. This manual should be saved for future use. Important Safety Instructions and Warnings: Electronic devices must be kept away from water, fire or high magnetic radiation. Clean with a dry cloth. Provide adequate ventilation. Unplug the power supply when the device is not to be used for an extended period of time.
-
Page 5: Table Of Contents
Table of Contents Chapter I System Introduction..........1 4.3 Stream Type..............11 1.1 Product Description............1 4.4 Motion Detection ............. 11 1.2 Product Features..............1 4.5 Privacy mask ..............12 1.3 Product Model..............1 4.6 Color Setting..............12 1.4 Product Specifications ............1 4.7 Image Quality ..............12 1.5 Notice................ -
Page 7: Chapter I System Introduction
Infinova V1700N-NE2 series IP domes. Extensive Application Fields Infinova's V1700N-NE2 series IP PTZ dome camera, leading in the Based on the encrypted TCP/IP protocol transmission, Infinova industry, uses advanced 1/4" CCD camera, combined with an up to... -
Page 8: Notice
Optional resolution: Electrical Major stream: NTSC: 4CIF (704×480)/2CIF (704×240)/ Input voltage: 12VDC or 24VAC CIF (352×240)/QCIF(176×120); Power consumption Indoor: 12VDC: 21W；24VAC: 28W PAL: 4CIF (704×576)/2CIF(704×288)/ Outdoor (w/heater): 12VDC: 27W；24VAC: 43W CIF (352×288)/QCIF (176×144) Minor stream NTSC: CIF (352×240)/QCIF (176×120); Power surge protection: PAL: CIF (352×288)/QCIF(176×144) Environmental Max frame rate:... -
Page 9: Chapter Ii Ie Browser Setting
The preparation of IE image browsing comes to and end. Download OCX First, user has to log in with the Infinova super ID and password 2.2 Set IE Browser (For more information, please refer to Chapter 3.1 Login). After... -
Page 10: Chapter Iii Basic Function Operation
If this is the first time to run the software, you should enter the default super username and password. There are two default IDs for selection:(1)INFINOVA (password: INFINOVA); (2) Administrator (password: Infinova). Click ‘OK’ button to log on. In the logging in process, to re-input the username and password, please click “Cancel”. -
Page 11: System Information
The system supports at most 8 users. 3.3 Account Settings There are 2 default super users: one is INFINOVA (password: INFINOVA), the other is Administrator (password: Infinova). Super users can add or delete common users and alter the password of itself and other common users. -
Page 12: Network Settings
1. Add Users stands for super user, while stands for common user. Click “ ”, enter the interface of “Add a User”. Figure 3-12 Click “OK” button, the selected user would be deleted and the Figure 3-8. Add User account list would be automatically updated. Enter the desired User Name and Password (Special 3. -
Page 13: Mac Address
DHCP dynamic distributed. If “manually configured” Figure 3-19 is selected, relevant settings can be set in the following fields. V1700N-NE2 series dome has the function of alarm associated with Unit IP address: used to set the IP address of the domes. FTP upload. -
Page 14: Time Settings
If user selects “mail” in “Alarm Settings” interface, system will Figure 3-22 send mail according to SMTP settings. V1700N-NE2 series IP domes support 2 alarm inputs, and users can 3.5 Time Settings select the state of the alarm inputs as grounding or open. -
Page 15: Ptz Settings
Figure 3-26 3.10.1 Software Update Free software update is provided for V1700N-NE2 series IP domes, and this update service can reduce system maintenance budget. You can download the latest software from the Internet. Figure 3-24 Follow the steps below to update software: It can display 30 logs on a page. -
Page 16: Factory Settings
Click “OK”, system starts to reset to the factory default. It takes about 15 seconds to undertake this process, when finishing, the figure below would appear: Figure 3-28 If the type of updating file is wrong, the following information will come out: Figure 3-32 Click “OK”... -
Page 17: Chapter Iv H.264 Video And Alarm Settings
Users can select player to play video: If there is any motion detection alarm in the preset area, the alarm Infinova Player: Choose Infinova player to play video. icon on the webpage will turn red . If it’s normal, the icon is Quick Time: Choose Quicktime Player to play video. -
Page 18: Privacy Mask
Figure 4-5 Figure 4-7 V1700N-NE2 series domes support privacy mask function. If there is certain location within the surveillance area where operators are As shown in the figure above, there are 5 levels available: Highest, not allowed to see, and thus, PRIVACY MASK can be applied. -
Page 19: Qos Setting
then the setting will appear on the screen at designated location. 4.11 I/P Rate Click “I/P Rate” button in the navigation bar to display the 4.9 Qos Setting following interface. Click “QoS” button, and network Qos setting interface will be shown as follows: Figure 4-11 Figure 4-9... -
Page 20: Audio
The variable rate can adjust the bandwidth that it occupies Note: automatically according to the complexity of image, because the When Infinova Player is selected, set the In/Out button to complexity of real video sequence keeps changing, details, speed, enable/disable the audio in/out function. When QuickTime Player is... -
Page 21: Chapter V M-Jpeg Video Setting
As shown above: Chapter V M-JPEG Video Setting The frame rate can be chosen from: 2, 4, 5, 10, 15. User can also click “M-JPEG” button to enter “M-JPEG” video (as shown in figure 3-4). Super users can set such settings via the 5.4 Snapshot buttons on the left as resolution, image quality, frame rate, snapshot and so on, while common users can only view resolution and image... -
Page 22: Chapter Vi Menu Settings
Note: When the address and baud rate is set via DIP switch, the ID Chapter VI Menu Settings and baud rate displayed on the menu are unchangeable. Note: The common users have no such settings. There are two ways for users to enter menu: 1.2 DOME TITLE SET 1. - Page 23 For 28X domes, WDR is unadjustable. 3.6 MOTOR SPEED SET Speed level 2.6 SPECIAL FUNCTION Set mirror mode Select the running speed of motor, there are HIGH, LOW and Set freeze mode MEDIUM for selection. The default is MEDIUM. Set sharpness Enable/disable NR mode 4.
-
Page 24: Chapter Vii Camera Control
Chapter VII Camera Control 7.2 Lens Function Setting The camera control keyboard is illustrated as below: When the mouse moves on , the button will turn light when clicking it with the mouse, it returns to former status, which Lens Direction means it works. -
Page 25: Speed Adjustment
7.3.1 Speed Adjustment 7.3.4 Setting Autopan and Calling up Autopan Pan Speed: Adjust pan speed of dome. 8 grades are available: the Setting Autopan greater the number is, the faster the speed is. (1) Enter the autopan number in Tilt speed: Adjust tilt speed of dome. 8 grades are available: the (2) Use the direction button to perform a series of pan and tilt and greater the number is, the faster the speed is. -
Page 26: Appendix I Magnetic Ring Filter Instruction
Appendix I Magnetic Ring Filter Instruction To reduce electromagnetic interference that power supply generates, it is necessary to install a magnetic ring filter with the power cable. To install a magnetic ring filter with power supply: Step 1: Open the magnetic ring filter and lead the power cable through. Step 2: Wire the power cable on the magnetic ring filter 3 rounds or more (Make sure the filter can be well closed). -
Page 27: Appendix Ii Questions & Solutions
Appendix II Questions & Solutions The following table describes the symptoms causes, and solutions for the problems. Symptoms Possible Causes Solutions Wrong power connection Reconnect power cable The IP dome does not perform Power supply failure Repair or replace power supply initiation sequence after powering on Power PCB fuse damage Replace the fuse... - Page 28 Infinova 51 Stouts Lane, Monmouth Junction, NJ 08852, U.S.A. Tel: 1-888-685-2002 (USA only) 1-732-355-9100 Fax: 1-732-355-9101 sales@infinova.com V1.2 1206...
