Infinova V6202IR-TA Series Instruction Manual

V6202IR-TA/TX Series

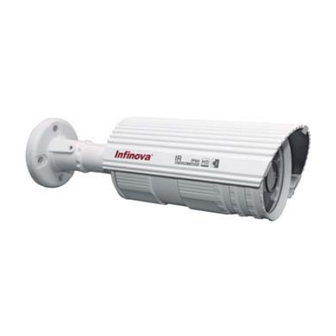

HD 2MP IR IP Camera with Auto Focus
INSTRUCTION MANUAL
Read this manual carefully before installation. This manual
should be saved for future use.
Important Safety Instructions and Warnings:
Electronic devices must be kept away from water, fire or high magnetic

radiation.
Clean with a dry cloth.

Provide adequate ventilation.

Unplug the power supply when the device is not to be used for an extended

period of time.
Only use components and parts recommended by manufacturer.

Position power source and related wires to assure to be kept away from

ground and entrance.
Refer to qualified personnel for all service matters.

Save product packaging to ensure availability of proper shipping containers

for future transportation.
Indicate that the un-insulated components within the product may carry a
voltage harmful to humans.
Indicate operations that should be conducted in strict compliance with
instructions and guidelines contained in this manual.
Warning: To avoid risk of fire and electric shock, keep the product away
from rain and moisture!
Notice
Copyright Statement
This manual may not be reproduced in any form or by any means to create any
derivative such as translation, transformation, or adaptation without the prior
written permission of Infinova.
Infinova reserves the right to change this manual and the specifications without
prior notice. The most recent product specifications and user documentation for
all Infinova products are available on our web site www.infinova.com.
Trademarks
Infinova
® is a trademark of Infinova.
All other trademarks that may appear belong to their respective proprietors.
FCC Warning
The series HD 2MP IR IP cameras comply with the FCC rules.
V6202IR-TA/TX
Operation is subject to the following two conditions:
This device will not cause harmful interference.

This device must accept any interference received, including interference

that may cause undesired operations.
The series HD 2MP IR IP cameras have been tested and found
V6202IR-TA/TX
to comply with the limits for a Class A digital device, pursuant to the FCC rules.
With these rules and regulations being obeyed to maintain the good working
condition of device, the operation is not supposed to be affected by the external
interruptions under certain circumstances. This device is electromagnetic, so all
the installation and application processing along the device has to follow
strictly to the manual or it may hamper the telecommunication around.
Meanwhile, there is no guarantee that interference will not occur in a certain
particular installation situation.
CONTENTS
Chapter I System Introduction .......................................................................... 1
1.1 Product Description ................................................................................... 1
1.2 Product Features ........................................................................................ 1
1.3 System Requirement .................................................................................. 2
1.4 Product Model ........................................................................................... 3
1.5 Specifications ............................................................................................. 4
1.6 Notice ......................................................................................................... 6
Chapter II Installation and Port Introduction ................................................. 7
2.1 Installation Precautions ............................................................................. 7
2.2 Installation Procedure ................................................................................ 7
Chapter III IE Browser Settings ....................................................................... 11
3.1 Equipment Connection ............................................................................. 11
3.2 Software Installation ................................................................................. 11
Chapter IV Basic Function Operation ............................................................ 14
4.1 Live View ................................................................................................. 14
4.2 System ...................................................................................................... 17
4.3 Network Settings ..................................................................................... 23
4.4 Camera Settings ....................................................................................... 32
4.5 Audio & Video Settings ........................................................................... 42
4.6 Alarm Settings ......................................................................................... 51
4.7 Record Management ................................................................................ 53
4.8 Account Settings ...................................................................................... 58
4.9 System Log .............................................................................................. 60
Appendix I Magnetic Ring Filter Instruction ................................................. 62
Appendix II Questions & Solutions ................................................................. 63
Appendix III Cable Diameter Calculation and Lightning & Surge
Protection ............................................................................................................ 64
