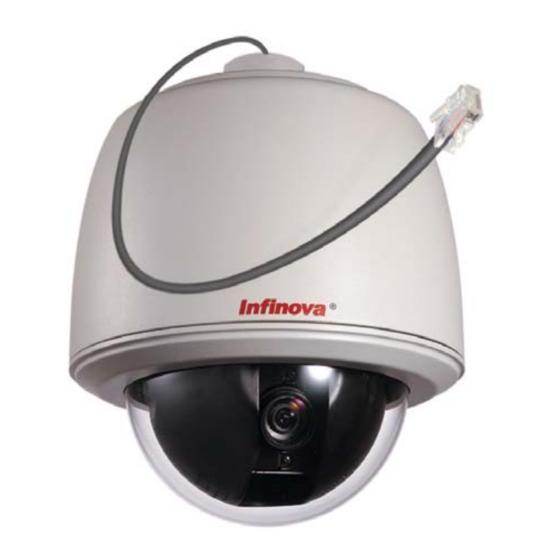

Infinova V1771N series Operation Manual

Megapixel network ptz dome
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
V1771N series
Megapixel Network PTZ Dome
Operation Manual
This manual mainly addresses the operation and programming of Infinova V1771N series 1.3 Megapixel IP
domes.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V1771N series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Infinova V1771N series

Summary of Contents for Infinova V1771N series

  • Page 1 V1771N series Megapixel Network PTZ Dome Operation Manual This manual mainly addresses the operation and programming of Infinova V1771N series 1.3 Megapixel IP domes.

  • Page 3: Copyright Statement

    This device must accept any interference received, including interference that may cause undesired operations. The V1771N series Megapixel network PTZ Domes have been tested and found to comply with the limits for a Class A digital device, pursuant to the FCC rules. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 4 Read this manual carefully before installation. This manual should be saved for future use. Important Safety Instructions and Warnings: Electronic devices must be kept away from water, fire or high magnetic radiation. Clean with a dry cloth. Provide adequate ventilation. Unplug the power supply when the device is not to be used for an extended period of time.

  • Page 5: Table Of Contents

    Table of Contents 4.1 Video Size ..............12 Chapter I System Introduction ............. 1 1.1 Product Description ............ 1 4.2 Player ................ 12 1.2 Product Features ............1 4.3 Stream Type .............. 12 1.3 Product Model ............1 4.4 Motion Detection ............12 1.4 Product Specifications ..........

  • Page 7: Chapter I System Introduction

    1.4 Product Specifications Lens 1.1 Product Description Optical zoom: Digital zoom: Infinova's V1771N series 1.3 megapixel dome camera, leading in Aperture / Focal Length: F 1.6~F2.8, f=4.7~84.6mm the industry, features high-definition IP video signals output. Angle of View: 55.2° (Wide)/3.2° (Tele) Minimum Focal Range: 0.01m (Wide) ~1m (Tele)

  • Page 8: Notice

    Outdoor: 5.4Kg (Bracket), 5.0Kg (Ceiling) Download OCX First, user has to log in with the Infinova super ID and password 1.5 Notice (For more information, please refer to Chapter 3.1 Login). After 1. Re-power the IP dome 10 seconds after it powers off.

  • Page 9: Set Ie Browser

    If the installation above fails, move forward according to the following steps to continue: Install DirectX End-User Runtime (Directx 9.0c) version 9.0c or above, which can be downloaded at http://www.microsoft.com/downloads/details.aspx?FamilyId=0A9B 6820-BFBB-4799-9908-D418CDEAC197&displaylang=en Install Microsoft NET Framework Version 1.1 Redistributable Package, which can be downloaded at http://www.microsoft.com/downloads/details.aspx?FamilyID=262d 25e3-f589-4842-8157-034d1e7cf3a3&displaylang=en Both of the two softwares above are in English and free of charge.

  • Page 10: Chapter Iii Basic Function Operation

    There are two default IDs for selection:(1)INFINOVA (password: INFINOVA); (2) Administrator (password: Infinova). Click ‘Login’ button to log on. If the username or password is not correct, the system will return to the above dialog box.

  • Page 11: System Information

    Figure 3-7. Account Setting 1. Add Users Note: support a maximum of 8 accounts. stands for super user, while stands for common user. Click “ ”, enter the interface of “Add a User”. Figure 3-8. Add User Figure 3-6. Setting Interface for Common User Enter the desired User Name and Password (Special In the “settings”...

  • Page 12: Network Settings

    Click button in the navigation bar, the following interface concerning network parameter would display: 3.4.3 FTP settings V1771N series dome has the function of alarm associated with FTP upload. Configure server IP, user name and password in the FTP settings...

  • Page 13: Smtp Settings

    and enable FTP alarm in alarm settings, then alarm associate with following Alarm Settings interface: FTP upload can be achieved. 3.4.4 SMTP Settings Server IP: Set mail server address. From: Set sender’s mail address. To: Mail address of recipient. CC: Mail address of the person copy to. Authentication: Enable or disable authentication function.

  • Page 14: System Log

    3.10 SD Card Camera Address: set the address of V1771N series Megapixel Click button to enter the interface shown below: network PTZ Domes. Baud rate: set the communication baud rate, the default value is 2400 bps. Protocol: select the corresponding protocol of camera. The built-in service software in this IP dome supports Pelco-P, Pelco-D and Infinova.

  • Page 15: Recording Replay

    condition section, with VOD selected, as shown in Figure 3-28. 3.11.2 Recording Replay Search Video replay Condition window Figure 3-28 VOD Search Replay Progress If there is file that fit the condition, green, orange and/or red boxes will be displayed on the video record distribution section, as shown Video Record in Figure 3-27.

  • Page 16: Advanced Settings

    Download Manager. 3.12 Advanced Settings Remote Record Download: Define storage path for file download, V1771N series provides a series of advanced functions, such as Software select camera, define time range, and then click “Download” button Update, Factory Settings and Online Reboot.

  • Page 17: Factory Settings

    If update successfully, the following information will appear on the current interface: Figure 3-35 If the type of updating file is wrong, the following information will come out: Figure 3-36 At this time, re-check the updating file and camera system, or otherwise choose other program to update.

  • Page 18: Chapter Iv Mpeg4 Video And Alarm Settings

    . If it’s normal, the icon is Users can select player to play video: Infinova Player: Choose Infinova player to play video. grey QuickTime: Choose QuickTime Player to play video. [ON ]: Open motion detection alarm.

  • Page 19: Qos Setting

    Select the desired setting, and then click “Set” button to save the configured parameters. Recommended: Normal Service. Note: Available only for super user. Plus the revision comes into valid only after reboot. 4.7 Resolution Settings Click the “Resolution” button in the navigation bar to display the graphic mode interface: Figure 4-5 OSD settings include: Text OSD, Date OSD and Time OSD.

  • Page 20: Bit Rate

    V1771N series IP dome can offer bi-directional voice function. In: indicates sound comes from the PC and then is outputted from the front-end camera. If you want to obtain audio input function, select “on” in the scroll field of In and click “Set” to save it.

  • Page 21: Chapter V Mjpeg Video Setting

    Chapter V MJPEG Video Setting Note: the image is saved with its name including IP address and User can also click “MJPEG” button to enter “MJPEG” video (as time information. shown in figure 3-4). Super users can set such settings via the buttons on the left as resolution, image quality, frame rate, snapshot Take the image named 20071114191026734-192.168.3.119.jpeg as and so on, while common users can only view resolution and image...

  • Page 22: Snapshot

    Chapter VI Menu Settings 5.4 Snapshot A “Shot” button is provided for image snapshot. Click the “Shot” Note: The common users have no such settings. button, the current image will be snapshot. There are two ways for users to enter menu: 1.
  • Page 23 Display lens type; Display dome software version. 2.5 EXPOSURE SET Note: When the address and baud rate is set via DIP switch, the ID Set exposure mode; and baud rate displayed on the menu are unchangeable. Set level; Disable/enable backlight; 1.2 DOME TITLE SET Set title Set DSS (reserved);...

  • Page 24: Chapter Vii Camera Control

    Set the time and action of calling up tour according to TOUR Chapter VII Camera Control mode. The camera control keyboard is illustrated as below: 3.6 Normal TOUR set Up to 6 TOURs can be set. Each TOUR can link with 14 actions, Lens Direction the action can be preset 1~32, pattern or AUTOPAN, and the period...

  • Page 25: Camera Control Function

    Shown in the following Figure: 7.3.2 Setting Preset and Calling up Preset Setting Preset Enter the preset number in (1－254); Deflect the direction key to change the lens location; Click to save the setting; Calling up Preset Figure 7-3 Enter the preset number to be called up in , and click in the “Setting preset”...

  • Page 26: Appendix I Magnetic Ring Filter Instruction

    Appendix I Magnetic Ring Filter Instruction To reduce electromagnetic interference that power supply generates, it is necessary to install a magnetic ring filter with the power cable. To install a magnetic ring filter with power supply: Step 1: Open the magnetic ring filter and lead the power cable through. Step 2: Wire the power cable on the magnetic ring filter 3 rounds or more (Make sure the filter can be well closed).

  • Page 27: Appendix Ii Questions & Solutions

    Appendix II Questions & Solutions The following table describes the symptoms causes, and solutions for the problems. Symptoms Possible Causes Solutions Wrong power connection Reconnect power cable The IP dome does not perform Power supply failure Repair or replace power supply initiation sequence after powering on Power PCB fuse damage Replace the fuse...
  • Page 28 Infinova 51 Stouts Lane, Monmouth Junction, NJ 08852, U.S.A. Tel: 1-888-685-2002 (USA only) 1-732-355-9100 Fax: 1-732-355-9101 sales@infinova.com V1.1 1008...
