Page 1: User Manual

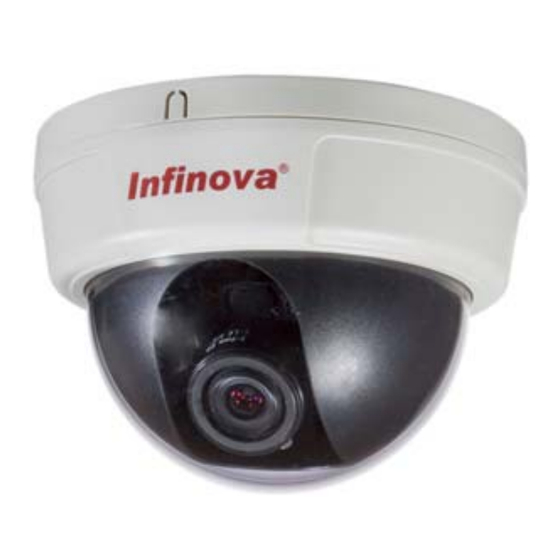

V5411-A2 SERIES INDOOR COLOR DOME CAMERA User Manual... -
Page 2: Table Of Contents
CONTENTS Chapter I Description ................1 Chapter II Main Features ..............3 Chapter III Installation ............... 4 3.1 Mounting Process ............... 4 3.2 Handling Precautions ..............7 3.3 Installation Precautions .............. 7 Chapter IV Camera Function Setting..........9 4.1 Camera Module – Back .............. 9 4.1.1 Operation Instruction............ -
Page 3: Chapter I Description
This manual addresses the operation and programming procedures of V5411-A2 color dome camera. V5411-A2 series indoor color fixed minidome cameras feature a high-resolution 1/3" CCD sensor and excellent low light operation. They are available in resolutions of 480 TV lines at 0.3 lux. They are built-in a fixed lens or an auto-iris vari- focal lens. - Page 4 Surface mount, 2.8mm fixed lens V5411-A2014SU Analog minidome camera, 2-axis, Indoor, 1/3 inch CCD, Color only, 480TVL, PAL, 12VDC/24VAC, Surface mount, 3.6mm fixed lens V5411-A2014SW Analog minidome camera, 2-axis, Indoor, 1/3 inch CCD, Color only, 480TVL, PAL, 12VDC/24VAC, Surface mount, 6mm fixed lens V5411-A2014SX Analog minidome camera, 2-axis, Indoor, 1/3 inch CCD, Color only, 480TVL, PAL, 12VDC/24VAC,...
-
Page 5: Chapter Ii Main Features
CHAPTER II MAIN FEATURES 1/3" SONY HAD CCD sensor High Resolution at 480 TVL Low Light operation at 0.3 Lux Digital Signal Processor (DSP) for high quality image High sensitivity, low smear, high anti-blooming, and high S/N ratio Auto Electronic Shutter (AES), Auto Gain Control (AGC), Auto Tracking White Balance (ATW), Flickerless (FL), and Backlight Compensation (BLC) Internal (INT) Sync. -
Page 6: Chapter Iii Installation
CHAPTER III INSTALLATION 3.1 Mounting Process STEP 1: Secure Dome’s Adapter in the desired ceiling position with the 3 fixing screws, as shown in Figure 1. Figure 1 See the figure below for the adapter mounting holes: (Unit: mm) 120° 3- Ø4.40 Ø106.00 120°... - Page 7 STEP 2: Remove the Dome Cover. Align the 3 grooves of the camera unit with the 3 bolts in the adapter and turn counterclockwise to make it fixed. Vari-focal lens Fixed-focal lens Figure 3 STEP 3: The vertical angle can be adjusted by loosening the screws as shown in Figure 4 and by turning the Camera Case vertically.
- Page 8 STEP 4: The horizontal angle can be adjusted by turning the Camera Case and bracket in Figure 5 and by turning the Camera Platform horizontally. Vari-focal lens Fixed-focal lens Figure 5 STEP 5: After finishing angle adjustment, set the camera function by using the buttons in the back panel (see Chapter IV).
-
Page 9: Handling Precautions
3.2 Handling Precautions 1. Never let liquid of any kind flow into this unit. 2. Do not directly touch the CCD element. If it is necessary to clean the dome bubble, use a soft cloth moistened with alcohol to wipe off any dust. 3. - Page 10 c. Tighten the locking screw. Locking screw Figure 7 (2). Vari-focal lens a. Loosen the zoom tightening knob and the focus tightening knob. b. Slowly rotate the zoom ring to adjust the focal length. c. After a zoom operation, slowly rotate the focus ring to obtain the sharpest image on the monitor.
-
Page 11: Chapter Iv Camera Function Setting
CHAPTER IV CAMERA FUNCTION SETTING 4.1 Camera Module – Back Figure 9 ① Function Setup Switch ② Auto IRIS lens select ③ Auto IRIS lens Jack ④ RS-232C Jack ⑤ Power Input and Video Out Jack ⑥ LEVEL – Video adjust 4.1.1 Operation Instruction [FL Function] F.L.: If fierce image flicker caused by the conflicting frequency between... - Page 12 [AGC-HIGH/AGC-LOW Selection] Magnify the signal collected from CCD to an available standard to video amplifier, and how much it magnifies equals to gain, which means the sensitivity. Adjust AGC properly to have camera work under a larger illumination area. AGC: Activate AGC-HIGH function, and it can add 15dB illumination sensitivity under faintly light environment to promote the image signal strength for better impression.
-
Page 13: Lens Driving Signal Selection
4.1.2 Lens Driving Signal Selection 1. This item is used to select the mode of the auto-iris to provide the driving signal to the auto-iris driving interface on the lens. 2. If the lens applies DC drive, please set the lens driving signal selection switch to DC. - Page 14 To 12VDC Power To 24VAC Power To Monitor To Monitor Figure 11 Cable from base To 12VDC Power To 24VAC Power To Monitor To Monitor Figure 12 Cable from side J2: power output and video input interface J2 connect the power video interface ⑤ on the rear panel of the camera module.
-
Page 15: Appendix I Specification
APPENDIX I SPECIFICATION Model Type V5411-A2 Series Image Sensor 1/3" SONY HAD CCD Effective Pixels (H×V) NTSC: 768 × 494,380k PAL: 752 × 582,440k Resolution 480 TVL Minimum Illumination 0.3 lux@F1.2 (30IRE, AGC ON) Scanning Frequency 15.625kHz(lines), 50Hz(fields) S/N Ratio >48dB(AGC OFF) -
Page 16: Appendix Ii Cable Diameter Calculation And Lightning & Surge Protection
APPENDIX II CABLE DIAMETER CALCULATION AND LIGHTNING & SURGE PROTECTION Relation between 24VAC Cable Diameter and Transmission Distance In general, the maximum allowable voltage loss rate is 10% for AC-powered devices. The table below shows the relationship between transmission power and maximum transmission distance under a certain specified cable diameter, on condition that the 24VAC voltage loss rate is below 10%. - Page 17 Lightning & Surge Protection The product adopts multi-level anti-lightning and anti-surge technology integrated with gas discharge tube, power resistor and TVS tube. The powerful lightning and surge protection barrier effectively avoids product damage caused by various pulse signals with power below 4kV, including instantaneous lightning, surge and static.
- Page 18 Infinova 51 Stouts Lane, Monmouth Junction, NJ 08852, U.S.A. Tel: 1-888-685-2002 (USA only) 1-732-355-9100 Fax: 1-732-355-9101 sales@infinova.com V2.3 1401...
