USER MANUAL – EN
IN 6079 Treadmill inSPORTline Borra

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6079 and is the answer not in the manual?

Questions and answers

Related Manuals for Insportline 6079

Summary of Contents for Insportline 6079

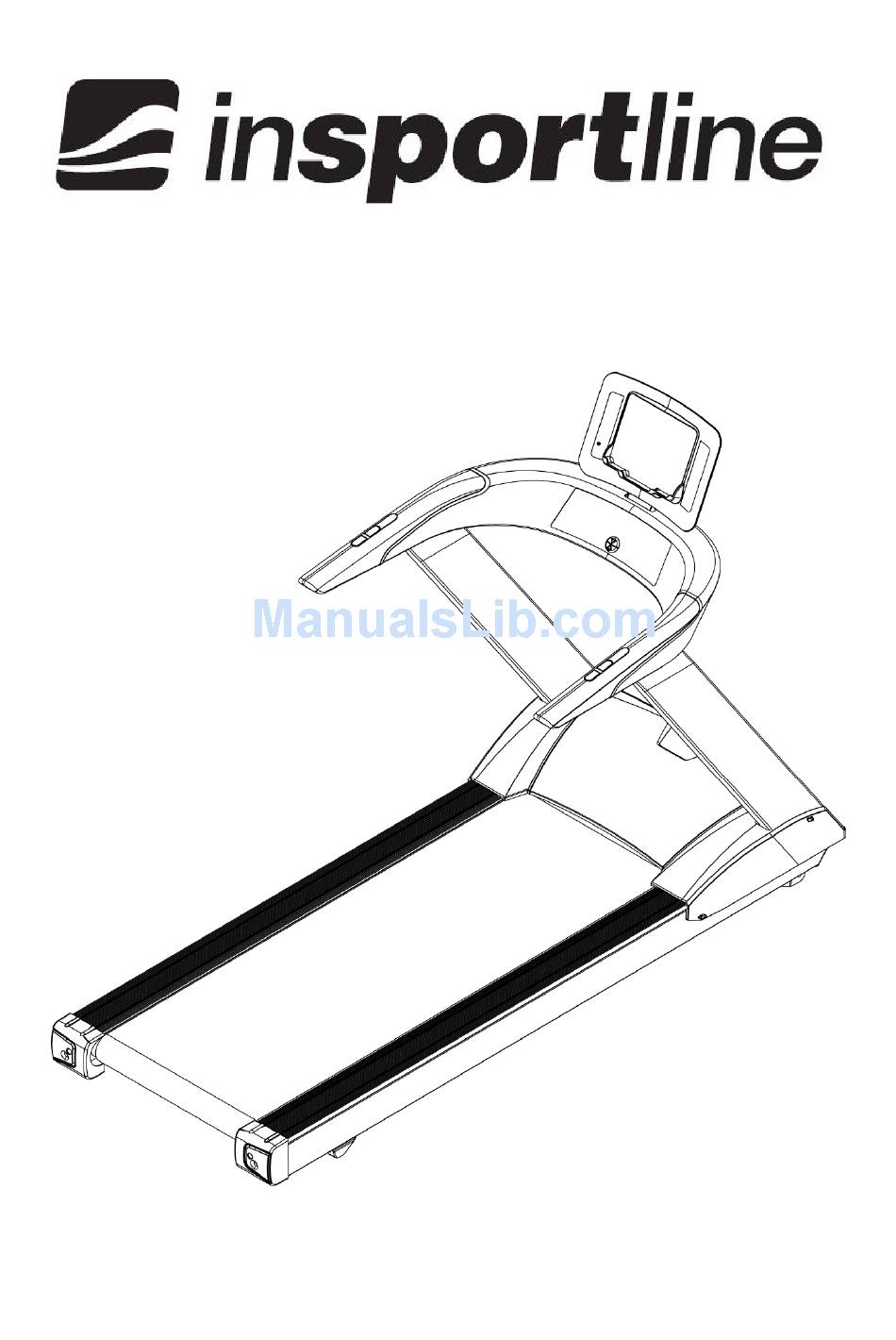

  • Page 1 USER MANUAL – EN IN 6079 Treadmill inSPORTline Borra...

  • Page 2: Table Of Contents

    CONTENTS OUTLOOK INSTRUCTION ......................3 SAFETY INSTRUCTION ......................... 3 WAY OF TREADMILL USING ......................5 GROUNDING WIRES INSTRUCTIONS ..................5 ASSEMBLE PART LIST ........................6 ASSEMBLE STEPS ........................7 MAINTENANCE..........................9 ADD SILICONE ..........................10 CONSOLE HANDLE INSTRUCTION .................... 12 LCD Decal ..........................

  • Page 3: Outlook Instruction

    1. OUTLOOK INSTRUCTION 2. SAFETY INSTRUCTION When using this product, basic precautions should always be followed, including the following: Please read the instruction carefully before starting to use this product. DANGER – To reduce the risk of electric shock ： ： ： ： •...
  • Page 4 3. Be sure to use the product only for its intended use as described in this manual. Do not use any attachment not recommended by the manufacturer in order to avoid any danger or accidents. 4. Never operate the product if it has a damaged cord or plug, if it is not working properly, if it has been damaged, or dropped into water.

  • Page 5: Way Of Treadmill Using

    24. Before using this product, you should step on the it then turn on the product. Do not turn on the treadmill before step on it. 25. Running surface Width dimensions 550*1525mm 26. Class - SA (according to EN ISO 20957) for commercial use. 27.

  • Page 6: Assemble Part List

    5. No adapter should be used with the product. 5. ASSEMBLE PART LIST Instruction for parts of product: This treadmill also can use other way to account the HRC. When in fitness,user can wear the chest pulse belt and the HRC will show in Pulse windows. ITEM Description Computer console with fixing...

  • Page 7: Assemble Steps

    ITEM Description Truss hex screw M8xP1.25x75 Spring washer M8 Truss philips screw M5xP0.8x15 Truss hex screw M8xP1.25x15 Hex Wrench 6mm x 80mm x 80mm Sucker T shaped wrench 8mm x 200mm Hex Wrech + Screwdriver 5mm x 70mm x70mm SILICONE Truss hex screw M8xP1.25x30 6.
  • Page 8 STEP 2 Put computer handrail tube(C) on upright tube, after connecting lower control wire and middle control wire, lower TV cable wire and middle TV cable wire, then fix with screw(d) and fasten with screw(a).After finished, fasten left &right side cover with screw(c). STEP 3 Put console that with fixing shelf (A) on computer handrail tube(C), then connect control wire, TV cable wire &...

  • Page 9: Maintenance

    STEP 4 Pot Holder assembly: Put Tea Pot Holder (H) on the Up Right Bar (E), secure the Bolt (c) inserted and fixed with fastening. STEP 5 When you want to use I PAD, you can take out the sucker attached in parts package and stick it on the suitable place of computer(as left figure), then put your I PAD on supporter and use sucker to suck up your I PAD to avoid the I PAD falling down.

  • Page 10: Add Silicone

    the above steps. The position of running belt might not • stay precisely in the center with slightly towards the left and right sides, and the situation varies with how end-users use and the weight of end-users. No need to adjust the belt if it doesn’t rub against the parts aside.

  • Page 12: Console Handle Instruction

    9. CONSOLE HANDLE INSTRUCTION...

  • Page 13: Lcd Decal

    9.1 LCD Decal 9.2 Heart Rate Training Zone Instruction User in this age range, goal HRC formula: Max. heart rate = (220 - age) . Low: 0~64% Fatburn: 65%~74% Aerobic: 75%~84% High: 85% above Instruction: If user is 30 years, the max HRC is below 190, in HRC training mode, if user HRC is 120, so 120/190 = 63% and it will show Low.

  • Page 14: Main Keyboard Instruction

    9.4 Main Keyboard Instruction START: a) After start, press this key can enter quick fitness training. b) During PAUSE, press this key enter to start mode. STOP: 1) During fitness, press this key will enter PAUSE condition. Windows will show "PAUSE", the pause time's preset value is 4 minutes.

  • Page 15: Handrail Keyboard Instruction

    9.5 Handrail Keyboard Instruction SPEED +/-: Press this key can adjust the speed, 0.1 per time. If you press for a long time, the • value will change fast. INCLINE↑/↓: Press this key can adjust the treadmill's incline, 1 per time. If you press for a long •...

  • Page 16: Program Simple Handle Instruction

    103 66 9.7 Program Simple Handle Instruction 1. The program will be exercised based on the default weight 70kg (150lbs). Once you change the value. (Range: 23~130kg/ 50~286lbs), program will be exercised according to the latest weight value. 2. The guiding texts will be shown on the screen to guide you for the next setting step by step. 3.
  • Page 17 The purpose of weight setting is to let user know the calories expending and set the suitable formula for changing. The weight can be set for every restart. After run end to return the weight setting page or after SAFETY KEY being taken off. Dormancy: When there is no any operation for a long time, computer will enter dormancy.
  • Page 18 Press SPEED+ or SPEED- to adjust goal distance, preset value is 0.00 and range is 0, 1.00- 99.00, the unit is km (mile). 3. Press ENTER to confirm distance and enter calories setting: Press SPEED+ or SPEED- to adjust the goal calories, preset value is 0 ,range is 0, 10-9990, the unit is calorie.
  • Page 19 b) Press ENTER for 3 seconds and enter self-setting, press SPEED+ or SPEED- to adjust Speed drawing and press INCLINE+ or INCLINE- to adjust Incline drawing, press ENTER to select next Profile zone adjustment (Total 20 stage). After finished the management, press ENTER for 3 seconds then can save the managed value. 2.
  • Page 20 b) Press ENTER to confirm time and enter pulse value setting: Press SPEED+ or SPEED- to set pulse value, preset value is72, add 1 per time. c) Press ENTER to confirm goal pulse value, screen will show "Ready Go" and clockwise 3 seconds to enter fitness mode.
  • Page 21 P4 (interval) P5 (rolling) P6 (weight loss) RANDOM USER HRC 1-3 HRC (60%) HRC (75%) HRC (THR)

  • Page 22: App (Ios&Andriod) Installation Guidance

    BODY FAT Metric/inch system switch mode: • Under weight reset pages, press enter for 10 seconds will enter metric/inch systems switch mode, if it is inch system, LCD windows will show "English". If it is metric systems, windows will show " metric", press speed +/- and you can switch metric/inch systems mode, then you can press enter for confirming.
  • Page 23 STEP.2 Enter iPad Settings program. STEP.3 Open BT, iPad will detect all BT devices within the scope. Please find the treadmill BT device name, and click it for matching. When many BT devices are detected and you can’t recognize the corresponding name, please •...
  • Page 24 STEP.6 Press “HOME” button on iPad and the screen will go to iPad desktop, and then open treadmill APP downloaded from iTunes Store. STEP.7 After entering APP page, treadmill will start to detect APP. When APP connects with treadmill successfully, the APP icon on screen will be unlocked, and then you can use every mode on APP interface to control the treadmill.
  • Page 25 2. BT device matching and APP working: STEP.1 Please place Andriod tablet on area in front of LCD screen. STEP.2 Enter tablet Settings program and open BT. STEP.3 Press “HOME” page button to go to desktop, and open the APP downloaded from Play Store. STEP.4 After entering APP page, treadmill will detect APP, then connecting option page will jump out, press Connect and Andriod tablet will detect all BT devices within the scope.
  • Page 26 STEP.5 Please wait for a few seconds until the status of the device change to ”connected”, then check if there is the figure showing on top right hand corner of tablet (White mark means BT is matched successfully; grey mark means BT is open but not matched). STEP.6 After BT is connected successfully, the App icon on screen will be unlocked.
  • Page 27 a) FITNESS MANAGEMENT R egister your personal account in APP and sign in, you can ： record or review your fitness data for every exercise session. b) Some APP requires connection to Google Map for position, and the page can be used as operation display interface after position.
  • Page 28 STEP.2 Enter Andriod table Settings program, press ”cancel matching”. STEP.3 Close BT function and turn off treadmill. STEP.4 Turn on treadmill after 10 seconds. STEP.5 Enter Andriod tablet Settings program, open BT function, search the treadmill BT device name and re- matching.
  • Page 29 For other iOS or Andriod devices not included in the declared list, the APP can still be installed • and used. Due to different screen size, picture ratio and resolution, figures may be displayed imperfectly and calibration is required. The models above-listed have been calibrated, any update will be declared on pafers website.

  • Page 30: Parts List

    PARTS LIST q'ty item no. Description needed/set HTF230E-D1 computer console SDA8-30I truss hex screw M8xP1.25x30 SOC8 nylon nut M8xP1.25 RD-20-0004 film keyboard 20 keys BAE0300-300-10 rubber pad 30mmx30mmx1.0t single side tape black JTFD002 computer shelf with handrail assembly P-3182 hand grip pulse plastic base NO-4994 hand grip pulse sensor plate RBA-039...
  • Page 31 SHA6-12N counter sink philips screw M6XP1.0X12(ni) SCI4-16 truss philips self-tapping screw Φ4x16 SDA8-15I truss hex screw M8xP1.25x15 XEK-028-260 hand grip pulse board SCI5-15 truss philips self-tapping screw Φ5x15 XL-836B lower control wire XL-1258 transferring board connecting wire upper XL-1241B transferring board connecting wire lower XL-1250 upper control wire SCE5-10...
  • Page 32 XEH-002-001 power wire socket XEA-A001 power switch XLZ-TM power wire P-1825 power wire socket ∮21x 1.0t BAC-009 foam double side tape transparent sucker ∮18x ∮22 ZAV-001 XEG-10-001 circuit breaker NT-1636 power wire collector XEM-002 sensor SCE4-10 truss philips screw (cutted end) M4xP0.7x10 P-2231 sensor fixing base NO-2399...
  • Page 33 SPB5 spring washer M5 SCE5-12 truss philips screw (cutted end) M5xP0.8x12 P-1032 rubber foot pad SCE6-10 truss philips screw (cutted end) M6xP1.0x10 JTBC010 incline base assembly NT-1000 incline base fixing base SGA8-25I cks hex screw M8xP1.25x25 P-1037 plastic sleeve cover PB-00-003 wheel ø60xø10x30 black SGC10-60-30I...
  • Page 34 RBA-016 grounding sticker (Al foil with single side tape)20x1390L RBA-014 grounding sticker (Al foil with single side tape)20x670L XHA-T34 Chest Belt Pulse Emitter POLAR T34 XEN-008 inductance SAE5-8 round head philips screw(cutted end) M5xP0.8x8 XEB-009 filter P-1853 adjustment screw cover(black) SPA030-080-05 washer ø3xø8x0.5t XRB-023-017B...

  • Page 35: Exploded View

    EXPLODED VIEW...

  • Page 36: Attachment

    ATTACHMENT P1~P6 PROGRAM TABLE P1 (9 hole) • P2 (hill climb) • P3 (hill run) •...
  • Page 37 P4 (interval) • P5 (rolling) •...
  • Page 38 P6 (Weight loss) •...

  • Page 39: Terms And Conditions Of Warranty, Warranty Claims

    TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS General Conditions of Warranty and Definition of Terms All Warranty Conditions stated hereunder determine Warranty Coverage and Warranty Claim Procedure. Conditions of Warranty and Warranty Claims are governed by Act No. 40/1964 Coll. Civil Code, Act No.
  • Page 40 VAT ID: CZ26847264 Phone: +420 556 300 970 E-mail: eshop@insportline.cz reklamace@insportline.cz servis@insportline.cz Web: www.insportline.cz INSPORTLINE s.r.o. Headquarters, Warranty & Service centre: Elektricna 6471, 911 01 Trencin, Slovakia CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.sk reklamacie@insportline.sk servis@insportline.sk Web: www.insportline.sk...
