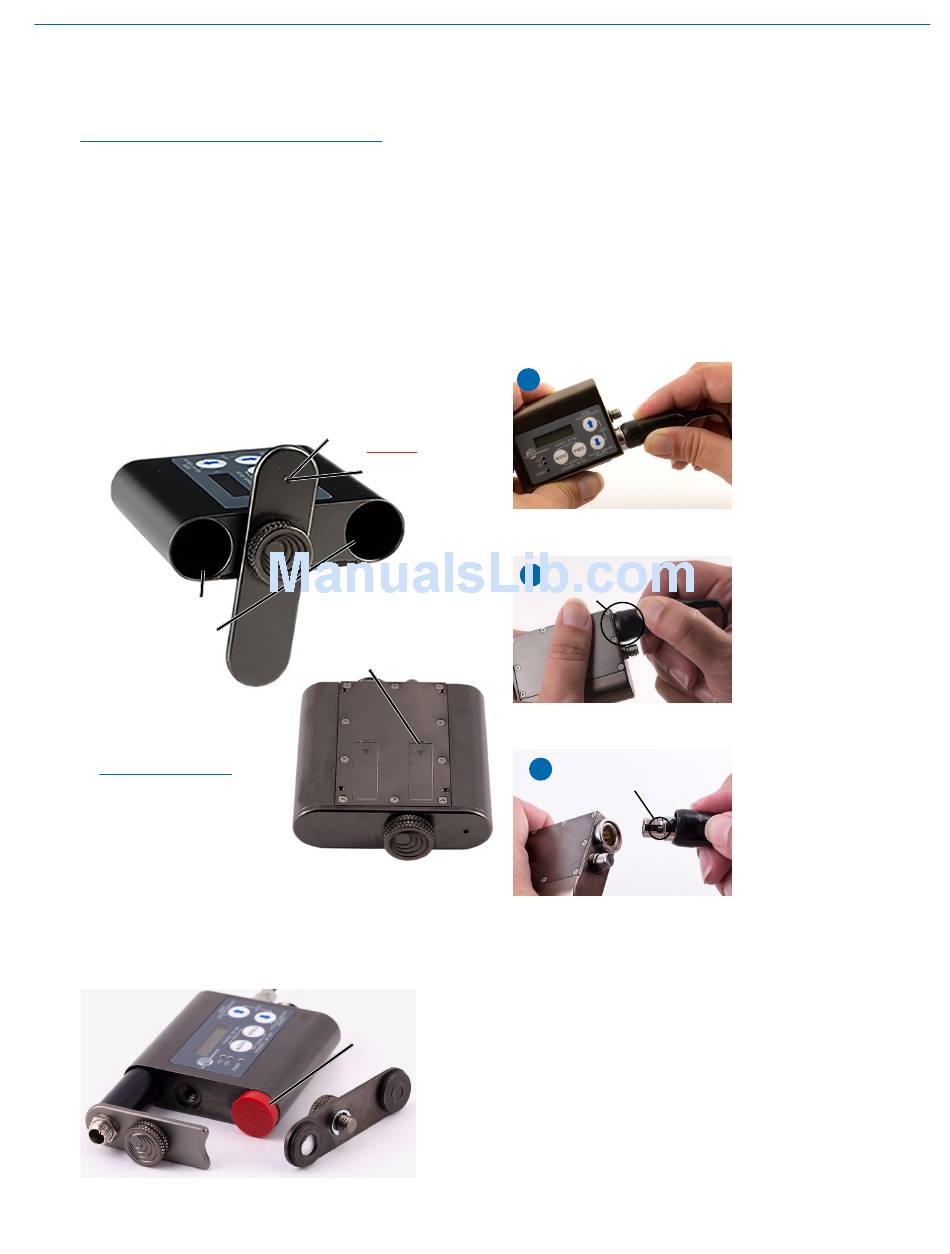

Battery and Battery
Eliminator Installation
Note: Standard zinc-carbon batteries marked
"heavy-duty" or "long-lasting" are not adequate.
The battery status circuitry is designed for the voltage
drop over the life of lithium batteries.
To install new batteries:
1. Turn the Battery Cover Plate Thumbscrew counter-
clockwise a few turns until the door will rotate.
2. Insert the new batteries into the housing. The posi-
tive (+) battery terminal goes into the transmit-
ter first.
3. Align the Battery Cover Plate and tighten the Bat-
tery Cover Plate Thumbscrew.
Two battery
compartments
(SMQV)
NOTE: Refer to the
previous section entitled
Configuring for Power
Restore
To install the battery eliminator, loosen the
thumbscrew completely and remove the battery
door. Insert the battery eliminator and tighten the
thumbscrew.
Gore - Tex Registered trademark of W. L. Gore and Associates
Rio Rancho, NM
Attaching and Removing
the Microphone
Gore-Tex
®
covered vent
Do Not
Cover Vent
Polarity
engraved into
housing
Install plastic cap
on dual battery
model to cover
the open battery
compartment.
Super-Minature Belt Pack Transmitter
The flexible sleeve over the 5-pin plug on the micro-
phone helps prevent dust and moisture from getting into
the input jack. The flange around the rim of the connec-
tor on the transmitter helps retain the sleeve after it is
installed and
The following procedure simplifies the attachment and
removal of the microphone to assure the sleeve is
seated securely.
Align the pins on the plug and jack and insert the con-
nector.
1
Pinch and
2
squeeze the
sleeve on this end
to work it down
over the flange.
3
Release button
If the sleeve is pulled
down and covering the
connector, squeeze the
end of the sleeve so you
can feel the connector
inside and press it into
the jack until it latches.
Pinch and squeeze the
sleeve near the flange
and work it down with a
kneading motion over
the flange all the way
around until it stays in
place flush with the
housing. Pull on the
connector to make sure
it is firmly latched.
To remove the connec-
tor, pull the sleeve back
to expose the black
release button. Press the
button to unlatch the
plug.
