Battery and Battery
Eliminator Installation
Note: Standard zinc-carbon batteries marked
"heavy-duty" or "long-lasting" are not adequate.
The battery status circuitry is designed for the voltage
drop over the life of lithium batteries.

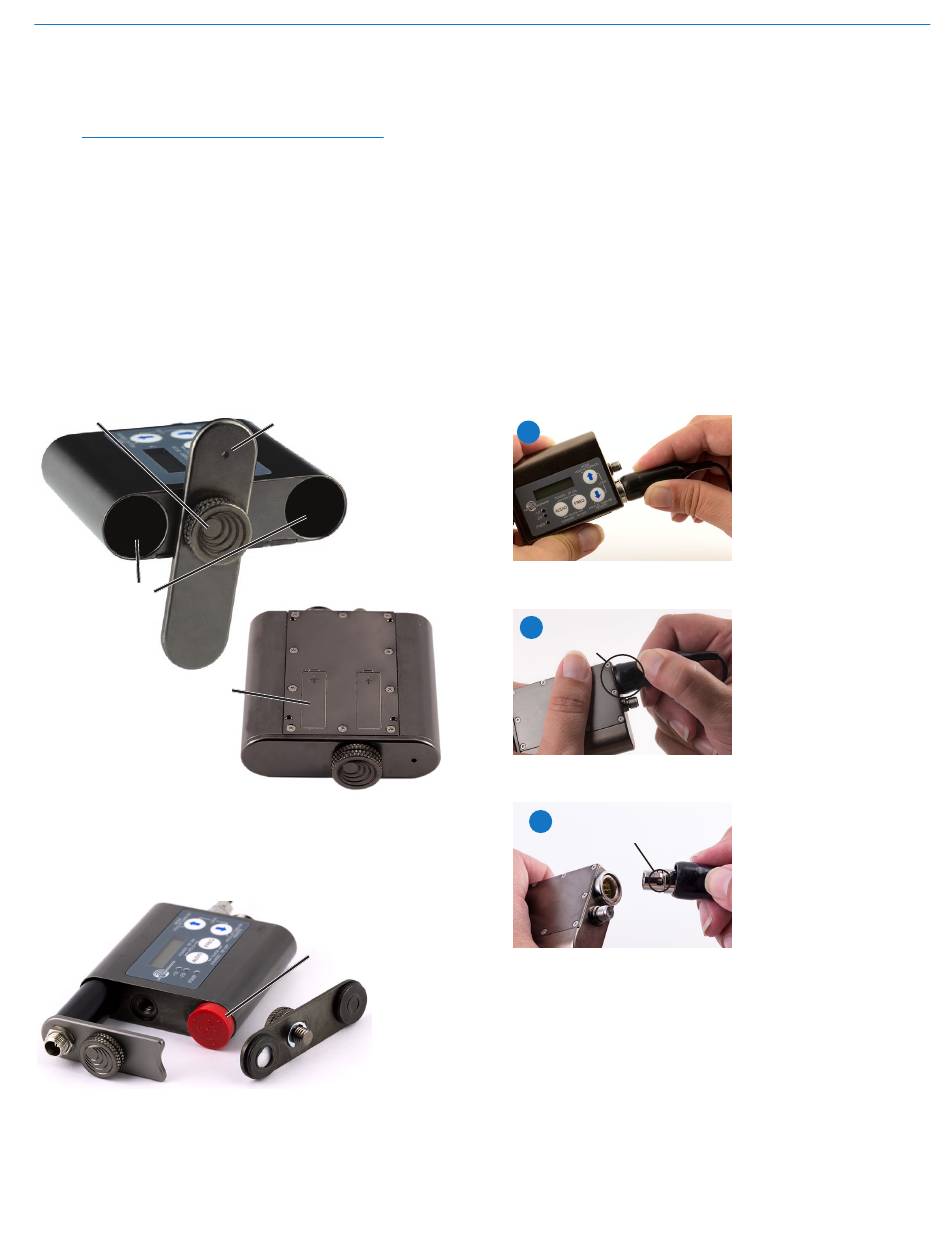

To install new batteries:
1. Turn the battery cover plate thumbscrew counter-
clockwise a few turns until the door will rotate.
2. Insert the new batteries into the housing. Polarity is
marked on the back of the housing.
3. Align the battery cover plate and tighten the battery
cover plate thumbscrew.
Cover plate
thumbscrew
Two battery
compartments
(SMQV)
Polarity engraved
into housing
To install the battery eliminator, loosen the
thumbscrew completely and remove the battery
door. Insert the battery eliminator and tighten the
thumbscrew.
Gore - Tex Registered trademark of W. L. Gore and Associates
Rio Rancho, NM
Gore-Tex covered vent
®
Do Not Cover Vent
Install plastic cap
on dual battery
model to cover
the open battery
compartment.
Super-Minature Belt Pack Transmitter
Attaching and Removing
the Microphone
The flexible sleeve over the 5-pin plug on the micro-
phone helps prevent dust and moisture from getting into
the input jack, and provides additional strain relief. The
flange around the rim of the connector on the transmitter
creates a splash proof connection and keeps the sleeve
securely attached.
The following procedure simplifies the attachment and
removal of the microphone to assure the sleeve is
seated securely.
Align the latch on the plug and jack and insert the
connector. It is easier to attach the microphone when
the sleeve is pulled back as shown in the Step 3 photo
below.
1
Pinch and
2
squeeze the
sleeve on this end
to work it down
over the flange.
3
Release button
If the sleeve is pulled
down and covering the
connector, squeeze the
end of the sleeve so you
can feel the connector
inside and press it into
the jack until it latches.
Pinch and squeeze the
sleeve near the flange
and work it down with a
kneading motion over
the flange all the way
around until it stays in
place flush with the
housing. Pull on the
connector to make sure
it is firmly latched.
To remove the connec-
tor, pull the sleeve back
to expose the black
release button. Press the
button to unlatch the
plug.
