Operating Notes; Rm2 Remote Control - Lectrosonics SMV Series Instruction Manual

Operating Notes

• The sensitivity to the remote control varies with the
transmitter's audio level setting and the microphone
used, but it is always possible to make it work with
a sufficiently loud remote signal at close range.
• If the transmitter is configured to respond to the
remote control, it will do so even if the buttons are
locked.
• When the transmitter is asleep, it can only be awak-
ened by the remote control, or by removing and
reinserting the battery.
• When the transmitter is asleep, the PWR led blinks
green every few seconds.
• If a remote command is sent that would result in
the same display being shown again on the trans-
mitter (for example tuning to the channel already
displayed), a row of dashes is displayed briefly, as a
signal that the command was received, but it didn't
change anything.
• If you are having trouble getting the transmitter to
respond, make sure you aren't covering the speaker
with your thumb, and/or turn up the speaker volume
on the Loud page.
• If the RM is set to a different block number than
the transmitter and an attempt is made to set the
transmitter's frequency in MHz, the command
will still work. The transmitter is simply set to the
corresponding channel in the correct block, with a
matching hexadecimal number.
• The audio signal from the RM will change the set-
tings of all transmitters within range. Experiment
with this to prevent accidental changes to another
transmitter during a production.
Rio Rancho, NM
Super-Minature Belt Pack Transmitter
The RM should be held close enough to the microphone to
change the settings on the intended transmitter, and not be
loud enough to affect other transmitters nearby.

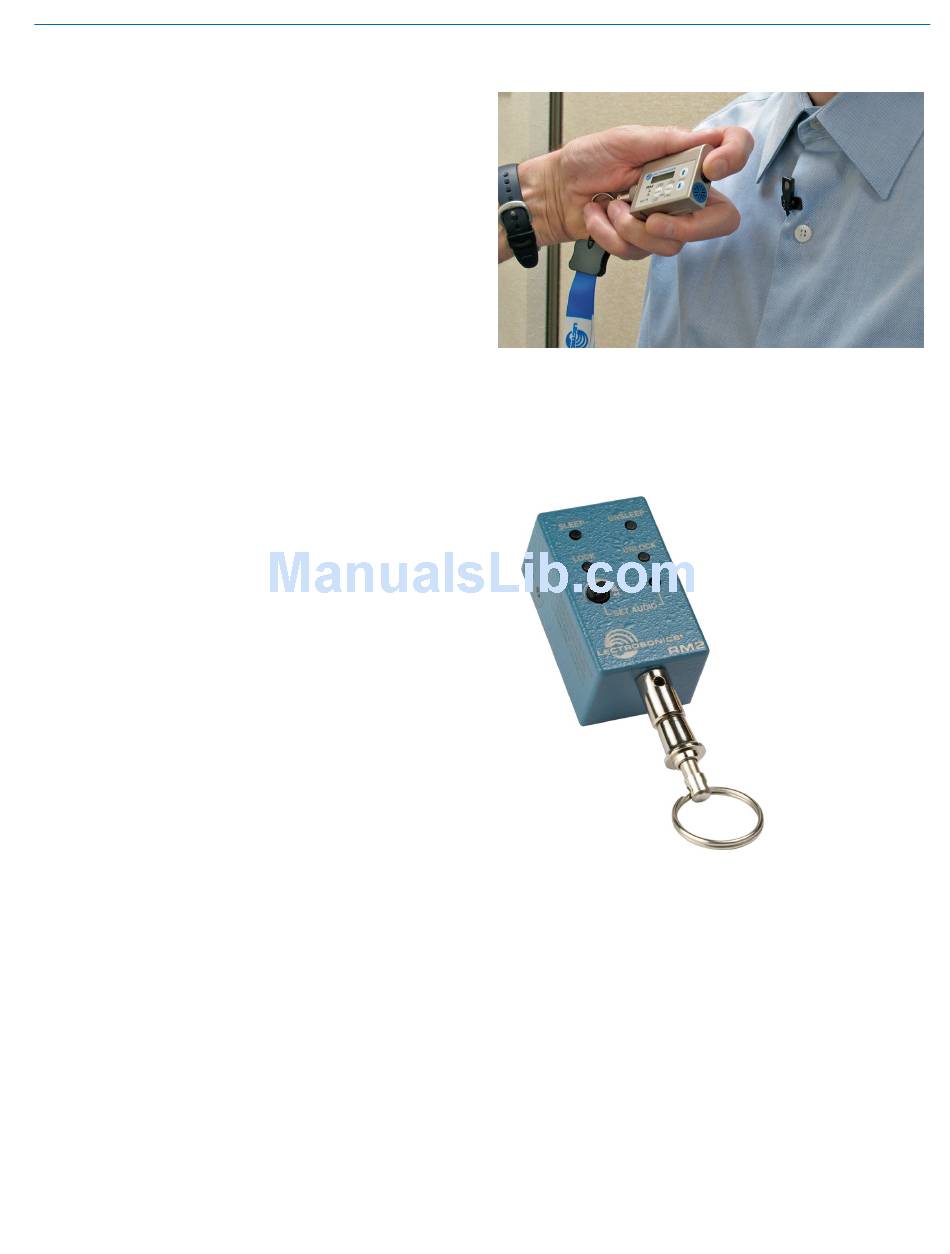

RM2 Remote Control

A lower cost alternative to the RM, this model provides
remote control of:
• Sleep/Unsleep
• Lock/Unlock
• Audio Level (gain)
This model operates on a "button cell" battery with a
recessed trim pot (screwdriver adjusted) for the speaker
level control.
17
