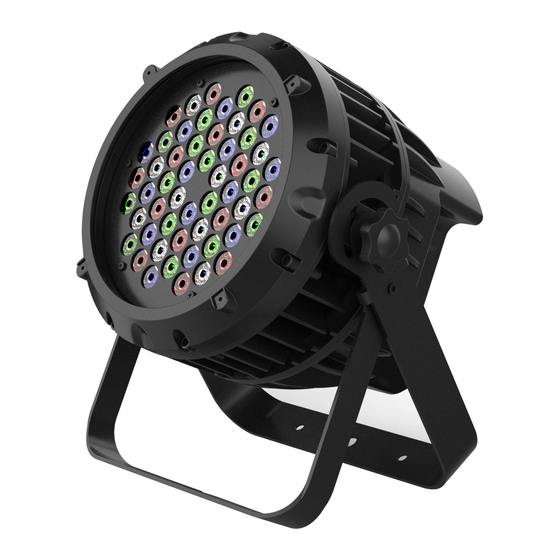

BW-545

User Manual

Please read the instructions carefully before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BW-545 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACME BW-545

Summary of Contents for ACME BW-545

  • Page 1: User Manual

    BW-545 User Manual Please read the instructions carefully before use...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instructions ..........................2 2. Techical Specfications ........................4 3. How To Set The Fixture ........................4 3.1 Control Panel ..........................4 3.2. Main Functions ..........................5 4.How To Control The Unit ......................... 10 4.1 Master/Slave Built In Preprogrammed Function ................. 10 4.2 DMX Controller..........................

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instructions carefully which include important information about the installation, operation and maintenance. WARNING  Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Caution：...
  • Page 4  Do not touch any wire during operation as there might be a hazard of electric shock.  Avoid power wires together arounding other cables.  In the event of serious operating problem, stop using the unit immediately.  Never turn on and off the unit time after time. ...

  • Page 5: Techical Specfications

    2. Techical Specfications  Voltage: AC 100-240V/50HZ  Power consumption: 162W  Light source: 3W LED x 54pcs (14pcs x Red, 14pcs x Green, 14pcs x Blue, 12pcs x White)  Power Cord Daisy Chain: 3 Fixtures Max. (120V/60Hz), 6 Fixtures Max. (230V/50Hz) ...

  • Page 6: Main Functions

    Button: 4. MENU To select the programming functions 5. DOWN To go backward in the selected functions 6. UP To go forward in the selected functions 7. ENTER To confirm the selected functions 3.2. Main Functions To select any functions, press the MENU button until the required one is shown on the display. Select the function by the ENTER button and the display will blink.
  • Page 8 DMX 512 Address Setting Press the MENU button up to when the is shown on the display. Press ENTER button and the display will blink. Use DOWN and UP button to change the DMX 512 address. Once the address has been selected, press ENTER button to setup or automatically exit menu mode without any change after one minute.
  • Page 9 (Dimmer Curve 4). Once select, press ENTER button to store or automatically return 1) … to the main functions without any change after one minute. To go back to the previous functions without any change press the MENU button. Dimmer Speed Press the MENU button up to when the is shown on the display.
  • Page 10 Press the MENU button up to when the is showing on the display. Press ENTER button and the display will blink. Use DOWN and UP button to select the (Red), (Blue) mode. Once the mode has been selected, press the DOWN and Up (Green) or button to select the value from 125 to 255, press the ENTER button to setup or automatically return to the main functions without any change after one minute.

  • Page 11: How To Control The Unit

    Fixture Hours Press the MENU button up to when the is blinking on the display. Press ENTER button and the display will show the number of working hours of the unit. To go back to the functions press the MENU button. Software version Press the MENU button up to when the is blinking on the display.

  • Page 12: Dmx 512 Configuration

    Once the address has been selected, press and keep the ENTER button pressed up to when the display stops blinking or storing automatically 8 seconds later. To go back to the functions without any change press the MENU button again. Please refer to the following diagram to address your DMX512 channel for the first 4 units：...
  • Page 13 7 Channels Mode: Channel Value Function 0 - 255 0%  100% GREEN 0 - 255 0%  100% BLUE 0 - 255 0%  100% WHITE 0 - 255 0%  100% COLOR WHEEL 0 - 7 8 - 15 PRESET COLOR 1 16 –...

  • Page 14: Dmx512 Connection

    4.4 DMX512 Connection 1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable. 2. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120 ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 15: Troubleshooting

    5. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.

  • Page 16: Declaration Of Conformity

    Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008; EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008. &...
