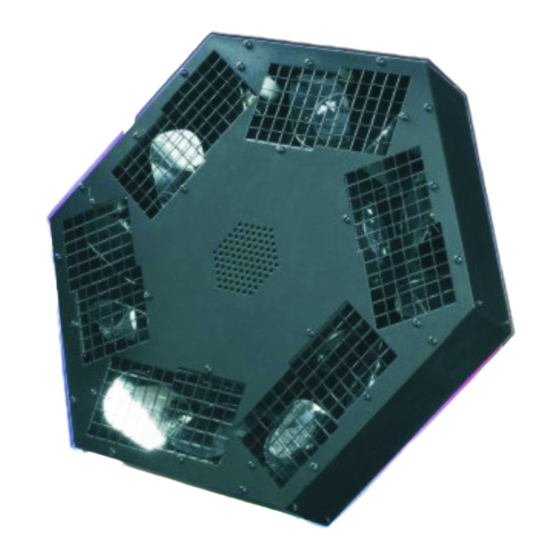

ACME LED-CTL6 User Manual

Led center light
Hide thumbs

Advertisement

Quick Links

LED CENTER LIGHT

USER MANUAL

LED-CTL6
Professional Entertainment Technology

Advertisement

loading
Need help?

Need help?

Do you have a question about the LED-CTL6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACME LED-CTL6

Summary of Contents for ACME LED-CTL6

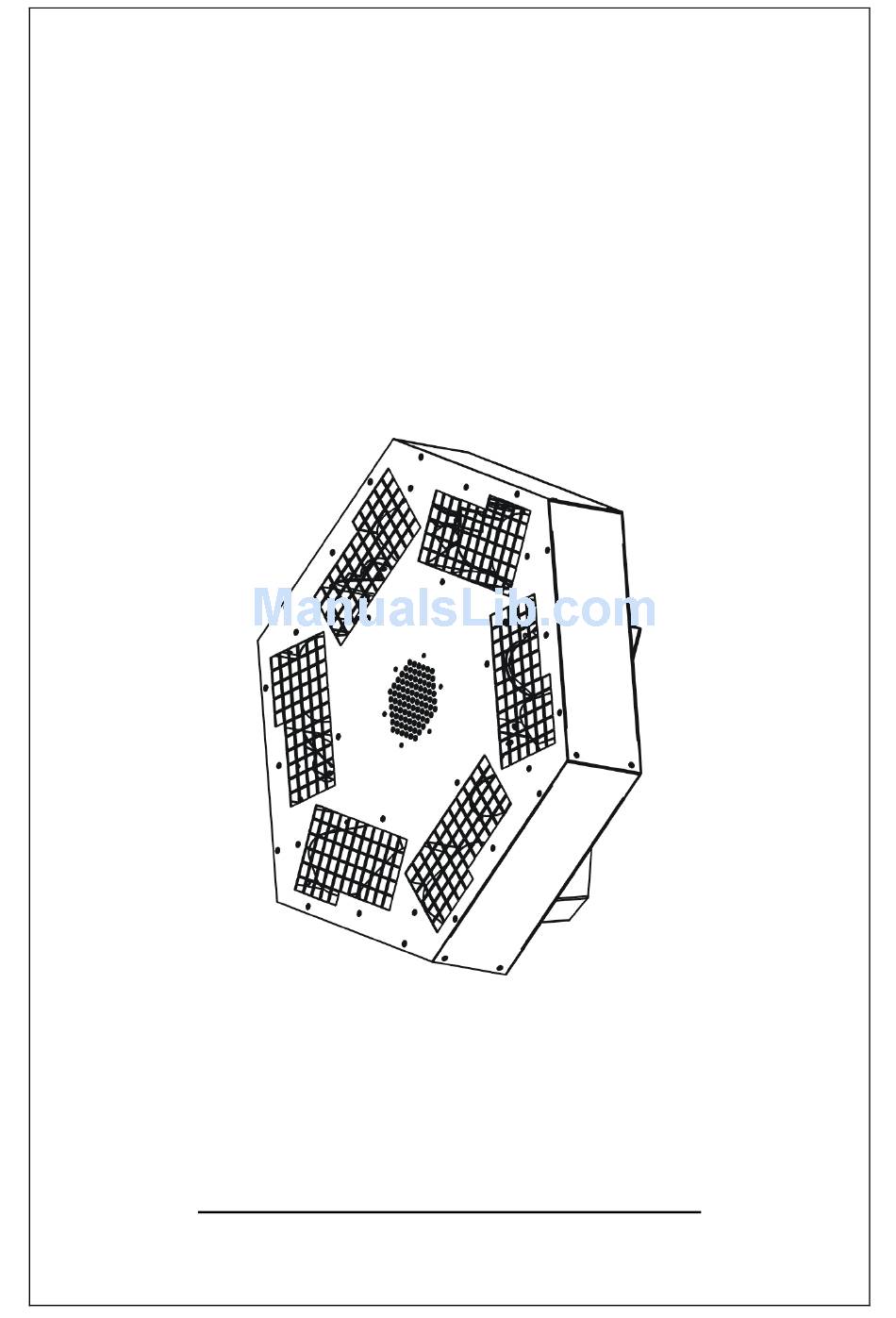

  • Page 1: User Manual

    LED CENTER LIGHT USER MANUAL LED-CTL6 Professional Entertainment Technology...

  • Page 2: Table Of Contents

    LED-CTL6       TABLE OF CONTENTS 1. Safety Instruction 2. Technical Specification 3. Main Function 4. How To Control the Unit 5. DMX 512 Configuration 6. DMX 512 Connection 7. Fixture Cleaning                                                                                                            ...

  • Page 3: Safety Instruction

    LED-CTL6       1. Safety Instruction Please read the instruction carefully which including important information about the installation, operation and maintenance WARNING ♦ Please keep the User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet.
  • Page 4 LED-CTL6       Warning ♦ To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture. ♦ Do not start on the unit when housing are damaged. ♦ The housing must be replaced if they are visibly damaged.

  • Page 5: Technical Specification

    LED-CTL6       2. Technical Specification Input Voltage: AC 100/120/230/250V~50/60Hz Power consumption: 60W Light Source: 6×3W (3 in 1) LED Fuse: T 5A (AC 100/120V) T 3.15A (AC 230/250V) 4 Channels: Channel 1 = Movement Channel 2 = Movement Speed...

  • Page 6: Main Function

    LED-CTL6       3. Main Function 1. Mains input：IEC socket and integrated fuse holder, connect to main power cable. 2. DMX OUT： Transmit DMX signal by 3-Pin XLR female socket. 3. DMX IN： Receive DMX signal by 3-Pin XLR male socket.

  • Page 7: How To Control The Unit

    LED-CTL6       4. How To Control The Unit Three ways to operations: A. Master/Slave operation B. Easy controller C. Universal DMX controller A. By Master/slave Built-in Preprogrammed Function By linking the units in master/slave connection, the first unit will control the others to give a coordinate automatic light show and it’s good for instant shows.
  • Page 8 LED-CTL6       Blackout To blackout all the fixture Function 1.Synchronous strobe Select color Select chase in white 1. Red 2. Sound strobe 2. Green in white 3. Orange 3. Sound strobe 4. Pink in color 5. Yellow 6. Cyan 7.Blue...

  • Page 9: Dmx 512 Configuration

    LED-CTL6       5. DMX 512 Configuration 6. DMX 512 Connection The DMX 512 is widely used in intelligent lightings and with a maximum of 512 channels.                                                                                                            ...

  • Page 10: Fixture Cleaning

    LED-CTL6       If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120 ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.
  • Page 11 LED-CTL6       EC Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55014-2: 1997 A1:2001, EN61000-4-2: 1995; EN61000-4-3:2002;...
