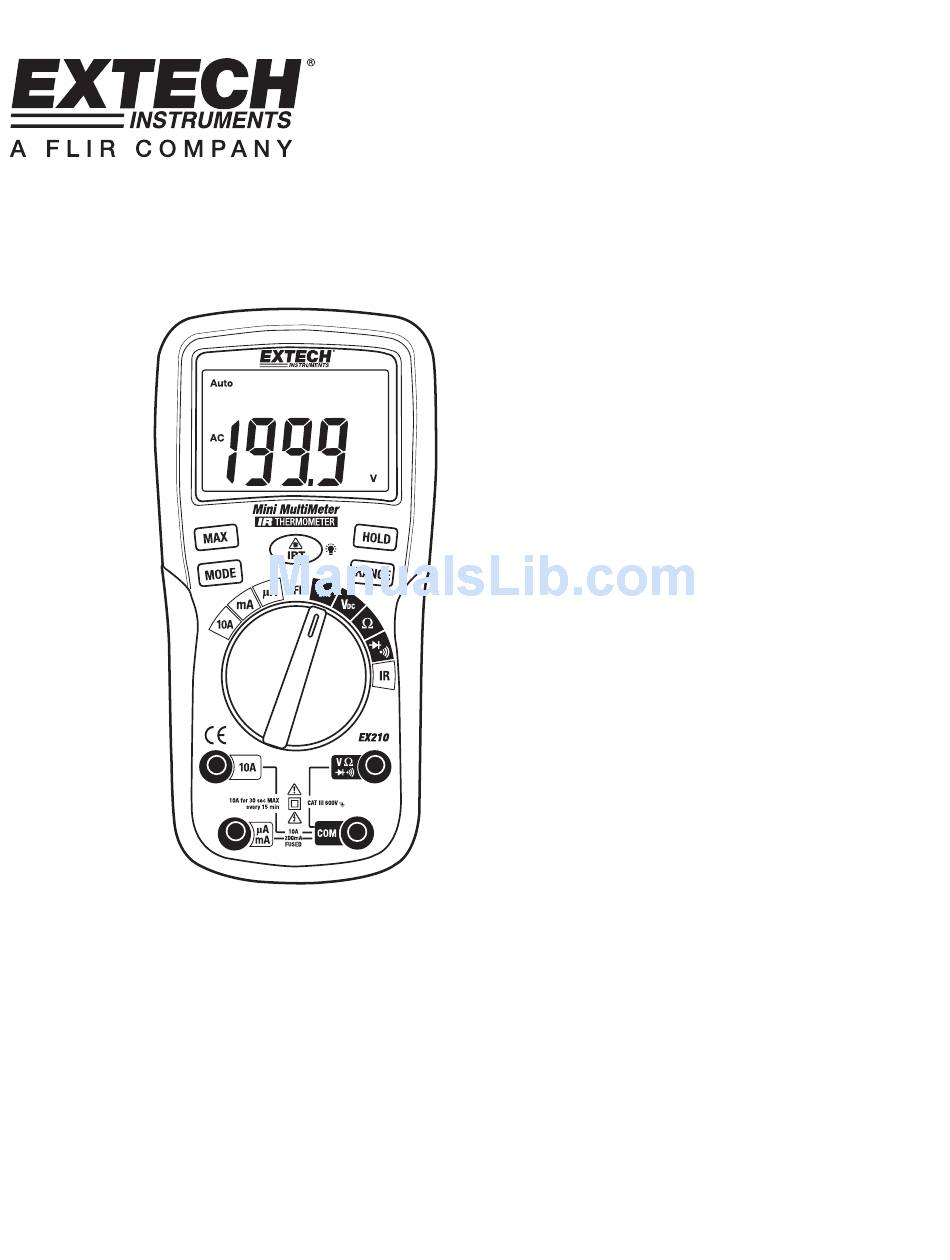

- Page 1 User's Guide Multimeter with IR Thermometer Extech EX210...
-
Page 2: Overvoltage Category

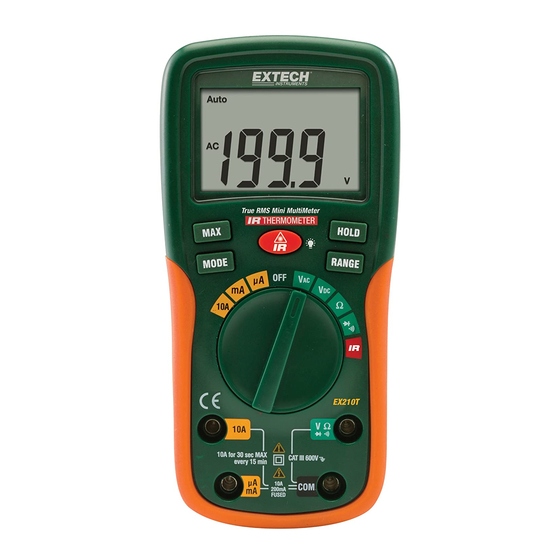

Introduction Congratulations on your purchase of the Extech EX210 Autoranging Multimeter. This meter measures AC/DC Voltage, AC/DC Current, Resistance, Diode Test, and Continuity plus non- contact InfraRed Temperature. Proper use and care of this meter will provide many years of reliable service. - Page 3 In the event that this device will be stored for an extended period of time, remove the batteries. • Expired or damaged batteries can be hazardous to skin. Use suitable hand gloves in such cases. • Do not short-circuit the battery. Do not place the battery near a fire. EX210-EU-EN-V2.1-08/10...
-
Page 4: Safety Instructions
NEVER operate the meter unless the back cover and the battery and fuse covers are in place and fastened securely. If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. EX210-EU-EN-V2.1-08/10... -
Page 5: Controls And Jacks
) (amps) milli (10 ) (volts, amps) Amps kilo (10 ) (ohms) mega (10 ) (ohms) Ω Ohms Volts Alternating current Direct current ºF Degrees Fahrenheit ºC Degrees Centigrade Maximum AUTO Autoranging HOLD Display hold SCAN IR temperature in progress EX210-EU-EN-V2.1-08/10... -
Page 6: Ac/Dc Voltage Measurements
5. For current measurements up to 10A DC, set the function switch to the 10A position and insert the red test lead banana plug into the 10A jack. 6. Connect the test leads in series with the circuit under test. 7. Apply power to the circuit. 8. Read the current in the display. EX210-EU-EN-V2.1-08/10... -
Page 7: Resistance Measurements
4. Touch the test probes to the diode under test. Forward voltage will typically indicate 0.400 to 0.700V. Reverse voltage will indicate “OL”. Shorted devices will indicate near 0V and an open device will indicate “OL” in both polarities. EX210-EU-EN-V2.1-08/10... - Page 8 The meter will not make measurements through glass steam, dust, and smoke. To find a hot spot, aim the meter outside the area of interest then scan across (in an up and down motion) until the hot spot is located. EX210-EU-EN-V2.1-08/10...
-
Page 9: Autoranging/Manual Range Selection
If no button is pressed the auto sleep feature will place the meter in sleep mode after approximately 15 minutes of operation. If this happens, press any button to wake the meter or switch the meter to OFF if it no longer in use. EX210-EU-EN-V2.1-08/10... -
Page 10: Maintenance
/ accumulators at collection points in your community or wherever batteries / accumulators are sold! Disposal: Follow the valid legal stipulations in respect of the disposal of the device at the end of its lifecycle EX210-EU-EN-V2.1-08/10... -
Page 11: Specifications
0.1 mA 2.000 0.001 A ±(3.0% reading + 5 digits) 10 A 0.01 A Note: 10A for 30 sec max NOTE: Accuracy is stated at 18 C to 28 C (65 F to 83 F) and less than 75% RH. EX210-EU-EN-V2.1-08/10... - Page 12 20 MΩ 0.01 MΩ ±4°C Temperature IR -20 to 0°C ±(2.0%rdg or 2°C) 0 to 93°C 93 to 230 ±(3.0%rdg or 3°C) 0.1°C/°F ± 8°F -5 to 32°F 32 to 200°F ±(2.0%rdg or 4°F) 200 to 446°F ±(3.0%rdg or 6°F) EX210-EU-EN-V2.1-08/10...
- Page 13 IEC/EN 61010-1:2001 and IEC/EN 61010-031:2002 to Category III 600V; Pollution Degree 2. Approvals Copyright © 2010 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form. EX210-EU-EN-V2.1-08/10...
