Summary of Contents for Extech Instruments EX470A
Page 1

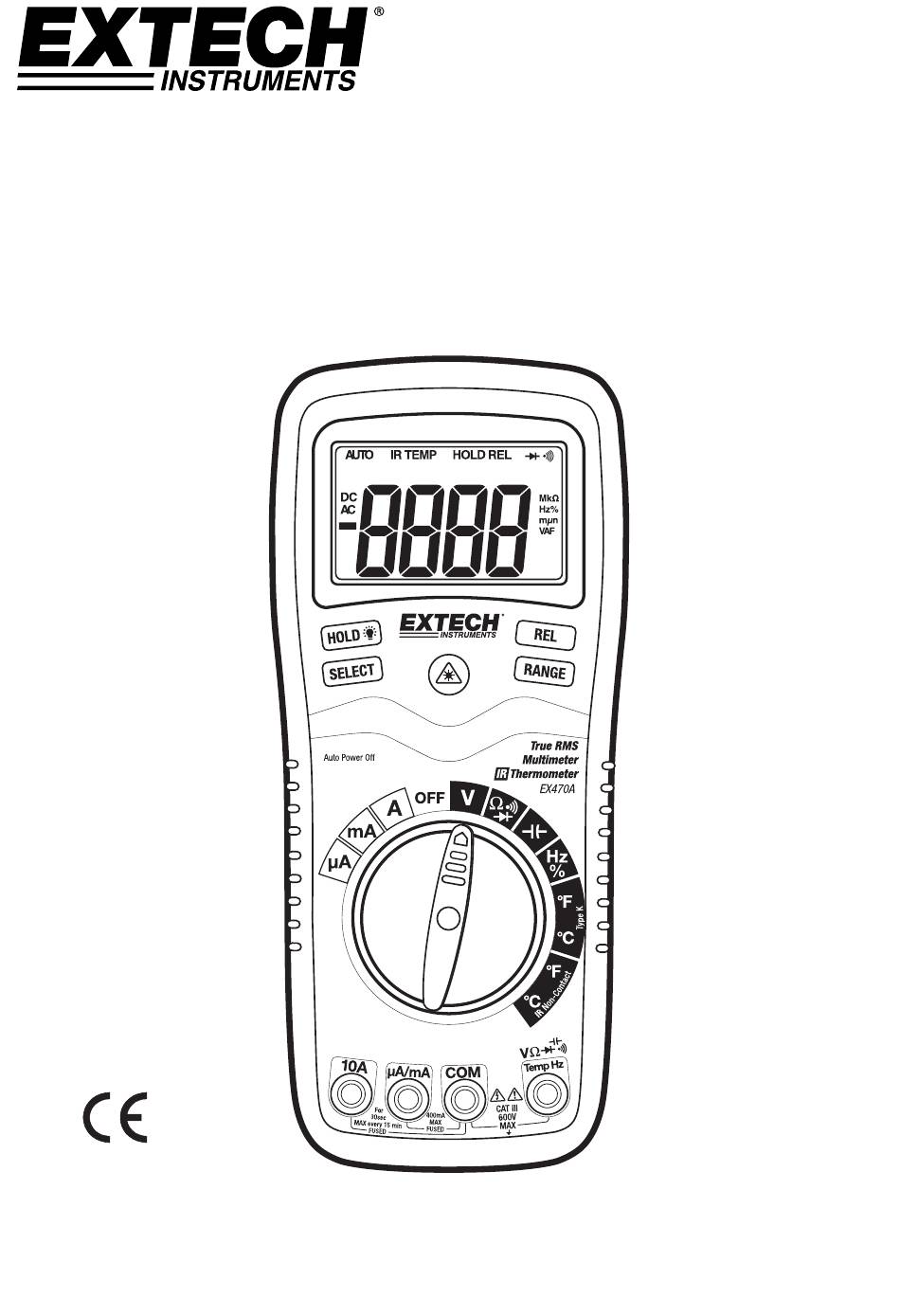

USER MANUAL True RMS Multimeter plus IR Thermometer Extech EX470A...
Page 2

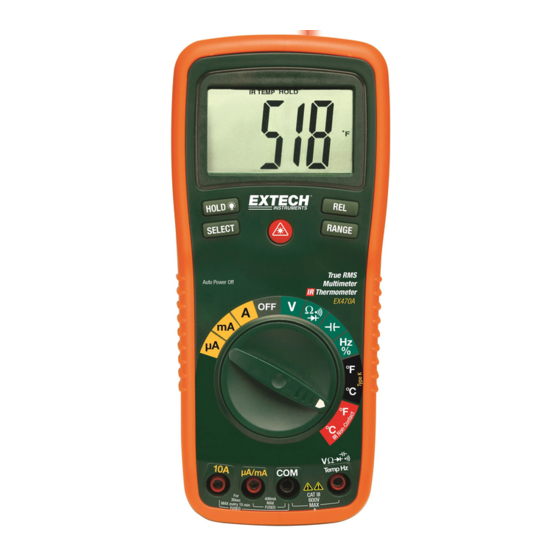

Introduction Congratulations on your purchase of the Extech EX470A True RMS Autoranging Multimeter plus IR Thermometer. This meter measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Duty Cycle, Diode Test, and Continuity plus Thermocouple and Non-Contact IR Temperature. Proper use and care of this meter will provide many years of reliable service. For copies of this user manual in other languages please visit the www.extech.com...
Page 3
Do not directly view or direct the laser pointer at an eye. Low power visible lasers do not normally present a hazard, but may present some potential for hazard if viewed directly for extended periods of time EX470A-en-US_v6.0 6/16...
Page 4
NEVER operate the meter unless the back cover and the battery and fuse covers are in place and fastened securely. NEVER look directly at the laser light source or aim the pointer at an eye. EX470A-en-US_v6.0 6/16...
Page 5
) (volts, amps) Amps kilo (10 ) (ohms) Farads (capacitance) mega (10 ) (ohms) Ohms Hertz (frequency) Volts Percent (duty ratio) Relative Alternating current AUTO Autoranging Direct current HOLD Display hold ºF Degrees Fahrenheit ºC Degrees Centigrade EX470A-en-US_v6.0 6/16...
Page 6
Insert the red test lead banana plug into the positive V jack. 4. Touch the black test probe tip to the negative side of the circuit. Touch the red test probe tip to the positive side of the circuit. 5. Read the voltage in the display. EX470A-en-US_v6.0 6/16...
Page 7
7. Touch the black test probe tip to the negative side of the circuit. Touch the red test probe tip to the positive side of the circuit. 8. Apply power to the circuit. 9. Read the current in the display. EX470A-en-US_v6.0 6/16...
Page 8
4. Touch the test probe tips across the circuit or part under test. It is best to disconnect one side of the part under test so the rest of the circuit will not interfere with the resistance reading. 5. Read the resistance in the display. EX470A-en-US_v6.0 6/16...
Page 9
4. Touch the test probes to the diode under test. Forward voltage will typically indicate 0.400 to 0.700V. Reverse voltage will indicate “OL”. Shorted devices will indicate near 0V and an open device will indicate “OL” in both polarities. EX470A-en-US_v6.0 6/16...
Page 10
WARNING: Do not directly view or direct the laser pointer at an eye. Low power visible lasers do not normally present a hazard, but may present some potential for hazard if viewed directly for extended periods of time. EX470A-en-US_v6.0 6/16...
Page 11
Hz jack. 3. Press the SELECT key momentarily to select “%” in the display. 4. Touch the test probe tips to the circuit under test. 5. Read the % duty cycle on the display. EX470A-en-US_v6.0 6/16...
Page 12
10A or uA/mA input jack and a non-current (green, black or red) function is selected. If this occurs, turn the meter off and reinsert the test lead into the proper input jack for the function selected. EX470A-en-US_v6.0 6/16...
Page 13
1F Temp -50 to 270C 1C 2.0% reading or 2C, 4 F (IR) -58 to 518F 1F NOTE: Accuracy is stated at 65 F to 83 F (18 C to 28 C) and less than 75% RH. EX470A-en-US_v6.0 6/16...
Page 14
7.36” x 3.2” x 2.0” (187 x 81 x 50mm) (includes holster) Safety For indoor use and in accordance with the requirements for double insulation to IEC1010-1 (EN61010-1) 3 edition (2010) Overvoltage Category III 600V, Pollution Degree 2. Patent Notice U.S. Patent 7056012 EX470A-en-US_v6.0 6/16...
Page 15
WARNING: To avoid electric shock, do not operate the meter until the battery cover is in place and fastened securely. NOTE: If your meter does not work properly, check the fuses and batteries to make sure that they are still good and that they are properly inserted. EX470A-en-US_v6.0 6/16...
Page 16
8. Align the center board with the connectors and gently press into place. 9. Replace and secure the rear cover, battery and battery cover. WARNING: To avoid electric shock, do not operate your meter until the fuse cover is in place and fastened securely. EX470A-en-US_v6.0 6/16...
