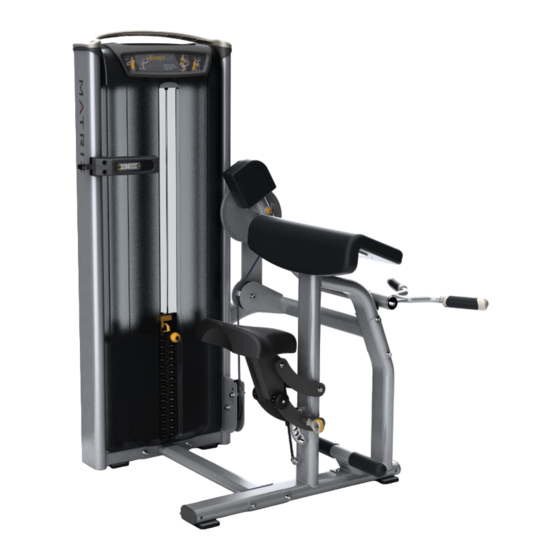

Matrix VS-S40 Owner's Manual

Versa single-station strength bicep curl
Hide thumbs Also See for VS-S40:
Table of Contents

Advertisement

Quick Links

Download this manual
OWNERS MANUAL
Versa Single-Station Strength
VS-S40 Bicep Curl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS-S40 and is the answer not in the manual?

Questions and answers

Related Manuals for Matrix VS-S40

Summary of Contents for Matrix VS-S40

  • Page 1 OWNERS MANUAL Versa Single-Station Strength VS-S40 Bicep Curl...

  • Page 2: Table Of Contents

    Table Of Contents Safety, General Care & Maintenence ..........3 Getting Started (Product Specifications) .......... 5 Assembly Information ................6 Markings ....................7 Parts List ....................8 Installation & Assembly: Value Line Part 1 Weight Stack & User Frame Assembly ......10 Part 2 Arm Assembly ..............13 Part 3 Cable Assembly ..............

  • Page 3: Safety, General Care & Maintenence

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INFORMATION It is the sole responsibility of the purchaser of Matrix products to instruct all individuals, whether they are the end user or supervising personnel on proper usage of the equipment. It is recommended that all users of Matrix exercise equipment be informed of the following information prior to its use.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. WARNING: SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW THESE PRECAUTIONS TO AVOID INJURY! Never allow children on strength training equipment. Teenagers must be supervised at all times while using this equipment.

  • Page 5: Getting Started (Product Specifications)

    GETTING STARTED EXERCISE PLACARD | PRODUCT SPECIFICATIONS | MAINTENANCE CHECKLIST EXERCISE PLACARD PRODUCT SPECIFICATIONS TECH SPECS Overall dimensions 45”L X 50”W X 66”H Light Stack = 475 lbs (216 kg), Heavy Stack = 525 lbs (239 Weight Shipping weight 325 lbs (148 kg) WARRANTY (Valid in USA only) Frame (not coatings) 10 years...

  • Page 6: Assembly Information

    UNPACKING Thank you for purchasing a Matrix product. This machine is an EN957-1 and EN957-2 compliant Class S product. Your Ma- trix product is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the machine.

  • Page 7: Markings

    MARKINGS WARNING LABEL LOCATIONS...

  • Page 8: Parts List

    Parts List DESCRIPTION M10 X 125L Socket Head Cap Screw M10 Flat Washer Wide Cupped Flange User Frame M10 Nylock Nut Lower Connecting Tube M10 X 20L Socket Head Cap Screw Weight Stack Upper Connecting Tube Rear Stack Support M10 Flat Washer (Small Outside Diameter) M8 X 20L Socket Head Cap Screw M8 Flat Washer CAM/Arm Assembly...
  • Page 9 Parts List DESCRIPTION OPTIONAL PREMIUM KIT COMPONENTS Wing Rep Counter Towel Hook ASG Pull Grip Premium Pullpin OPTIONAL SHORT USER KIT Foot Rest M10 X 25L Socket Head Cap Screw M10 Flat Washer...

  • Page 10: Part 1 Weight Stack & User Frame Assembly

    ASSEMBLY PART 1: STACK & USER FRAME ASSEMBLY STEP 1 | WEIGHT STACK TO USER FRAME ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 X 125L SHC M10 Flat Washer Wide Cupped Flange User Frame M10 Nylock Nut Lower Connecting Tube M10 X 20L SHC Weight Stack Install the user frame hardware as shown, but DO NOT FULLY TIGHTEN .
  • Page 11 ASSEMBLY PART 1: STACK & USER FRAME ASSEMBLY STEP 2 | WEIGHT STACK TO USER FRAME ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 X 125L SHC M10 Flat Washer Wide Cupped Flange M10 Nylock Nut M10 X 20L SHC Upper Connecting Tube Install the user frame hardware as shown, but DO NOT FULLY TIGHTEN .
  • Page 12 ASSEMBLY PART 1: STACK & USER FRAME ASSEMBLY STEP 3 | WEIGHT STACK TO USER FRAME ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 X 20L SHC Rear Stack Support M10 Flat Washer (Small Dia.) M8 X 20L SHC M8 Flat Washer Install the user frame hardware as shown.

  • Page 13: Part 2 Arm Assembly

    ASSEMBLY PART 2: ARM ASSEMBLY STEP 1 | WEIGHT STACK CABLE ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY CAM/Arm Assembly Wave (Spring) Washer Ø M10 Flat Washer ( 42mm OD) Black Pivot Cap M10 X 25L SHC Torque hardware to: 77 N-m/57 ft-lbs.

  • Page 14: Part 3 Cable Assembly

    ASSEMBLY PART 3: CABLE ASSEMBLY STEP 1 | EXERCISE ARM ASSEMBLY INSTRUCTIONS & NOTES Cable tension is adjusted by raising or lowering pulley as shown. Note: Nuts for adjustable pulley must be on inside towards weight plates.

  • Page 15: Part 4 Handlebar Assembly

    ASSEMBLY PART 4: HANDLEBAR ASSEMBLY STEP 1 | HANDLEBAR ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 X 20L SHC Tighten to: 77 N-m/57 ft-lbs.

  • Page 16: Part 5 Counter Weight Assembly

    ASSEMBLY PART 5: COUNTER WEIGHT ASSEMBLY STEP 1 | COUNTER WEIGHT ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M8 X 20L SHC M8 Flat Washer Counter Weight Tighten to: 39 N-m/29 ft-lbs.

  • Page 17: Part 6 Pad Assembly

    ASSEMBLY PART 6: PAD ASSEMBLY STEP 1 | PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Bottom Pad M10 X 20L Hex Bolt Install the pad as shown. Tighten to 27 N-m/20 ft-lbs.
  • Page 18 ASSEMBLY PART 6: PAD ASSEMBLY STEP 2 | ARM CURL PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer M10 X 25L SHC Arm Curl Pad Install the pad as shown. Tighten to 27 N-m/20 ft-lbs.

  • Page 19: Part 7 Plastics Assembly

    ASSEMBLY PART 7: PLASTICS ASSEMBLY STEP 1 | SHROUD ASSEMBLY ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Front Shroud Rear Shroud (Not shown) Position hangers in their lowest position Install the weight stack shrouds as shown.
  • Page 20 ASSEMBLY PART 7: PLASTICS ASSEMBLY STEP 2 | TOP CAP ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M8 X 25L SHC M8 Flat Washer (20 mm diameter) Top Cap Install the top cap onto the weight stack as shown. Torque to 17 N-m/147 in-lbs. Position top cap so that the instructional placard faces the user.
  • Page 21 ASSEMBLY PART 7: PLASTICS ASSEMBLY STEP 3 | TOP CAP COVERS INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Top Cap Cover Install the top cap covers.

  • Page 22: Part 8 Premium Kit Assembly

    ASSEMBLY PART 8: PREMIUM KIT ASSEMBLY PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Wing Rep Counter Towel Hook ASG Pull Grip Premium Pullpin Seat Assist Gas Shock I M PO RTA NT NOTI CE PLEASE NOTE: Be sure to remove the insulating sheet when installing the Rep Counter.
  • Page 23 ASSEMBLY PART 8: PREMIUM KIT ASSEMBLY STEP 1 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter - Magnet 1. Remove the (2) top cap covers using a flat blade screw driver. 2. Remove the (4) M8 bolts and 20 mm diameter washers that hold the top cap to the weight stack frame.
  • Page 24 ASSEMBLY PART 8: PREMIUM KIT ASSEMBLY STEP 2 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter - Sensors 1. Assemble Rep Counter sensor base using (4) screws included with the kit. 2. Assemble (3) sensors located per machine chart shown below. Thread zip ties through holes to secure cables Route wires in groove...
  • Page 25 ASSEMBLY PART 8: PREMIUM KIT ASSEMBLY STEP 3 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter 1. Remove and discard hole caps using cau- tion not to scratch the paint. 2. Attach plug to Rep Counter. 3. Assemble Towel Hook (3P) and Rep Counter (2P) using the M8 X 35L SHC bolts provided.
  • Page 26 ASSEMBLY PART 8: PREMIUM KIT ASSEMBLY STEP 4 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Wing Assemble the wing (1P) as shown using the M8 hardware provided with the kit. Tighten to 39N-m (29 ft-lbs.).
  • Page 27 ASSEMBLY PART 8: PREMIUM KIT ASSEMBLY STEP 5 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES ASG Grips Reuse Remove the end caps using a 5 mm Allen wrench. 2. Slide off the grip assembly. 3. Remove inner collars with a 3 mm allen wrench. 4.
  • Page 28 ASSEMBLY PART 8: PREMIUM KIT ASSEMBLY STEP 6 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Pull Pin Remove the pull pin using an adjustable wrench, and replace with the Premium pull pin (5P).
  • Page 29 ASSEMBLY PART 8: PREMIUM KIT ASSEMBLY STEP 6 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Seat Assist Shock Raise the seat to the highest position before adding gas shock (6P) Disassembly and assembly for both ends of shock (Only one end is shown) Shock must be positioned as shown with gas cylinder above piston rod...

  • Page 30: Part 9 Short User Kit

    ASSEMBLY PART 9: FOOT REST ASSEMBLY STEP 1 | FOOT REST ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Foot Rest M10 X 25L SHC M10 Flat Washer Install the foot rest as shown. Tighten to 77 N-m/57 ft-lbs.
  • Page 32 Matrix Fitness 1600 Landmark Drive Cottage Grove WI 53527 matrixfitness.com Toll-free 866.693.4863 Facsimilie 608.839.8687 Versa Bicep Curl Owners Guide Rev.1.2 Copyright © 2013 Matrix Fitness...
