EVALUATION BOARD SOFTWARE INSTALLATION

As mentioned in the Evaluation Board Requirements section, the following system requirements must be met before installing the
evaluation board software:
•
Operating System: Windows 98, Windows Me, Windows 2000, or Windows XP.
•
Display: Designed for XGA with 1024 × 768 display resolution, 800 × 600 minimum recommended display resolution.
•
PC: A Pentium II-class or higher recommended.
•
Disk Space: 6 MB or more.
•
I/O Port: USB port.
Follow the instructions below to install the AD9510 evaluation board software. (Note: Do not connect the evaluation board to the
computer until after the software installation has been completed.)
1. Log on with administrative privileges.
2. Uninstall any previous version of the AD9510 evaluation software.
3. Insert the AD9510 Evaluation Software CD-ROM into your computer and run the setup.exe from the software folder.
Follow the installation software's instructions on screen.

CONNECTING THE USB

Windows 98, Windows ME, and Windows 2000
1. Power up the evaluation board.
2. Connect the evaluation board to the computer using a USB cable.

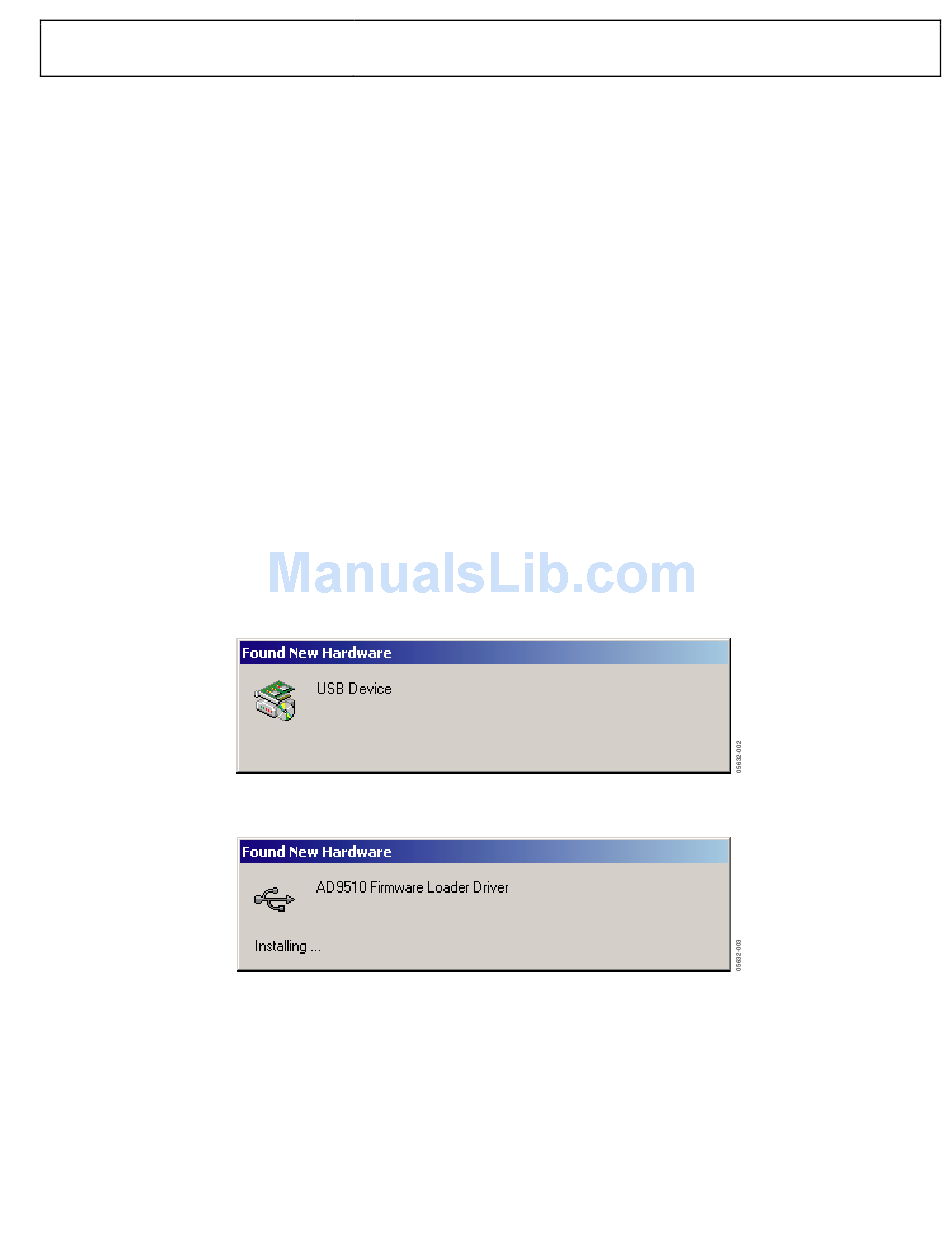

3. When the USB cable is connected, a pop-up window (Figure 2) appears and then disappears.
4. Next, another pop-up window (Figure 3) should appear and disappear.
Figure 2.
Figure 3.
