AD9510/PCB
Control Functions Section
The AD9510 has a number of sync and reset functions. These are controlled by the drop-down box, check boxes, and command buttons
located on the lower left-hand side of the main interface window (see Figure 28).
FUNCTION PIN SETTINGS
SYNC MODE SETUP
WINDOW
LOAD CONTROL BUTTON

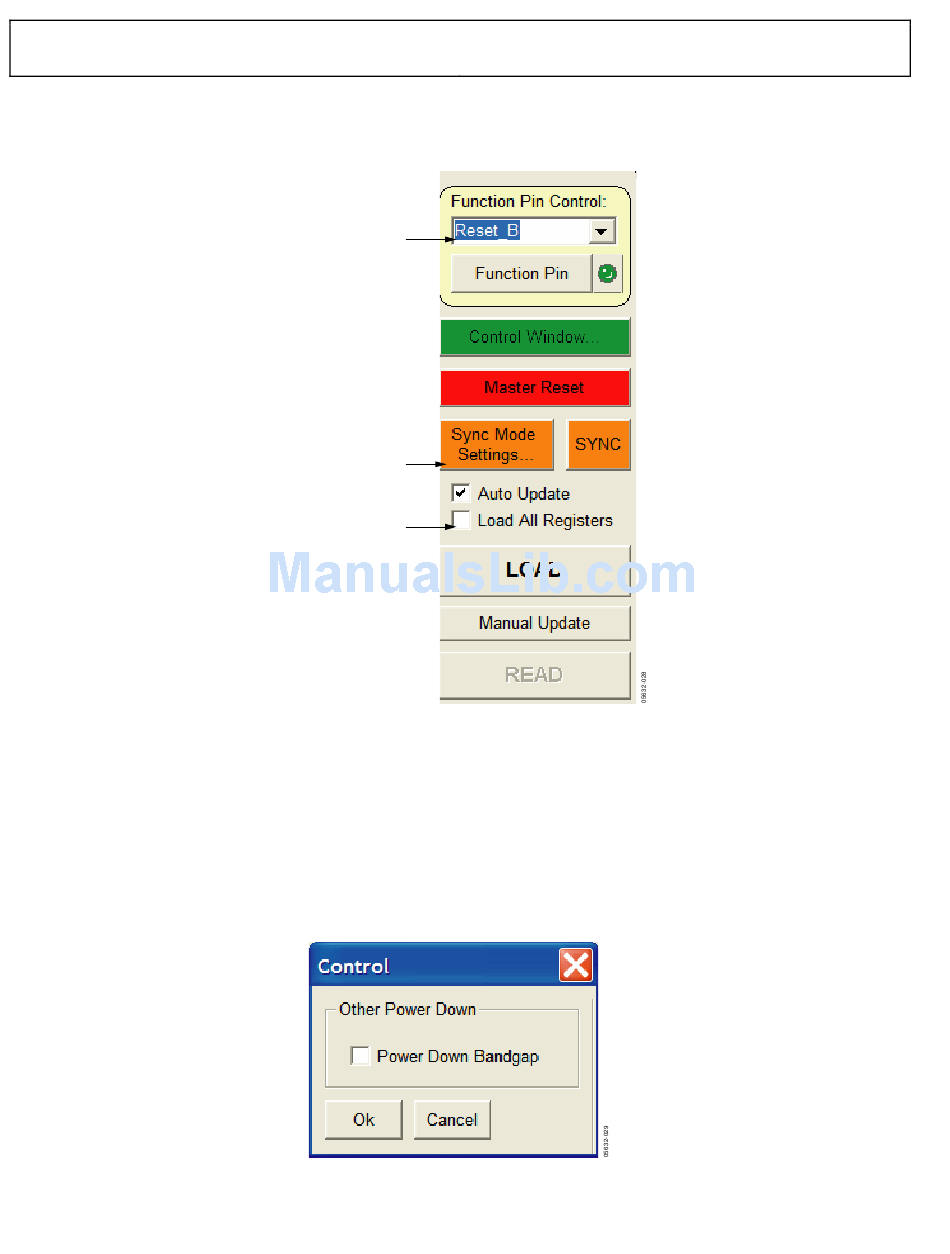

Figure 28. Control Functions Section, Main Interface Window
Function Pin Settings
The function pin can be set for three different functions. The three options are Reset_B, Sync_B, and Powerdown_B, which are accessible
from the drop-down menu under Function Pin Control. They are activated by toggling the function pin button. The function pin
command button sets the input to function pin high or low. If the light next to the command button is green, the function pin is high. If it
is black, the function pin is low. For more information on these three functions, please refer to the AD9510 data sheet.
Control Check Window
The control window command button opens up the control check window (see Figure 29).This window is used to control miscellaneous
power down and control bits that do not fit into any specific category. Currently, it only contains band gap power down.
Figure 29. Control Check Window
Rev. 0 | Page 22 of 28
