AD9510/PCB
LOCK DETECTION
ANTI-BACKLASH
PULSE
For more information on any of these settings, please refer to the AD9510 data sheet.
Charge Pump Settings Window
The charge pump settings window (Figure 20) allows you to select one of four different charge pump modes: tri-state, pump up, pump
down, and normal operation. For more information on the four charge pump settings, please refer to the AD9510 data sheet.

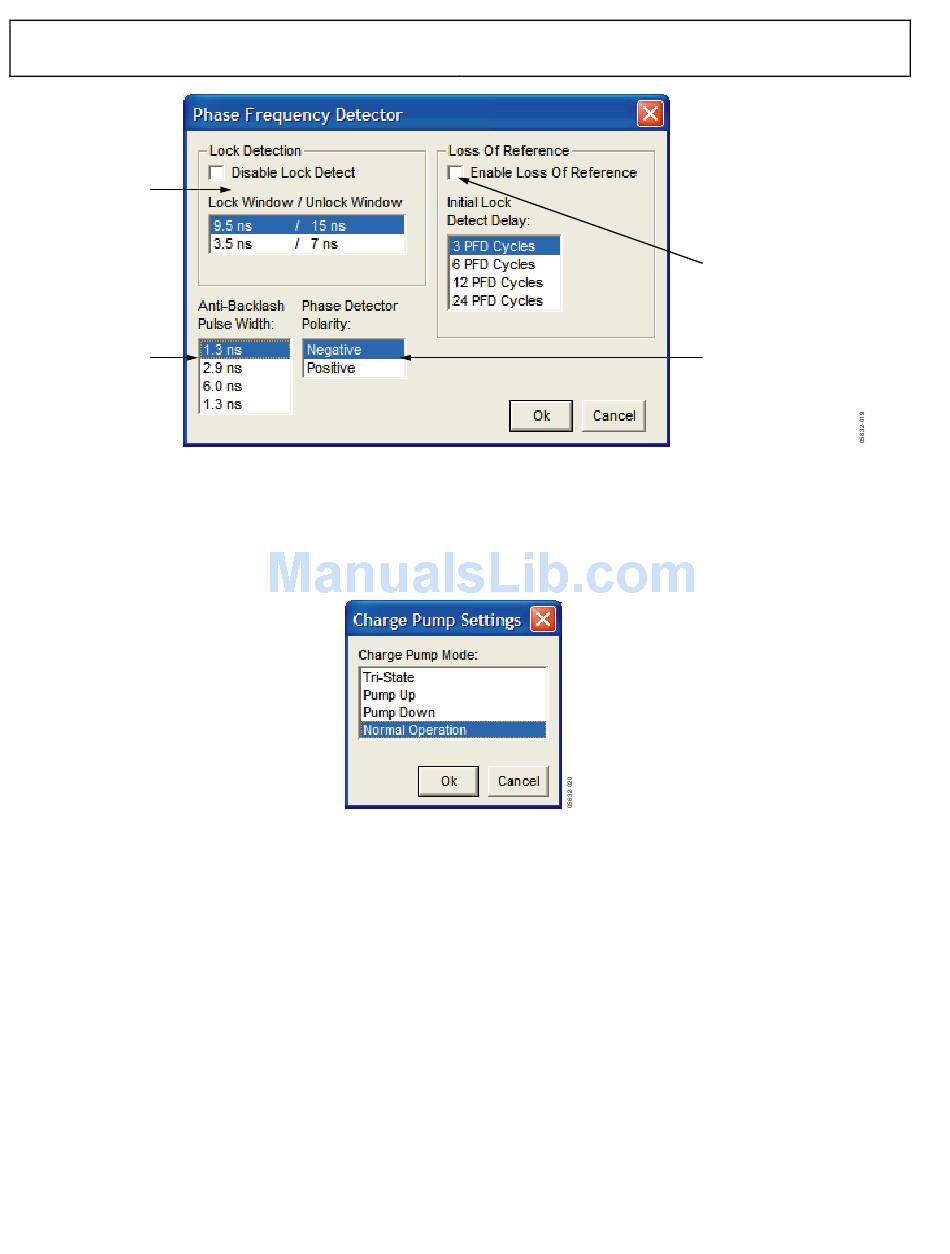

Figure 19. Phase Frequency Detector Window
Figure 20. Charge Pump Settings Window
Rev. 0 | Page 16 of 28
LOSS OF REFERENCE
PHASE DETECTOR POLARITY
