Cash Drawer Option

The printer provides a DB15 connector to support the use of 24v cash drawer applications.
The Draw Kick-out solenoid current must be 1 amp or less to avoid current overloads. This
option is only available when using the STL mode.
3.8 AUX Option
The AUX port option or auxiliary port on the printer is for custom application support.
3.9 MICPrinter USB Windows Driver
MICPrinter is a driver that allows most traditional Windows applications to print to a
Microcom printer equipped with fast USB capability. The Micprinter utility may also be used
in a command line environment if more than one device instance is needed. The
MicOptions GUI will only support one device at a time
The installation of the driver will require that the user has Administration privileges on the
host computer to complete the installation. Please note that the drivers should be installed
before connecting the printer and turning it on.
The first step would be to execute the MICPrinter installer (MICPrinter-Setup.exe) to install
the utility onto your system.
The first screen will be similar to:
3-10
Pin 1 - DR1
Pin 2 - DO
Pin 3 - DR2

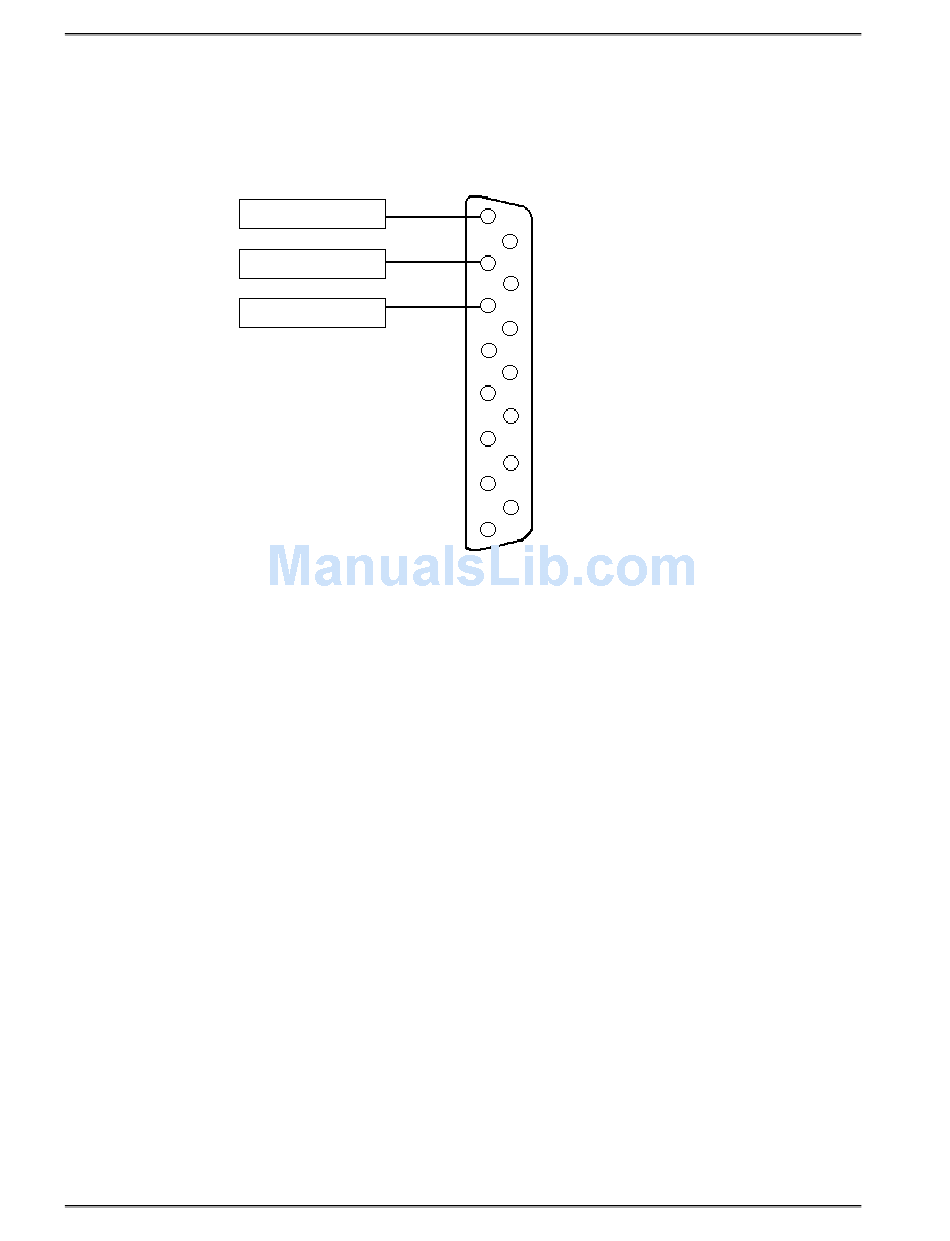

Figure 3-3 Cash Drawer Pin-out
