Microcom 438TC Operator's Manual page 23

Chapter 3 Getting Started

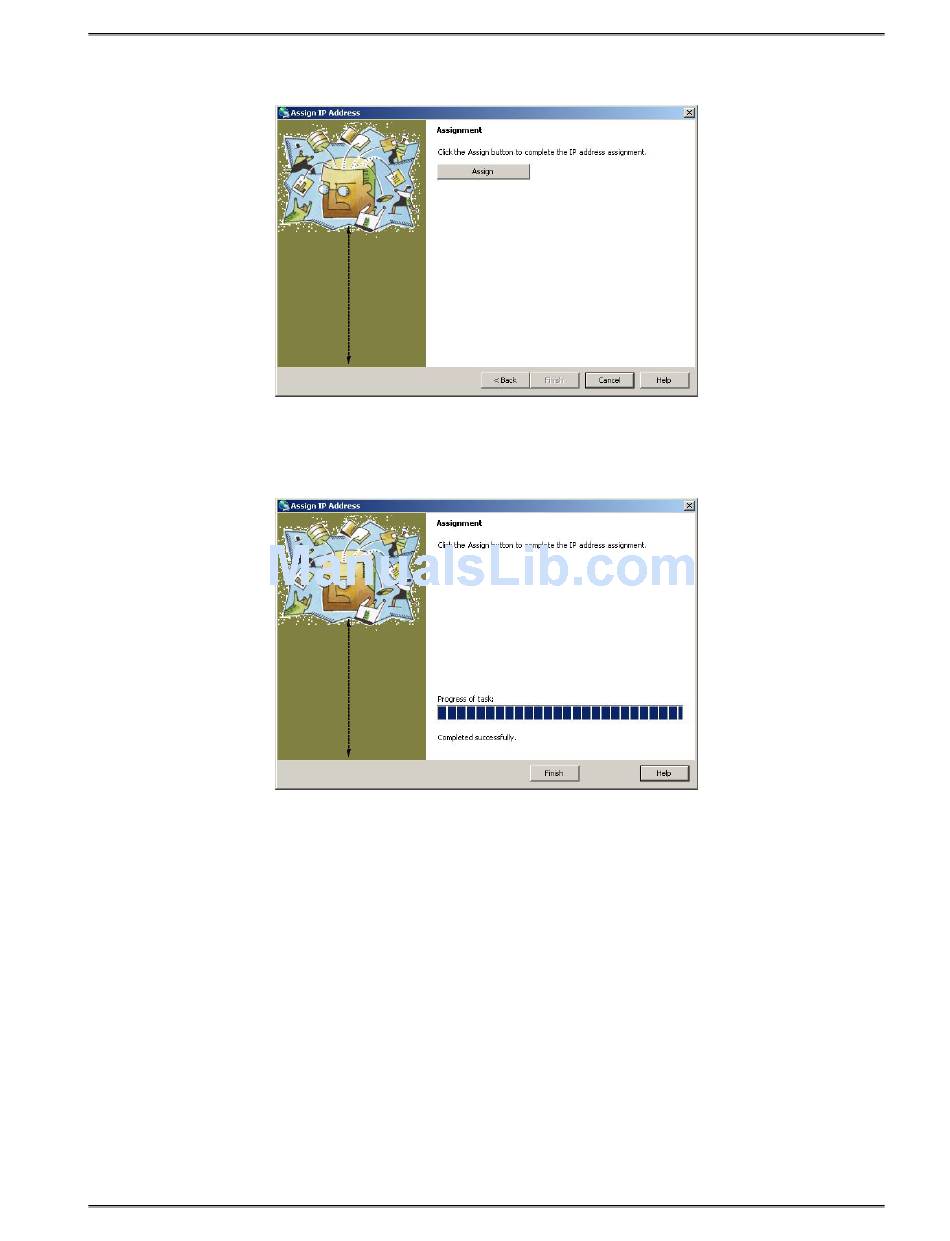

The next screen prompts you to confirm your selection by pressing the Assign button.
Once the task is complete, select the Finish button to return to the main Device Installer
screen.
The XPORT device is now configured. Before the printer will use the Ethernet port, the
printer needs to have the Ethernet port selected as the active port.
Configuring the printer to use Ethernet:
Connect to the printer using either the Serial or USB port and a VT100 terminal emulation
software package at 115200,n,8,1 serial parameters. Please note: Before using the USB
port, the Prolific USB to Serial driver must be installed. The process below shows how to
configure the Ethernet port using Hyperterminal.
Connect to the printer using a Serial or USB connection.
Install media/paper into the printer.
438TC Operator's Manual - 880050-0100 3-7
