Summary of Contents for Fieldmann FZR 3004-B
-
Page 1: Illustrated Attachment
FZR 3004-B/FZR 3007 BS... - Page 2 Obrazová příloha FZR 3004-B/FZR 3007 BS...
- Page 3 Obrazová příloha...
-
Page 4: Table Of Contents

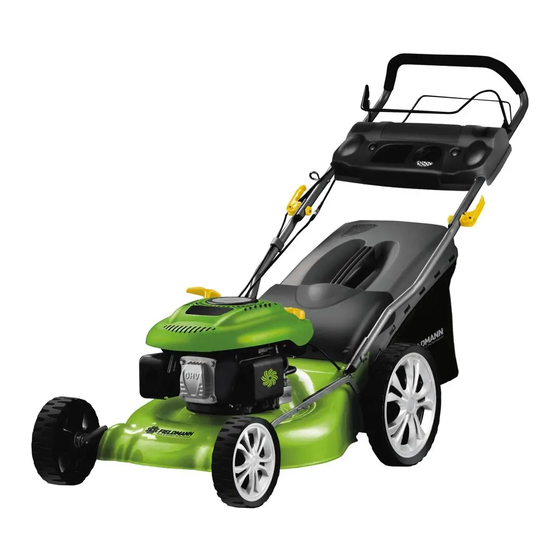

Instruction manual SELF-PROPELLED LAWN MOWER USER‘S MANUAL Thank you for purchasing this self-propelled garden lawnmower. Before you start using it, please, carefully read this user‘s manual and save it for possible future use. CONTENTS ILLUSTRATED ATTACHMENT .......................... 2–3 1. GENERAL SAFETY INSTRUCTIONS ........................6 2. -
Page 5: General Safety Instructions
The user‘s manual also contains operating, maintenance and repair instructions. The manufacturer takes no responsibility for accidents or damages resulting from not following the instructions in this manual. FZR 3004-B/FZR 3007 BS... -
Page 6: Explanation Of Instruction Labels On The Machine
Explanation of instruction labels on the machine 2. EXPLANATION OF INSTRUCTION LABELS ON THE MACHINE General danger warnings. Attention, rotating blades! Before putting into operation, carefully read the user‘s manual. Sharp blade/s. Protect yourself against injury and loss of fingers. Attention, rotating blades! Watch out for objects de ected by the rotating blade! Keep other people away from the work area. -
Page 7: Machine Description And Included Contents
Bearing 4 pieces Wheels 2 pieces Wheel center 2 pieces Nuts 2 pieces Washer 2 pieces User’s manual If there are parts missing or they are damaged, please contact the retailer from whom you bought the machine. FZR 3004-B/FZR 3007 BS... -
Page 8: Lawnmower Assembly
Lawnmower assembly Putting into operation 4. LAWNMOWER ASSEMBLY The lawnmower is supplied disassembled. The complete adjustable handle and collection box must be assem- bled before starting work. Proceed step by step according to the user‘s manual and use the pictures as a guide so that the assembly process is as easy as possible. - Page 9 6. Change the oil after every 25 hours of operation or each season. 7. You may need to change the oil more often under dusty, dirty conditions. See „TO CHANGE ENGINE OIL“ in the Maintenance section of this manual. Note: Check oil level before each use. FZR 3004-B/FZR 3007 BS...
- Page 10 Putting into operation ADD GASOLINE (see pic. 7) Fill fuel tank to bottom of tank filler neck. Do not overfill. Use fresh, clean, regular unleaded gasoline. Do not mix oil with gasoline. Recommendation: Purchase fuel in quantities that can be used within 30 days to assure fuel fresh. ATTENTION: Wipe off any spilled oil or fuel.
-
Page 11: Operating Instructions
Turn on and operate the machine as described in the user‘s manual, carefully follow all instructions. Work only during good visibility or ensure sufficient artificial lighting. Never operate the machine in enclosed, poorly ventilated rooms, or in the vicinity of ammable or explosive liquids, fumes or gases. FZR 3004-B/FZR 3007 BS... - Page 12 Operating instructions Never use the lawnmower in places where there is danger of contact with a water surface (e.g. in direct vicin- ity of garden ponds, in-ground pools, etc.). Before you take off or empty the collection box, turn off the motor and wait until the blade has come to a com- plete stop.
- Page 13 While transporting the lawnmower makes sure the fuel tank is empty. Transport fuel only in approved cans. Regularly check the cap of the fuel tank. It must be tight to prevent leaking the fuel. FZR 3004-B/FZR 3007 BS...
-
Page 14: Maintenance And Storage
Operating instructions | Maintenance and storage Protect the environment: Be careful not to fuel leakage and contamination of soil materials. Do not refuel the gasoline in enclosed, poorly ventilated rooms. It can be very dangerous. Risk of fire. Do not inhale vapors from the fuel. Refuel with protective gloves. 7. - Page 15 Do not dispose of used oil filter in a rubbish bin. Take it to a recycling unit. Replace the silencer if faulty. When carrying out repairs, always use original spare parts. Always seek professional help when the carburetor requires adjustment. FZR 3004-B/FZR 3007 BS...
-
Page 16: Technical Specifications
Maintenance and storage | Technical specifi cations Clean the air filter according to the directions. When, after many years of service, your machine needs to be replaced or is no longer required, we recom- mended that the machine is returned to your distributor for recycling. Genuine spare parts are supplied by service workshops and by many dealers. -
Page 17: What To Do „When
This product meets all the basic EU regulation requirements that relate to it. Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes FZR 3004-B/FZR 3007 BS...
