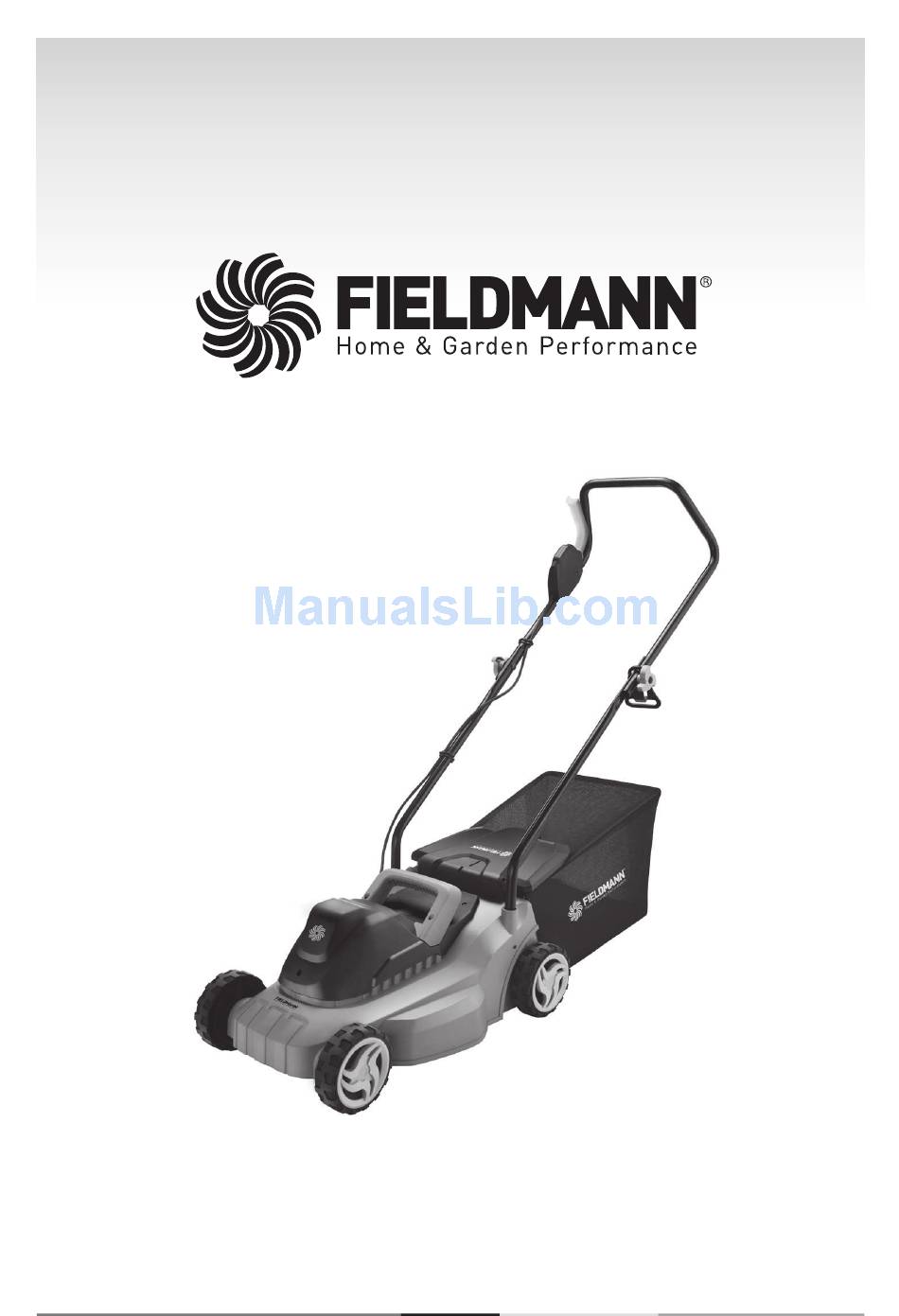

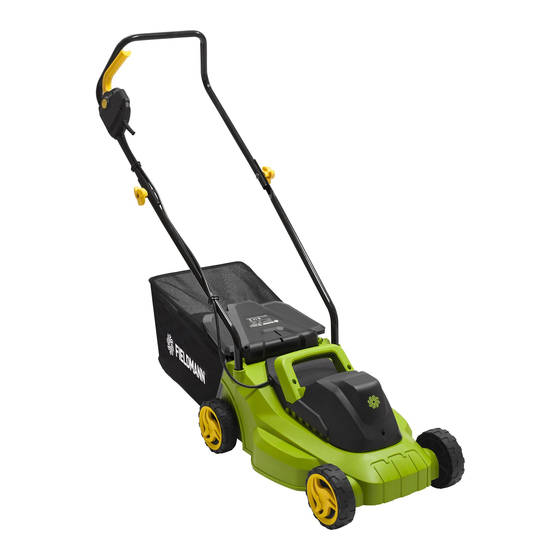

- Page 1 FZR 2020-E...
- Page 3 FZR 2020-E...
- Page 5 FZR 2020-E...
-
Page 6: Table Of Contents
Table of contents Electric Lawnmower OPERATING INSTRUCTIONS Thank you for purchasing this electric rotary lawnmower. Before you start using it, ple- ase read carefully this operating manual and keep it for future reference. TABLE OF CONTENTS PICTURE ANNEX..........................3 GENERAL SAFETY REGULATIONS....................8 Important safety notices Packaging Instructions for use... -
Page 7: General Safety Regulations
Adherence to the attached instructions for use is a precondition for the proper use of the machine. The operation manual includes also instructions for operation, maintenance and repairs. The manufacturer does not take any responsibility for accidents or damages resulting from the failure to adhere to this manual. FZR 2020-E... -
Page 8: Symbols
Symbols 2. SYMBOLS Read the operating instructions before using this machine. Keep bystanders away. Beware of sharp blades. Blades continue to rotate even after the engine has been switched off. Before maintenance or if the cable is damaged, unplug the machine from the mains. Keep the power supply cable away from the blades. -
Page 9: Machine Description And Package Content
2x bolt for attaching the lower part of the handle 2x nut and bolt for joining the lower and upper part of the handle 1x supply cable holder 1x grass catcher box 4x wheel 4x split pin and washer for mounting the wheel 4x wheel cover FZR 2020-E... -
Page 10: Principles Of Working Safety
Principles of working safety 4. PRINCIPLES OF WORKING SAFETY Never use the equipment if the supply cable is damaged or visibly worn out. If you connect the lawnmower to the power source using a damaged cable and subsequently touch a spot with defective insulation before disconnecting the lawnmower from the power source, you expose yourself to the risk of electric shock. - Page 11 Never use the lawnmower while persons, especially children, or pets are nearby. Keep in mind that the user of the equipment is fully responsible for possible injuries or damage to property resulting from operation of the equipment. FZR 2020-E...
- Page 12 Principles of working safety Preparation for operation While mowing, always wear appropriate footwear and long trousers. Do not operate the lawnmower when barefoot or wearing open sandals. Prior to commencement of the work, thoroughly inspect the working area and remove all objects which can be thrown by the machine.
-
Page 13: Purpose Of Use
Maximum mowing area recommended for this model is 450 sq. m. What this lawnmower is not intended for Using the FIELDMANN lawnmower for purposes other than those specified above is not permitted by the manufacturer. The manufacturer disclaims any liability for possible personal injury or damage to property caused by any such use;... -
Page 14: Lawnmower Handle Assembly
Lawnmower handle assembly | Grass catcher box assembly | Cutting height adjustment 6. LAWNMOWER HANDLE ASSEMBLY (Fig. A) Insert both ends of the lower parts of the handle into the respective holes and secure them using bolts (A1). Attach the supply cable holder to the upper part of the handle (A2) Attach the upper part of the handle using bolts and star-shaped nut (A3). -
Page 15: Extension Cable Attachment
The safety cut-out will only reset when the switch lever 1 is released. Clear any obstructions and wait for a few minutes for the safety cut-out to reset. During this time do not operate the switch lever 1 as FZR 2020-E... -
Page 16: Maintenance
Mowing | Maintenance | Cutting blade maintenance this will prolong the time to automatically reset the safety cut-out. If the problem is repeated, we recommend increasing the cutting height to reduce the load of the engine. 12. MAINTENANCE ATTENTION! Before removing the grass catcher box, stop the lawnmower and unplug the plug of the extension cable from the socket outlet. -
Page 17: Storing The Lawnmower
Let the lawnmower cool down for a few minutes and then increase the cutting height During this time do not operate the switch lever 1 as this will prolong the time to automatically reset the safety cut-out FZR 2020-E... -
Page 18: Technical Data
/ Excessive cutting blade blade noise during operation 16. TECHNICAL SPECIFICATIONS Lawnmower .............................. FZR 2020-E Rated voltage .............................230 - 240V Rated frequency ..............................50 Hz Rated input................................1 200 W Idle operation ..............................3300 rpm. Width of cut ..............................320 mm Weight ................................... -
Page 19: Declaration Of Conformity
Declaration of conformity 17. DECLARATION OF CONFORMITY Product/Name: ELECTRIC LAWNMOWER / FIELDMANN Type/Model: FZR 2020 E.....................230V,1200W,IPX4 The product complies with the following directives: The Directive of the European Parliament and the Council No. 2006/95/EC dated 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits. -
Page 20: Liquidation
Disposal 18. DISPOSAL INSTRUCTIONS AND INFORMATION ON DISPOSAL OF USED PACKAGING. Put any used package material to the place determined by the municipality for waste disposal. DISPOSAL OF USED ELECTRIC AND ELECTRONIC EQUIPMENT This symbol on products or accompanying documents means that used electric or electronic products must not be put to ordinary municipal waste. -
Page 21: Warranty
Should you require replacement of any components, always insist on using original spare parts. The warranty does not cover any damage caused by the use of assembly parts. This warranty in no way affects your statutory rights. FZR 2020-E...
