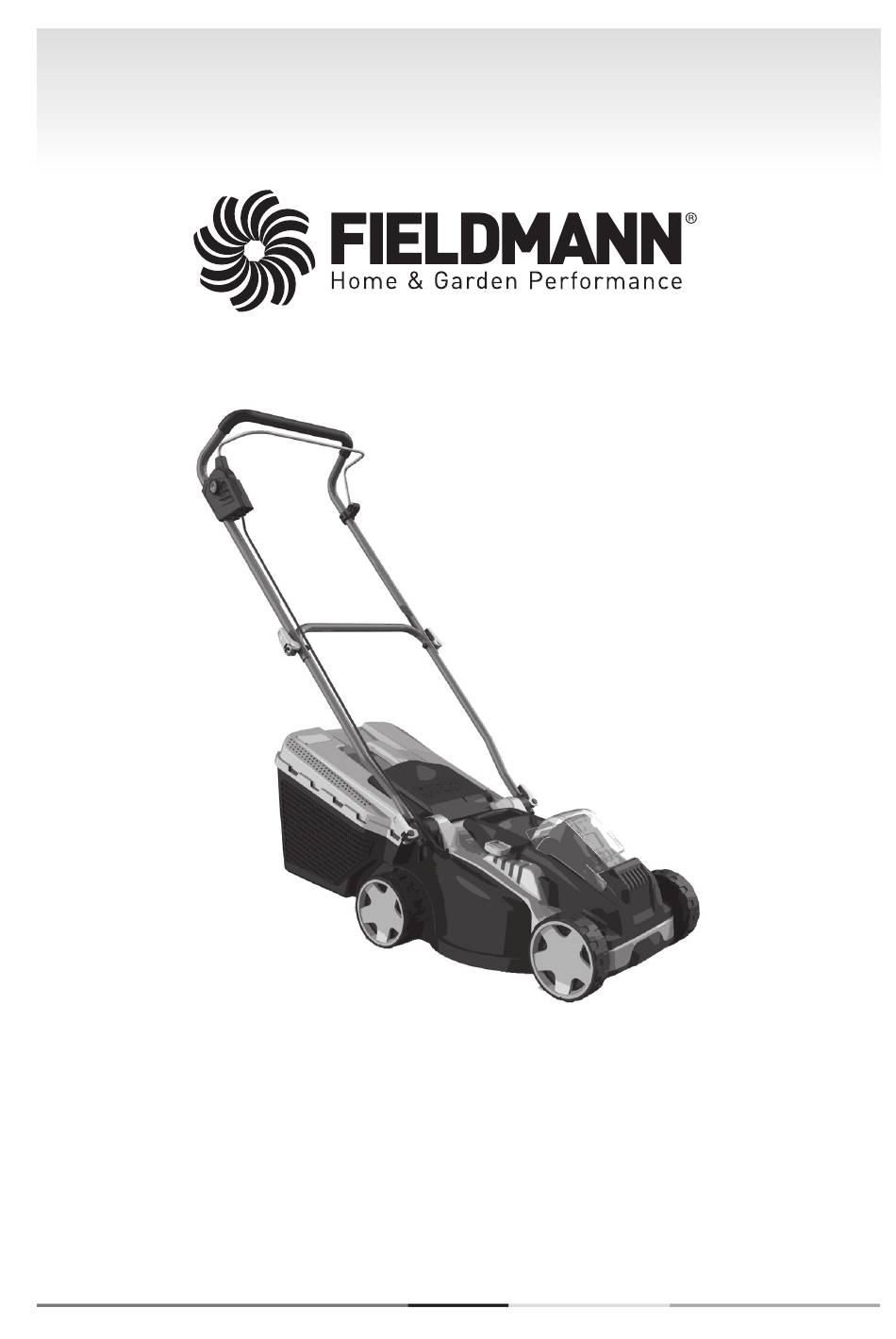

- Page 1 FZR 2110-LI...
-
Page 2: Table Of Contents
Battery-powered LAWN MOWER INSTRUCTIONS FOR USE Thank you for purchasing this rotary electric lawn mower. Before you start using it, please read this user manual carefully and save it for future use. TABLE OF CONTENTS 1. GENERAL SAFETY REGULATIONS ..........................4 Important safety notice ............................4 Packaging ..................................4 User manual ...................................4... -
Page 3: General Safety Regulations
User manual. The user’s manual also contains operating, maintenance, and repair instructions. The manufacturer assumes no responsibility for accidents or damages arising from failure to comply with these instructions. FZR 2110-Li... -
Page 4: Symbols
Symbols 2. SYMBOLS Read the manual with the instructions before using this machine. Bystanders must be at a safe distance. Be careful of the sharp blade edges. The blades continue to rotate even after the motor is turned off. Before carrying out maintenance or if the power cable is damaged, disconnect the plug from the mains. -
Page 5: Description (Fig. 1.)
2. Top part of the handle 3. Handle fast clamp 4. Bottom part of the handle 5. Transport handle 6. Safety lock 7. Quick-release lower handle 8. Grass catcher cover/rear defl ector 9. Start/stop trigger safety lock PIC. 1 FZR 2110-Li... -
Page 6: Basic Work Safety
Basic work safety 4. BASIC WORK SAFETY IMPORTANT ACCUMULATOR SAFETY INSTRUCTIONS Batteries are a chemical source of electrical energy, containing chemical compounds that can cause injury to health, property or the environment. Therefore, handle them with caution. The battery is ready to supply power at any time, even in undesirable circumstances! ATTENTION! even with a partially charged battery, a short circuit may occur and damage it. -
Page 7: Other Risks
The user is responsible for safety when working with the machine. Never use the machine if any of its safety items are missing or not in full working order. FZR 2110-Li... -
Page 8: Before You Start Using The Lawn Mower
Basic work safety BEFORE YOU START USING THE LAWN MOWER Carefully read all the instructions provided in this user manual. Thoroughly get to know the machine's control elements and the basics for correct use. Never let children or anyone who you are not certain know the controls and the work safety rules for this machine operate it on their own. -
Page 9: Maintenance And Storage
Immediately replace worn out or damaged parts. This will help your lawnmower to operate safely. When setting adjustable elements, take care not to clamp your fi ngers between the moving blades and the fi xed part of the machine. Let the motor cool down before storing the lawnmower in an enclosed area. FZR 2110-Li... -
Page 10: Assembly
Assembly 5. ASSEMBLY Assembly is simple if you follow the instructions below: 5.1 HANDLE Insert the lower part of the handle into the chassis of the mower (see fi g. 2a) and secure the screws from the side of the mower. Attach the upper handrail to the lower handle with screws and a nut with a quick release lever (see Fig. -
Page 11: Assembling And Mounting The Grass Catcher
Note: The lawnmower can be used without the grass catcher. The safety cover in the vertical position then directs the grass clippings. Fig. 3b They are lined up in the following way behind the lawn mower. Fig. 3c FZR 2110-Li... -
Page 12: Operation
Operation 6. OPERATION 6.1 SETTING THE MOWING HEIGHT ATTENTION! Before setting the mowing height, always make sure that the lawnmower is turned off and the blade is not moving. ATTENTION: The blade will rotate for several seconds after the lawn mower is turned off. A rotating blade can cause injuries. -
Page 13: Switching The Mower On/Off/Charging
4. It is not necessary to fully discharge the battery before recharging. This battery has no memory effect. 5. Two or three initial charge/discharge cycles may be required to achieve maximum runtime/capacity. 6. Do not store the battery in an environment below 10° C. Fig. 7 FZR 2110-Li... -
Page 14: Technical Specifications
Technical specifications 7. TECHNICAL SPECIFICATIONS Model FZR 2110-Li Power source 40V battery, 2Ah Lithium Charging time 1 hour Idling speed 3,300 rpm Cutting width (blade length) 320 mm Mowing heights 20-56 mm Grass catcher volume 30 l Empty weight 10 Kg... -
Page 15: Troubleshooting
Repair the mower before starting it again. The blade is not balanced. If vibration persists, contact a service centre Balance the blade evenly by grinding each cutting edge. FZR 2110-Li... -
Page 16: Maintenance
Before using the machine, carry out all necessary repairs and maintenance. If, despite regular maintenance, the machine does not work, please contact our customer service, the repair should be carried out by our contractual partner in one of the specialised Fieldmann workshops. 9.1 REPLACING THE BLADE For this task, we recommend that you contact an authorised service centre. -
Page 17: Battery Care
For optimal performance, we recommend that you charge the battery every two months while not in use. ATTENTION: Fully charge the battery before storing. ATTENTION: Do not store the battery in places where the temperature drops below 10° C FZR 2110-Li... -
Page 18: Disposal
Disposal 10. DISPOSAL INSTRUCTIONS AND INFORMATION ON DISPOSING OF USED PACKAGING MATERIALS Dispose of used packaging material at a site designated for waste in your municipality. DISPOSING OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. - Page 22 A FAST Hungary Kft. (2310, Szigetszentmiklós, Kántor u. 10) mint a termék magyarországi im- portőrea jótállási jegyen feltüntetett típusú és gyár- tási számú készülékre jótállást biztosít a fogyasztók számára az alábbi feltételek szerint: 2310, Szigetszentmiklós Kántor u. 10...
