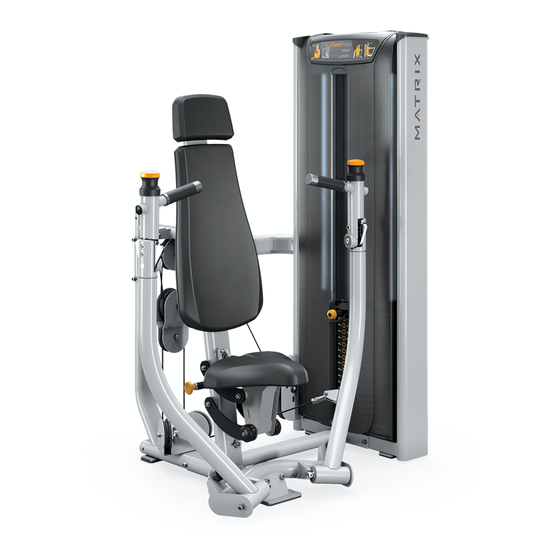

- Page 1 OWNERS MANUAL Versa Single-Station Strength VS-S13 Converging Chest Press G1_OM_Chest Press Rev 1.1.indd 1 11/19/13 4:21 PM...
-
Page 2: Table Of Contents
Table Of Contents IMPORTANT SAFETY INFORMATION It is the sole responsibility of the purchaser of Matrix products to instruct all individuals, whether they are the end user or supervising personnel on proper usage of the equipment. Safety, General Care & Maintenence ...............3 It is recommended that all users of Matrix exercise equipment be informed of the following information prior to its use. -
Page 3: Getting Started (Product Specifications)
IMPORTANT SAFETY INSTRUCTIONS GETTING STARTED EXERCISE PLACARD | PRODUCT SPECIFICATIONS | MAINTENANCE CHECKLIST EXERCISE PLACARD WARNING: This product contains chemicals known to the State of Califor- nia to cause cancer and birth defects or other reproductive harm. WARNING: SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW THESE PRECAUTIONS TO AVOID INJURY! Never allow children on strength training equipment. -
Page 4: Markings
UNPACKING Thank you for purchasing a Matrix product. This machine is an EN957-1 and EN957-2 compliant Class S product. Your Ma- trix product is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the machine. -
Page 5: Parts List
Parts List Parts List DESCRIPTION DESCRIPTION M10 X 105L Socket Head Cap Screw Front Shroud M10 Flat Washer Rear Shroud Narrow Cupped Flange M8 X 25L SHC M10 Nylock Nut M8 Flat Washer (Ø20 mm) Upper Connecting Tube Top Cap M10 X 20L Socket Head Cap Screw Top Cap Cover Weight Stack Frame... -
Page 6: Part 2 Arm Assembly
ASSEMBLY ASSEMBLY PART 1: WEIGHT STACK TO USER FRAME ASSEMBLY PART 2: ARM ASSEMBLY STEP 1 | WEIGHT STACK TO USER FRAME INSTRUCTIONS & NOTES STEP 1 | RIGHT & LEFT ARM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY DESCRIPTION QUANTITY M10 X 105L SHC Right Arm Assembly M10 Flat Washer... -
Page 7: Part 3 Cable Assembly
ASSEMBLY ASSEMBLY PART 2: ARM ASSEMBLY PART 3: CABLE ASSEMBLY STEP 2 | RIGHT & LEFT ARM ASSEMBLY INSTRUCTIONS & NOTES STEP 1 | WEIGHT STACK CABLE ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY DESCRIPTION QUANTITY M12 X 25L SHC M10 Flat Washer M12 Flat Washer M10 Nylock Nut Pulley... -
Page 8: Spacer
ASSEMBLY ASSEMBLY PART 3: CABLE ASSEMBLY PART 3: CABLE ASSEMBLY STEP 2 | WEIGHT STACK CABLE ASSEMBLY INSTRUCTIONS & NOTES STEP 3 | USER FRAME CABLE ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY DESCRIPTION QUANTITY M8 X 50L SHC M10 Washer Spacer M10 Nylock Nut Cable Tie Rod End... -
Page 9: Part 4 Seat Pad Assembly
ASSEMBLY ASSEMBLY PART 3: CABLE ASSEMBLY PART 4: SEAT PAD ASSEMBLY STEP 4 | USER FRAME CABLE ASSEMBLY INSTRUCTIONS & NOTES STEP 1 | BACK PAD AND HEAD PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY DESCRIPTION QUANTITY M8 X 50L SHC M10 Flat Washer Spacer M10 X 75L SHC... -
Page 10: Bottom Pad
ASSEMBLY ASSEMBLY PART 4: SEAT PAD ASSEMBLY PART 5: PLASTICS ASSEMBLY STEP 2 | BOTTOM PAD ASSEMBLY INSTRUCTIONS & NOTES STEP 1 | SHROUD ASSEMBLY ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY DESCRIPTION QUANTITY M10 X 20L Hex Bolt Front Shroud Bottom Pad Rear Shroud (Not shown) Position hangers in their lowest position... - Page 11 ASSEMBLY ASSEMBLY PART 5: PLASTICS ASSEMBLY PART 5: PLASTICS ASSEMBLY STEP 2 | TOP CAP ASSEMBLY INSTRUCTIONS & NOTES STEP 3 | TOP CAP COVERS INSTRUCTIONS & NOTES DESCRIPTION QUANTITY DESCRIPTION QUANTITY M8 X 25L SHC Top Cap Cover M8 Flat Washer (20 mm diameter) Top Cap Install the top cap onto the weight stack as shown.
-
Page 12: Top Cap Cover
ASSEMBLY ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 1 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES OPTIONAL PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter - Magnet DESCRIPTION QUANTITY Wing Rep Counter Towel Hook 1. Remove the (2) top cap covers using a flat blade screw ASG Push Grip driver. - Page 13 ASSEMBLY ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 2 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES STEP 3 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter - Sensors Rep Counter 1. Assemble Rep Counter sensor base using (4) 1.
- Page 14 ASSEMBLY ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 4 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES STEP 5 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES ASG Grips Wing Assemble the wing (1P) as shown using the M8 hardware provided with the kit.
- Page 15 ASSEMBLY ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 6 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES STEP 7 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Pull Pin Gas Shock Raise the seat to the highest position before adding gas shock (6P) Remove the pull pin using an adjustable wrench, and replace with the Premium pull pin (5P).
-
Page 16: M10 Flat Washer
ASSEMBLY ASSEMBLY PART 7: SHORT USER KIT ASSEMBLY PART 7: SHORT USER KIT ASSEMBLY OPTIONAL SHORT USER KIT ASSEMBLY INSTRUCTIONS & NOTES STEP 1 | SHORT USER KIT ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Foot Rest M10 Flat Washer M10 X 20L SHC Assemble Short User Kit using the M10 hardware provided. - Page 17 Matrix Fitness 1600 Landmark Drive Cottage Grove WI 53527 matrixfitness.com Toll-free 866.693.4863 Facsimilie 608.839.8687 Versa Converging Chest Press Owners Guide Rev.1.1 Copyright © 2013 Matrix Fitness G1_OM_Chest Press Rev 1.1.indd 32 11/19/13 4:21 PM...
