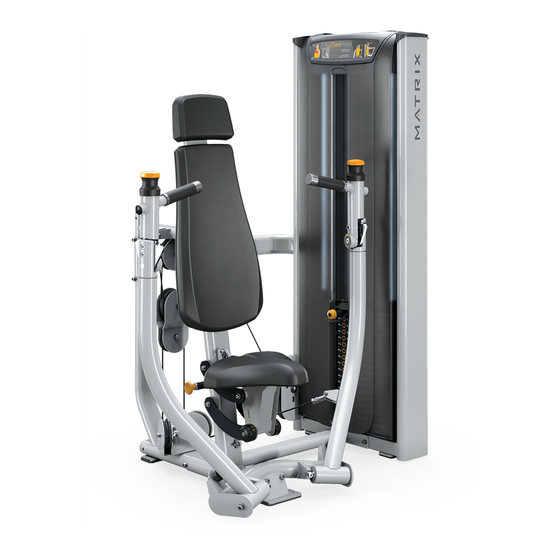

Vs-s13 converging chest press
Hide thumbs Also See for VS-S13:

Advertisement

Table of Contents

OWNERS MANUAL
Versa Single-Station Strength
VS-S13 Converging Chest Press

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS-S13 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Matrix VS-S13

Summary of Contents for Matrix VS-S13

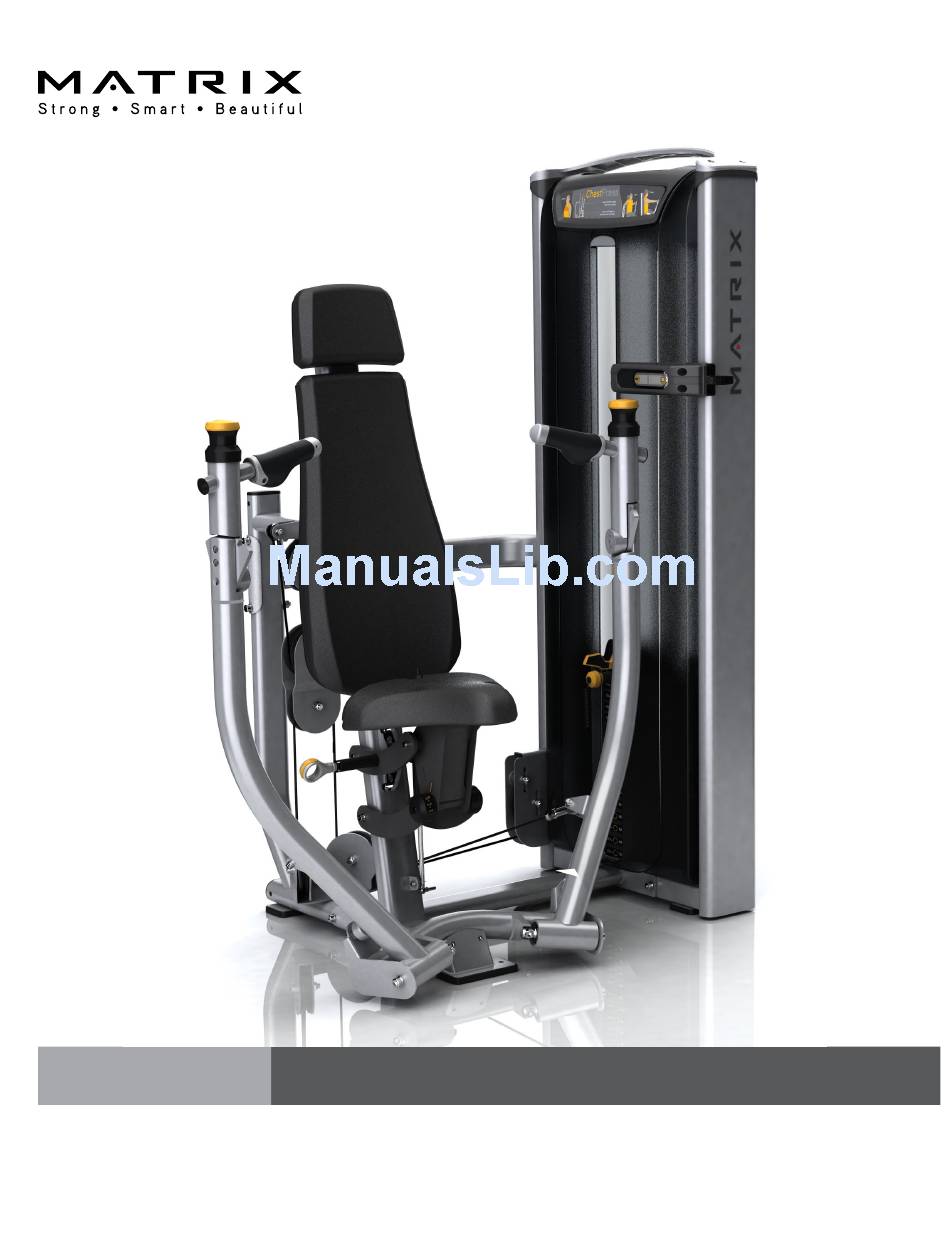

  • Page 1 OWNERS MANUAL Versa Single-Station Strength VS-S13 Converging Chest Press...

  • Page 2: Table Of Contents

    Table Of Contents Safety, General Care & Maintenence ...............3 Getting Started (Product Specifications) ............5 Assembly Information ..................6 Markings .......................7 Parts List ......................8 Installation & Assembly: Value Line Part 1 Weight Stack Assembly ..............10 Part 2 Arm Assembly ................11 Part 3 Cable Assembly ................13 Part 4 Seat Pad Assembly ................17 Part 5 Plastics Assembly ................19...

  • Page 3: Safety, General Care & Maintenence

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INFORMATION It is the sole responsibility of the purchaser of Matrix products to instruct all individuals, whether they are the end user or supervis- ing personnel on proper usage of the equipment. It is recommended that all users of Matrix exercise equipment be informed of the following information prior to its use.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS WARNING: This product contains chemicals known to the State of Califor- nia to cause cancer and birth defects or other reproductive harm. WARNING: SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW THESE PRECAUTIONS TO AVOID INJURY! Never allow children on strength training equipment. Teenagers must be supervised at all times while using this equipment.

  • Page 5: Getting Started (Product Specifications)

    GETTING STARTED EXERCISE PLACARD | PRODUCT SPECIFICATIONS | MAINTENANCE CHECKLIST EXERCISE PLACARD PRODUCT SPECIFICATIONS MAINTENANCE CHECKLIST ACTION FREQUENCY Clean Upholstery Daily Inspect Cables Daily Clean Guide Rods Monthly Inspect Hardware Monthly Inspect Frame Bi-Annually Clean Machine As Needed Clean Grips As Needed Lubricate Guide Rods As Needed...

  • Page 6: Assembly Information

    UNPACKING Thank you for purchasing a Matrix product. This machine is an EN957-1 and EN957-2 compliant Class S product. Your Ma- trix product is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the machine.

  • Page 7: Markings

    MARKINGS WARNING LABEL LOCATIONS...

  • Page 8: Parts List

    Parts List DESCRIPTION M10 X 105L Socket Head Cap Screw M10 Flat Washer Narrow Cupped Flange M10 Nylock Nut Upper Connecting Tube M10 X 20L Socket Head Cap Screw Weight Stack Frame User Frame M10 X 125 Socket Hear Cap Screw Wide Cupped Flange Lower Connecting Tube Right Arm Assembly...
  • Page 9 Parts List DESCRIPTION Front Shroud Rear Shroud M8 X 25L SHC M8 Flat Washer (Ø20 mm) Top Cap Top Cap Cover OPTIONAL PREMIUM KIT COMPONENTS Wing Rep Counter Towel Hook ASG Push Grip Premium Pullpin Seat Assist Gas Shock M10 Nylock Nut OPTIONAL SHORT USER KIT Foot Rest M10 Flat Washer...

  • Page 10: Installation & Assembly: Value Line Part 1 Weight Stack Assembly

    ASSEMBLY PART 1: WEIGHT STACK TO USER FRAME ASSEMBLY STEP 1 | WEIGHT STACK TO USER FRAME INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 X 105L SHC M10 Flat Washer Narrow Cupped Flange M10 Nylock Nut Upper Connecting Tube M10 X 20L SHC Weight Stack frame User Frame M10 X 125L SHC...

  • Page 11: Part 2 Arm Assembly

    ASSEMBLY PART 2: ARM ASSEMBLY STEP 1 | RIGHT & LEFT ARM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Right Arm Assembly Left Arm Assembly 40mm Diameter Washer Belleville (Spring) Washer M10 X 30L SHC 20 mm Diameter Shaft Attach the arms to the frame using the hardware shown, but DO NOT FULLY TIGHTEN Belleville washer item 15 must be assembled with inner (convex) diameter contacting the bearing.
  • Page 12 ASSEMBLY PART 2: ARM ASSEMBLY STEP 2 | RIGHT & LEFT ARM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M12 X 25L SHC M12 Flat Washer Install the pivot cap screw as shown. Torque all arm hardware to: • M10 from step 1 to 77 N-m/57 ft-lbs. • M12 from step 2 to 136 N-m/100 ft-lbs.

  • Page 13: Part 3 Cable Assembly

    ASSEMBLY PART 3: CABLE ASSEMBLY STEP 1 | WEIGHT STACK CABLE ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer M10 Nylock Nut Pulley Stack Cable M10 X 50L SHC M10 X 75L SHC Floating Pulley Plate View A Cable tension is adjusted by raising or lowering pulley as shown in View A. Note: Nuts for adjustable pulley must be on inside towards weight plates.
  • Page 14 ASSEMBLY PART 3: CABLE ASSEMBLY STEP 2 | WEIGHT STACK CABLE ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M8 X 50L SHC Spacer Cable Tie Rod End M8 Flat Washer M8 Nylock Nut Fully thread cable bolt into tie-rod, then attach to frame. Torque item 25 to: 39 N-m/29 ft-lbs.
  • Page 15 ASSEMBLY PART 3: CABLE ASSEMBLY STEP 3 | USER FRAME CABLE ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Washer M10 Nylock Nut Pulley M10 X 50L SHC User Frame Cable Install the secondary cable pulleys as shown. Torque hardware to: 77 N-m/57 ft-lbs.
  • Page 16 ASSEMBLY PART 3: CABLE ASSEMBLY STEP 4 | USER FRAME CABLE ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M8 X 50L SHC Spacer Cable Tie Rod End M8 Flat Washer M8 Nylock Nut *Note: Image shows left arm assembly only, though quantities reflect both left and right arm assemblies. Fully thread cable bolt into tie-rod, then attach to frame.

  • Page 17: Part 4 Seat Pad Assembly

    ASSEMBLY PART 4: SEAT PAD ASSEMBLY STEP 1 | BACK PAD AND HEAD PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer M10 X 75L SHC Head Pad Back Pad Install the head & back pads as shown. Torque to 57 N-m/41 ft-lbs.
  • Page 18 ASSEMBLY PART 4: SEAT PAD ASSEMBLY STEP 2 | BOTTOM PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 X 20L Hex Bolt Bottom Pad 33 34 33 34 Install the seat pads as shown. Torque to 57 N-m/41 ft-lbs.

  • Page 19: Part 5 Plastics Assembly

    ASSEMBLY PART 5: PLASTICS ASSEMBLY STEP 1 | SHROUD ASSEMBLY ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Front Shroud Rear Shroud (Not shown) Position hangers in their lowest position Install the weight stack shrouds as shown.
  • Page 20 ASSEMBLY PART 5: PLASTICS ASSEMBLY STEP 2 | TOP CAP ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M8 X 25L SHC M8 Flat Washer (20 mm diameter) Top Cap Install the top cap onto the weight stack as shown. Torque to 17 N-m/147 in-lbs. Position top cap so that the instructional placard faces the user.
  • Page 21 ASSEMBLY PART 5: PLASTICS ASSEMBLY STEP 3 | TOP CAP COVERS INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Top Cap Cover Install the top cap covers.

  • Page 22: Part 6 Premium Kit Assembly

    ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY OPTIONAL PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Wing Rep Counter Towel Hook ASG Push Grip Premium Pullpin Seat Assist Gas Shock M10 Nylock Nut (Not Shown) I M PO RTA NT NOTI CE PLEASE NOTE: Be sure to remove the insulating sheet when installing the...
  • Page 23 ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 1 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter - Magnet 1. Remove the (2) top cap covers using a flat blade screw driver. 2. Remove the (4) M8 bolts and 20 mm diameter washers that hold the top cap to the weight stack frame.
  • Page 24 ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 2 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter - Sensors 1. Assemble Rep Counter sensor base using (4) screws included with the kit. 2. Assemble (3) sensors located per machine chart shown below.
  • Page 25 ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 3 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter 1. Remove and discard hole caps using caution not to scratch the paint. 2. Attach plug to Rep Counter. 3. Assemble Towel Hook (3P) and Rep Counter (2P) using the M8 X 35L SHC bolts provided.
  • Page 26 ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 4 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Wing Assemble the wing (1P) as shown using the M8 hardware provided with the kit. Tighten to 39N-m (29 ft-lbs.).
  • Page 27 ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 5 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES ASG Grips 7.6 Degrees 7.6 Degrees Remove the end caps using a 3 mm Allen wrench. 2. Cut off and discard the grips. 3. Remove inner collars with a 3 mm allen wrench. 4.
  • Page 28 ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 6 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Pull Pin Remove the pull pin using an adjustable wrench, and replace with the Premium pull pin (5P).
  • Page 29 ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 7 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Gas Shock Raise the seat to the highest position before adding gas shock (6P) Disassembly and assembly for both ends Shock must be positioned as shown with gas cylinder above piston rod of shock (Only one end is shown)

  • Page 30: Part 7 Short User Ki

    ASSEMBLY PART 7: SHORT USER KIT ASSEMBLY OPTIONAL SHORT USER KIT ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Foot Rest M10 Flat Washer M10 X 20L SHC...
  • Page 31 ASSEMBLY PART 7: SHORT USER KIT ASSEMBLY STEP 1 | SHORT USER KIT ASSEMBLY INSTRUCTIONS & NOTES Assemble Short User Kit using the M10 hardware provided. Torque hardware to: 77 N-m/57 ft-lbs.
  • Page 32 Matrix Fitness 1600 Landmark Drive Cottage Grove WI 53527 matrixfitness.com Toll-free 866.693.4863 Facsimilie 608.839.8687 Versa Converging Chest Press Owners Guide Rev.1.2 Copyright © 2013 Matrix Fitness...
