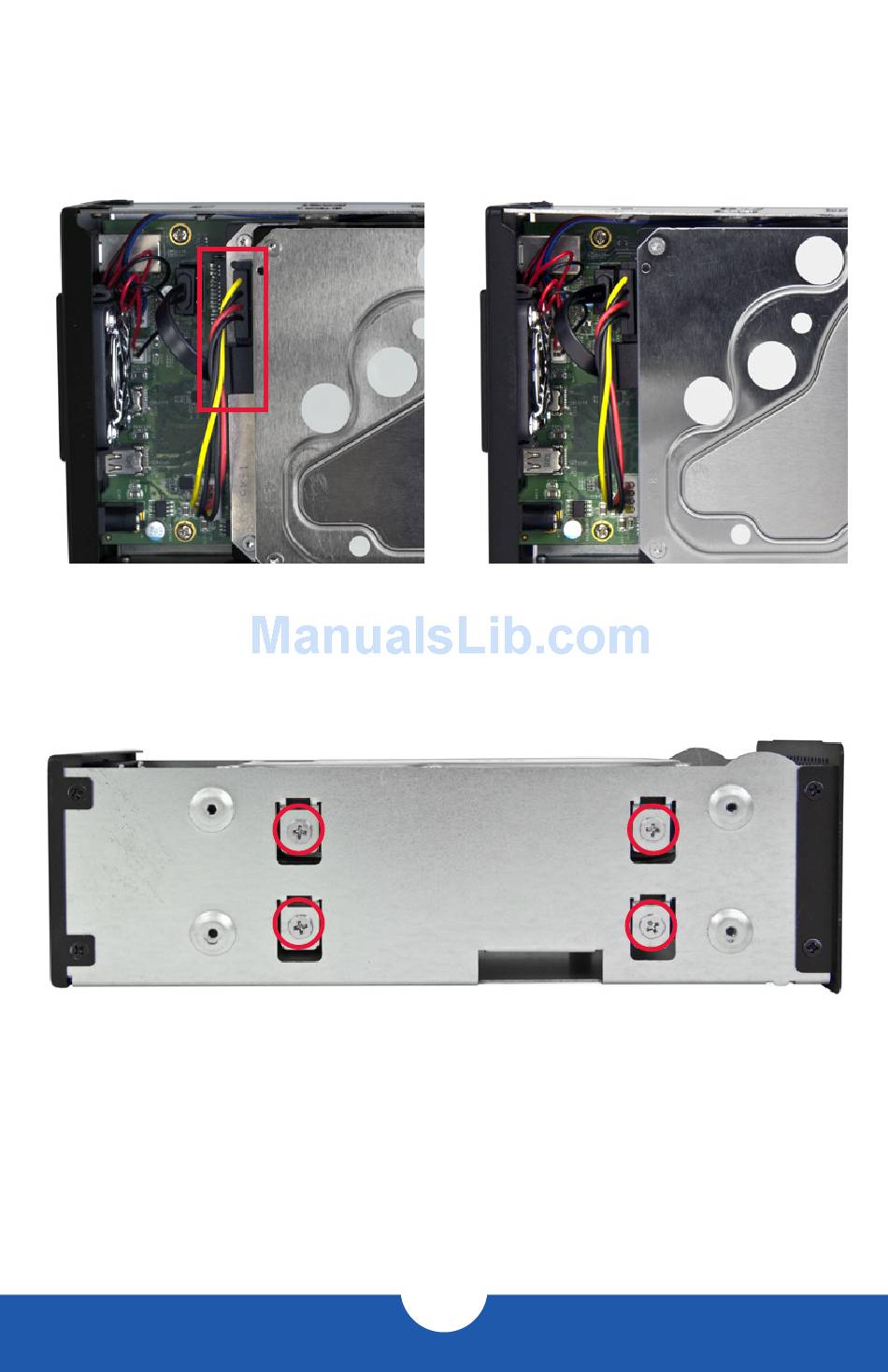

5. Install the upper hard drive (HDD1), as shown below. Insert the SATA power and
SATA data cables from the Mercury Elite Pro Dual into the SATA connectors on
the hard drive (NOTE: do not twist the black SATA data cable). Next, slide the hard
drive to line up the screw holes in the hard drive with those on the inner chassis.
Make sure the SATA connectors are seated firmly before continuing.
6. Using eight of the larger screws from the packet you removed earlier, fasten the
hard drives to the inner chassis. There are four screw holes on each side.
