- Page 1 CP-1262DI DVI to VGA Video Converter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications ............. 1 3. Package Contents ........... 1 4. System Requirements ........1 5. Features............1 6. Operation Controls and Functions ....2 6.1 Front Panel ..........2 6.2 Rear Panel........... 3 7. Connection Diagram ........4 8. -
Page 6: Introduction
1. INTRODUCTION Despite the widespread adoption and popularity of HDMI video sources and displays, many specialist fields continue to need, and use, legacy technology such as DVI and VGA. This DVI to VGA Video Converter can take any standard, non-HDCP, single-link DVI-D source and output it as either an RGBHV or YPbPr signal. -
Page 7: Operation Controls And Functions

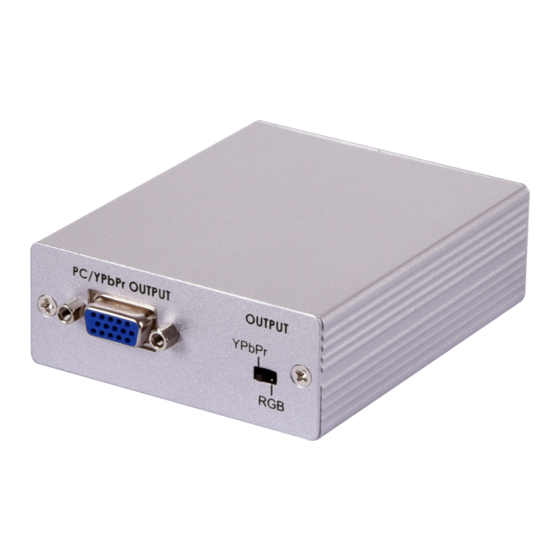

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel PC/YPbPr OUTPUT OUTPUT YPbPr PC/YPbPr OUTPUT Port: Connect to a VGA or component video monitor or display for analog video output. Note: Connection to component video displays may require a 15-pin to 3-RCA adapter. -
Page 8: Rear Panel
6.2 Rear Panel DVI INPUT DC 5V DVI INPUT Port: Connect to DVI-D source equipment such as a PC, laptop, or set-top box. Note1: A Dual-Link DVI-I port is provided for cable connection convenience. Only Single-Link DVI-D sources are supported. Note 2: If the DVI source has HDCP protection there will be no video output from the PC/YPbPr OUTPUT port. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM DVI Input Power DVI INPUT DC 5V Supply PC/YPbPr OUTPUT OUTPUT YPbPr VGA Output Monitor... -
Page 10: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications DVI Bandwidth 3.96Gbps VGA Bandwidth 165MHz Input Port 1×DVI (DVI-I Dual Link) Output Port 1×VGA (HD-15) Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified) ESD Protection (HBM) ±8kV (Air Discharge) ±4kV (Contact Discharge) Dimensions (W×H×D) 94mm×76.5mm×30mm [Case Only] 94mm×104mm×30mm [All Inclusive] Weight... -
Page 11: Video Specifications
8.2 Video Specifications Input Output Supported Resolutions (Hz) YPbPr 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 800×600p@56/60/72/75/85 848×480p@60 ... - Page 12 Input Output Supported Resolutions (Hz) YPbPr 2560×1440p@60RB 2560×1600p@60RB 2048×1080p@24/25/30 2048×1080p@50/60 3840×2160p@24/25/30 3840×2160p@50/60 (4:2:0) 3840×2160p@24, HDR10 3840×2160p@50/60 (4:2:0),HDR10 ...
-
Page 13: Cable Specifications
8.3 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit DVI Cable DVI Input 1.8m VGA Cable VGA Output Bandwidth Category Examples: • 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit color - Data rates lower than 5.3Gbps or below 225MHz TMDS clock •... -
Page 14: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Visual Interface EDID Extended Display Identification Data Gbps Gigabits per second High-Definition High Dynamic Range HDCP High-bandwidth Digital Content Protection HDTV High-Definition Television Light-Emitting Diode Megahertz TMDS Transition-Minimized Differential Signaling 4K UHD 4K Ultra-High-Definition (10.2Gbps max) 4K UHD 4K Ultra-High-Definition (18Gbps max) Video Graphics Array... - Page 16 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
