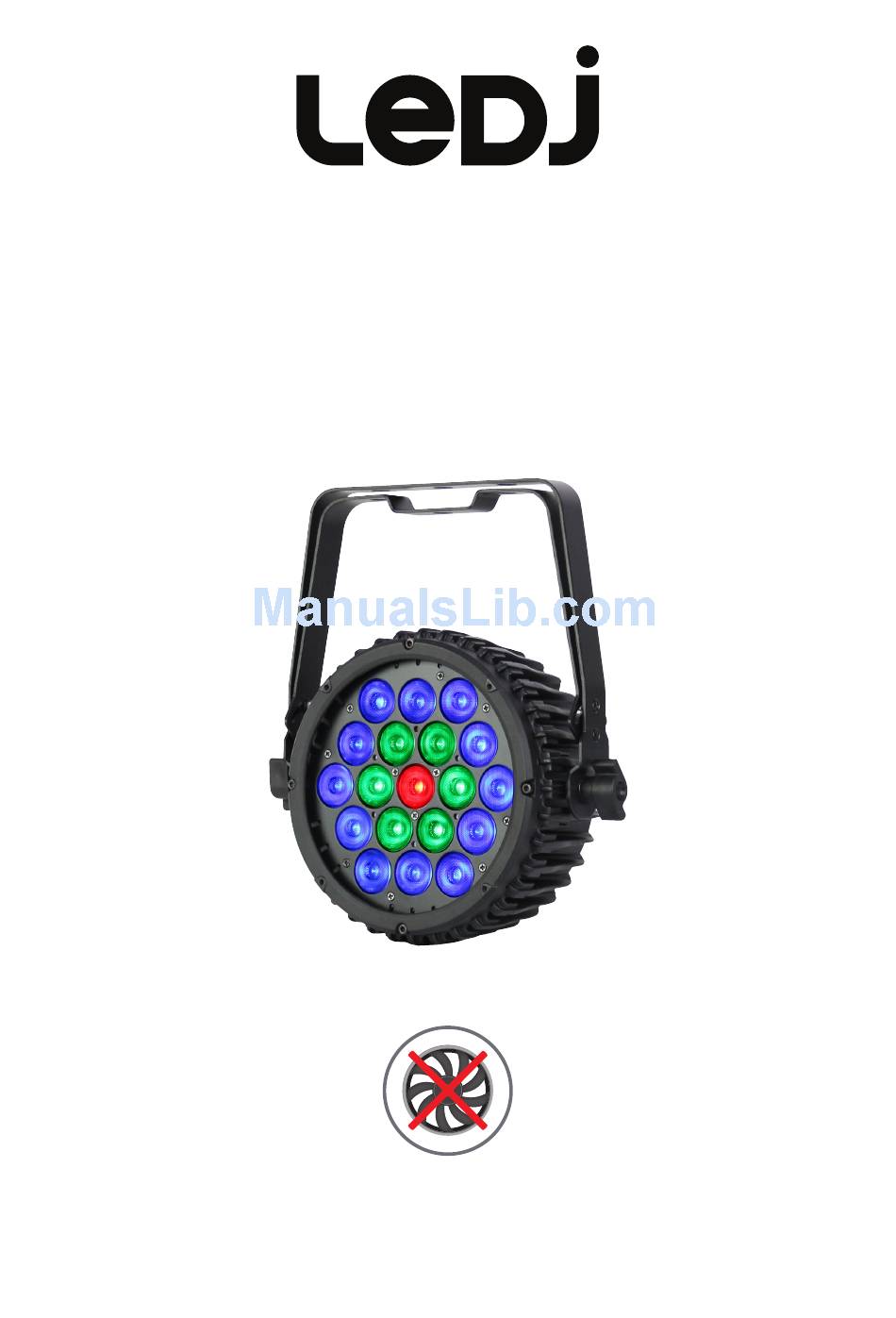

Page 1: User Manual
Intense 19T3 RGB LED Slim Par 19 x 3W tri-colour LEDs (RGB) User Manual Convection cooled, no fan! Order code: LEDJ255... -
Page 2: Safety Advice
• This lighting fixture is for professional use only - it is • Make sure that the available mains supply voltage is not designed for or suitable for household use. The between 100~240V AC, 50/60Hz. product must be installed by a qualified technician in accordance with local territory regulations. The safety of • Make sure that the power cable is never crimped or the installation is the responsibility of the installer. The damaged. Check the equipment and the power cable fixture presents risks of severe injury or death due to fire periodically. hazards, electric shock and falls. • If the equipment is dropped or damaged, disconnect the • Warning! Risk Group 2 LED product according to mains power supply immediately and have a qualified EN 62471. Do not view the light output with optical engineer inspect the equipment before operating again. instruments or any device that may concentrate the beam. • WARRANTY: One year from date of purchase. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Intense 19T3 LED Slim Par User Manual... - Page 3 Product overview & technical specifications LEDJ Intense 19T3 RGB LED Slim Par The Intense 19T3 excels beyond standard tri-colour fixtures with its concentric circles of LEDs which can be individually controlled to create subtle zone effects. This super bright, robust, slimline par is suitable for a wide range of applications from uplighting a large venue to lighting a stage for live performances. The convection cooled chassis ensures silent running and features mounting points for the optional barn door/gel frame kit (LEDJ253A). • 19 x 3W tri-colour LEDs (RGB) Specifications Intense 19T3 • Beam angle: 28° Power consumption • 2850 Lux @ 2m (full on) Power supply 100~240V, 50/60Hz • 4kHz refresh rate Fuse T1.5A 250V • DMX channels: 3/6/9 or 11 selectable Dimensions 295 x 260 x 93mm • Static colour, colour change, colour Weight 2.7kg fade, auto, sound active and Order code LEDJ255 master/slave modes • 0-100 dimming and variable strobe...
-
Page 4: Dmx Channel Mode
000-255 Middle Pixel Red (0-100%) 098-119 Program 5 000-255 Middle Pixel Green (0-100%) 120-141 Program 6 000-255 Middle Pixel Blue (0-100%) 142-163 Program 7 000-255 Outer Pixel Red (0-100%) 164-185 Program 8 000-255 Outer Pixel Green (0-100%) 186-207 Program 9 000-255 Outer Pixel Blue (0-100%) 208-229 Program 10 000-255 Master dimmer (0-100%) 230-251 Program 11 000-255 Strobe (slow-fast) 252-255 Sound active www.prolight.co.uk Intense 19T3 LED Slim Par User Manual... -
Page 5: Built-In Program Mode
Static colour mode: Colr To access the static colour mode press “ENTER” until shows on the LED display. r. 2 25 Press the “ENTER” button and the LED display will show . Now use the “UP” and “DOWN” r. 0 00 r. 2 55 buttons to select the brightness between . Press the “ENTER” button and repeat for green and blue. Value: 000 - 255 (000 = low, 255 = high) To exit out of any of the above options, press the “MODE” button. www.prolight.co.uk Intense 19T3 LED Slim Par User Manual... -
Page 6: Master/Slave Mode
Pr. 0 7 Circle chase 1 Should the problem reoccur please contact your Pr. 0 8 Circle chase 2 Pr. 0 9 Colour circle change local dealer for service and support. Pr. 1 0 Circle patterns 1 Pr. 1 1 Circle patterns 2 Pr. 1 2 Circle patterns 3 SP00~SP99 (speed) F500~F599 (flash) Auto mode AUTO Slave mode SLAV Sound active mode SU00~SU31 DMX mode 3CH, 6CH, 9CH, 11CH Address setting A001~A512 www.prolight.co.uk Intense 19T3 LED Slim Par User Manual... -
Page 7: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Intense 19T3 LED Slim Par User Manual... -
Page 8: Line Termination
3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Intense 19T3 LED Slim Par User Manual... -
Page 9: Weee Notice
Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Intense 19T3 LED Slim Par User Manual... -
Page 10: Optional Accessories
Optional accessories Please contact your local retailer to purchase these accessories. Optional barn door/gel frame Order code: LEDJ253A To keep up-to-date on the latest accessories and product range additions please visit www.prolight.co.uk www.prolight.co.uk Intense 19T3 LED Slim Par User Manual... - Page 11 Intense 19T3 LED Slim Par User Manual...
- Page 12 Intense 19T3 LED Slim Par User Manual...
