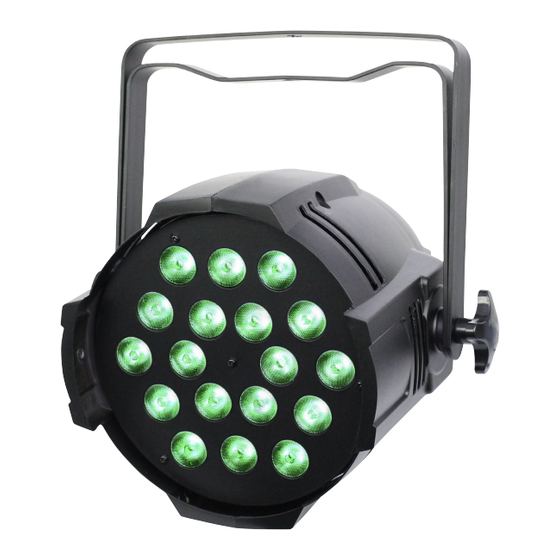

Ledj LEDJ252C User Manual

Ledj LEDJ252C User Manual

18 x 8w quad-colour leds (rgbw)

Advertisement

Quick Links

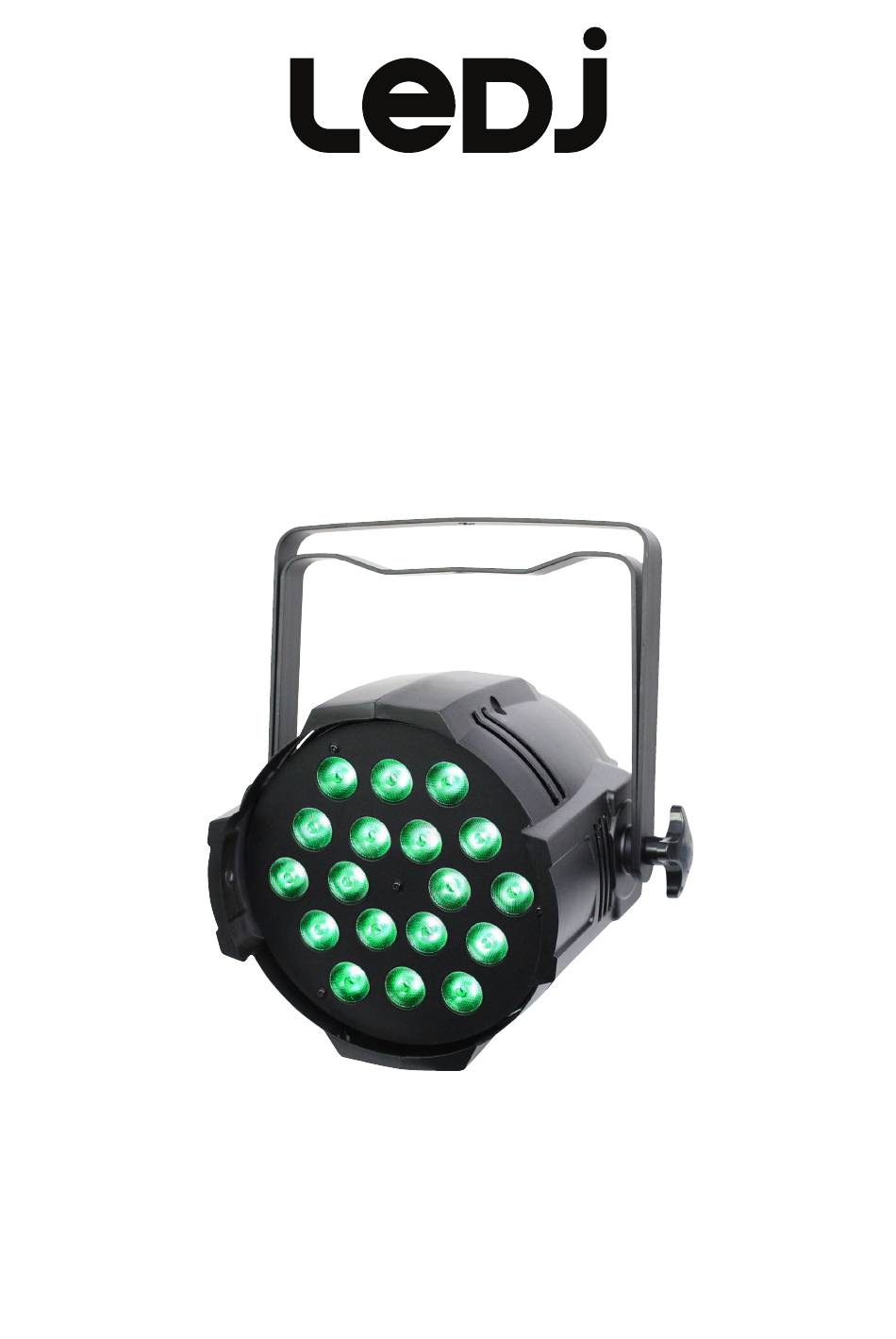

Performer 18 Quad MKII
18 x 8W quad-colour LEDs
(RGBW)
User Manual
Order codes:
40° Version - LEDJ252 (Black Housing)
40° Version - LEDJ252Z (White Housing)
20° Version - LEDJ252C (Black Housing)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LEDJ252C and is the answer not in the manual?

Questions and answers

Summary of Contents for Ledj LEDJ252C

  • Page 1 Performer 18 Quad MKII 18 x 8W quad-colour LEDs (RGBW) User Manual Order codes: 40° Version - LEDJ252 (Black Housing) 40° Version - LEDJ252Z (White Housing) 20° Version - LEDJ252C (Black Housing)
  • Page 2: Safety Advice

    Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! CAUTION! TAKE CARE USING KEEP THIS EQUIPMENT THIS EQUIPMENT! AWAY FROM RAIN, HIGH VOLTAGE-RISK MOISTURE AND LIQUIDS OF ELECTRIC SHOCK!! IMPORTANT:...
  • Page 3 Product overview & technical specifications Performer 18 Quad MKII The Performer 18 RGBW features a four-colour LED engine and produces no multi-coloured shadowing thanks to its 18 x 8W RGBW LEDs, the Alu Performer Par punches out astonishing spots of colour that can serve as a stunning show for various applications from uplighting a large venue and lighting a stage for live performances. • 18 x 8W quad-colour LEDs (RGBW) • 0 - 100% dimming with variable strobe • Beam angle: 40° (LEDJ252/LEDJ252Z) • Bracket allows for multiple rigging or floor standing applications • Beam angle: 20° (LEDJ252C) • 4 push button menu • DMX channels: 4 or 8 selectable with LED display • Static colour, colour change, fade, • Captive power connection auto, sound active and master/ slave modes • 3-Pin XLR input/output • Fan cooled 20° - Lux 17470 2000 40° - Lux 10640 1240 20°...
  • Page 4 Operating instructions DMX mode: d001 To select the DMX address, press the “MENU” button on the rear of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to select the DMX address between 000-512. To exit out of any of the above options, press the “MENU” button. DMX channel mode: Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently. To access the DMX channel mode, press the “MENU” button on the rear -4CH -8CH of the unit to show or on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to select between 4 and 8 channel. To exit out of any of the above options, press the “MENU” button. 4 channel mode: 8 channel mode: Channel Value Function Channel Value Function 000-255 Red (0-100%) 000-255 Master dimmer (0-100%) 000-255 Green (0-100%) 000-255 Strobe (slow-fast) 000-255 Blue (0-100%) 000-049 Manual DMX...
  • Page 5: Master/Slave Mode

    Operating instructions Colour change mode: CC-- To access colour change mode press “MENU” until the display shows on the LED display. Press “ENTER” to confirm the setting. Use the “UP” and “DOWN” buttons to ajust the speed between CC00 CC99 . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Colour fade mode: CP-- To access colour fade mode press “MENU” until the display shows on the LED display. Press “ENTER” to confirm the setting. Use the “UP” and “DOWN” buttons to ajust the speed CP00 CP99 between . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Auto mode: dE-- To access auto mode press “MENU” until the display shows on the LED display. Press “ENTER” to confirm the setting. Use the “UP” and “DOWN” buttons to ajust the speed dE00 dE99 between . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button.
  • Page 6: Dmx Setup

    DMX setup Setting the DMX address: The DMX mode enables the use of a universal DMX controller. Each fixture requires a “start address” from 1- 512. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address. For example, a fixture that occupies or uses 7 channels of DMX and was addressed to start on DMX channel 100, would read data from channels: 100,101,102,103,104,105 and 106. Choose a start address so that the channels used do not overlap. E.g. the next unit in the chain starts at 107. DMX 512: DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a data “out” terminal). DMX linking: DMX is a language allowing all makes and models of different manufactures to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use the shortest cable path possible. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example; a fixture assigned to a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain. DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers.
  • Page 7: Line Termination

    DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Do not connect the cables shield conductor to the ground lug or allow the shield conductor to come in contact with the XLRs outer casing. Grounding the shield could cause a short circuit and erratic behaviour. Special note: Line termination: When longer runs of cable are used, Termination reduces signal transmission you may need to use a terminator on problems and interference. it is always advisable to connect a DMX terminal, the last unit to avoid erratic behaviour. (resistance 120 Ohm 1/4 W) between pin 2 Using a cable terminator will decrease (DMX-) and pin 3 (DMX+) of the last fixture. the possibilities of erratic behaviour. (3-pin - Order ref: CABL9O, 5-pin - Order ref: CABL89) 5-pin XLR DMX connectors: Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be used. The diagram below details the correct cable conversion.
  • Page 8: Weee Notice

    WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Performer 18 Quad MKII User Manual...
