OmniStream R-Type Single-Channel Networked AV Decoder
AT-OMNI-521

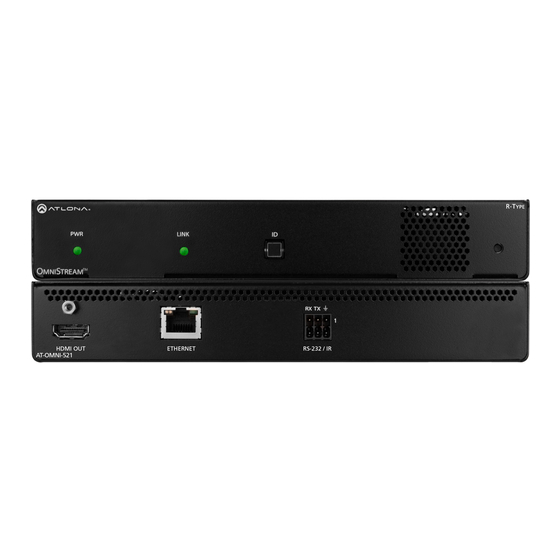

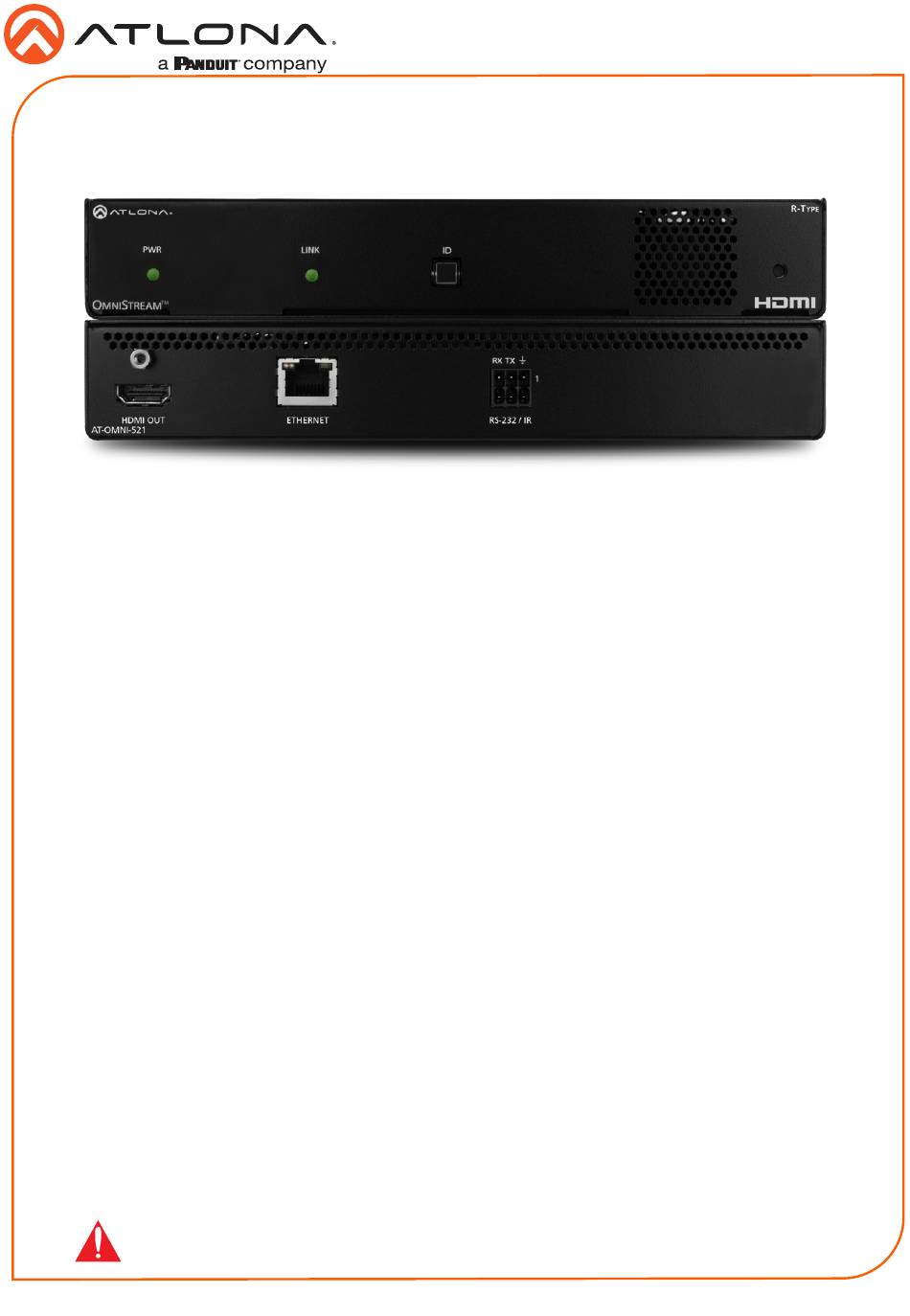

The Atlona OmniStream™ R-Type (AT-OMNI-521) is a networked AV decoder for an
OmniStream-encoded video stream up to UHD @ 60 Hz and HDR, plus embedded audio and
RS-232 or IR control pass-through. It is part of the OmniStream R-Type Series, designed
for high performance, flexible distribution of AV over Gigabit Ethernet in residential and light
commercial applications. The OmniStream 521 is HDCP 2.2 compliant and ideal for the latest
as well as emerging UHD and HDR displays. It features visually lossless compression with
pristine-quality video and graphics performance, plus extremely low, sub-frame latency from
encode to decode – critical for demanding applications such as gaming. This decoder includes
an HDMI output, high performance upscaling and downscaling, aspect ratio control, and video
wall processing, plus presentation enhancement features such as logo insertion and scrolling
on-screen text.
Package Contents
1 x AT-OMNI-521
1 x Push spring connector, 6-pin
1 x Wall/table mounting brackets
4 x Rubber feet
1 x Installation Guide
Operating Notes
•
This product is powered using PoE (Power over Ethernet) and must be connected to a
PoE-capable network switch. If the network switch is not PoE-capable, a PoE injector
(purchased separately) must be used.
•
Atlona recommends using the Velocity with Integrated AMS which provides discovery,
management, and configuration assistance. Velocity with Integrated AMS is a free
application that can be downloaded from the Atlona web site at http://atlona.com/product/
at-ams-sw/.
•
OmniStream uses mDNS as the discovery mechanism. In order for mDNS to function
properly, there must not be restrictions applied to the network. VPN can be used to
connect to a computer that is running AMS, on the same network. However, VPN cannot
be used when AMS is running on the local machine.
IMPORTANT: Visit http://www.atlona.com/product/AT-OMNI-521 for the latest
firmware updates and User Manual.
1
Installation Guide
AT-OMNI-521
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlona AT-OMNI-521
Summary of Contents for Atlona AT-OMNI-521
- Page 1 OmniStream R-Type Single-Channel Networked AV Decoder AT-OMNI-521 The Atlona OmniStream™ R-Type (AT-OMNI-521) is a networked AV decoder for an OmniStream-encoded video stream up to UHD @ 60 Hz and HDR, plus embedded audio and RS-232 or IR control pass-through. It is part of the OmniStream R-Type Series, designed for high performance, flexible distribution of AV over Gigabit Ethernet in residential and light commercial applications.
-
Page 2: Panel Descriptions
Installation Guide AT-OMNI-521 Panel Descriptions LINK LINK LINK TREAM TREAM TREAM RX TX RX TX RX TX HDMI OUT ETHERNET RS-232 / IR HDMI OUT ETHERNET RS-232 / IR ETHERNET RS-232 / IR HDMI OUT AT-OMNI-521 AT-OMNI-521 AT-OMNI-521 HDMI OUT... -
Page 3: Mounting Instructions
Installation Guide AT-OMNI-521 Mounting Instructions The AT-OMNI-521 decoder includes two Repeat steps 1 through 4 to attach the mounting brackets and four mounting screws, second mounting bracket to the opposite which can be used to attach the unit to any flat side of the unit. -
Page 4: Installation
Installation Guide AT-OMNI-521 Installation Connect an Ethernet cable from the ETHERNET port on the decoder to a PoE-capable switch on the Local Area Network (LAN). IMPORTANT: If the network switch is not PoE capable, a PoE injector (purchased separately) must be used. - Page 5 Installation Guide AT-OMNI-521 RS-232 The AT-OMNI-512 provides transport of RS-232 protocol over IP which allows communication between a control system and an RS-232 device. The top three terminals must be used. This step is optional. Use wire strippers to remove a portion of the cable jacket.
- Page 6 Installation Guide AT-OMNI-521 Accessing devices using Velocity with Integrated AMS Launch a web browser and enter the IP address of Velocity, in the address bar. Enter the required login credentials. Click the Login button. The Velocity with Integrated AMS Dashboard will be displayed.
- Page 7 Installation Guide AT-OMNI-521 Click the desired decoder from the Unassigned device list or from under the Device List column. Once the unit is selected, the Velocity with Integrated AMS interface for the decoder will be displayed. Refer to the User Manual for more information on the interface.
-
Page 8: Mac Address
Enter the username and password. Note that the password field will always be masked. The default credentials are: admin Username: Atlona Password: NOTE: Atlona recommends changing both the username and password for security purposes. Refer to the OmniStream User Manual for more information. - Page 9 Installation Guide AT-OMNI-521 The System Information screen will be displayed. Refer to the User Manual for more information on the web server interface. The login process is complete.
-
Page 10: Troubleshooting
Installation Guide AT-OMNI-521 Troubleshooting Problem Solution PWR indicator is off. • If using a PoE (Power-over-Ethernet) switch, make sure that the port on the switch that is connected to the decoder, has PoE enabled. When the decoder is powered using PoE, the PWR indicator will be green. - Page 11 Installation Guide AT-OMNI-521 Notes...
