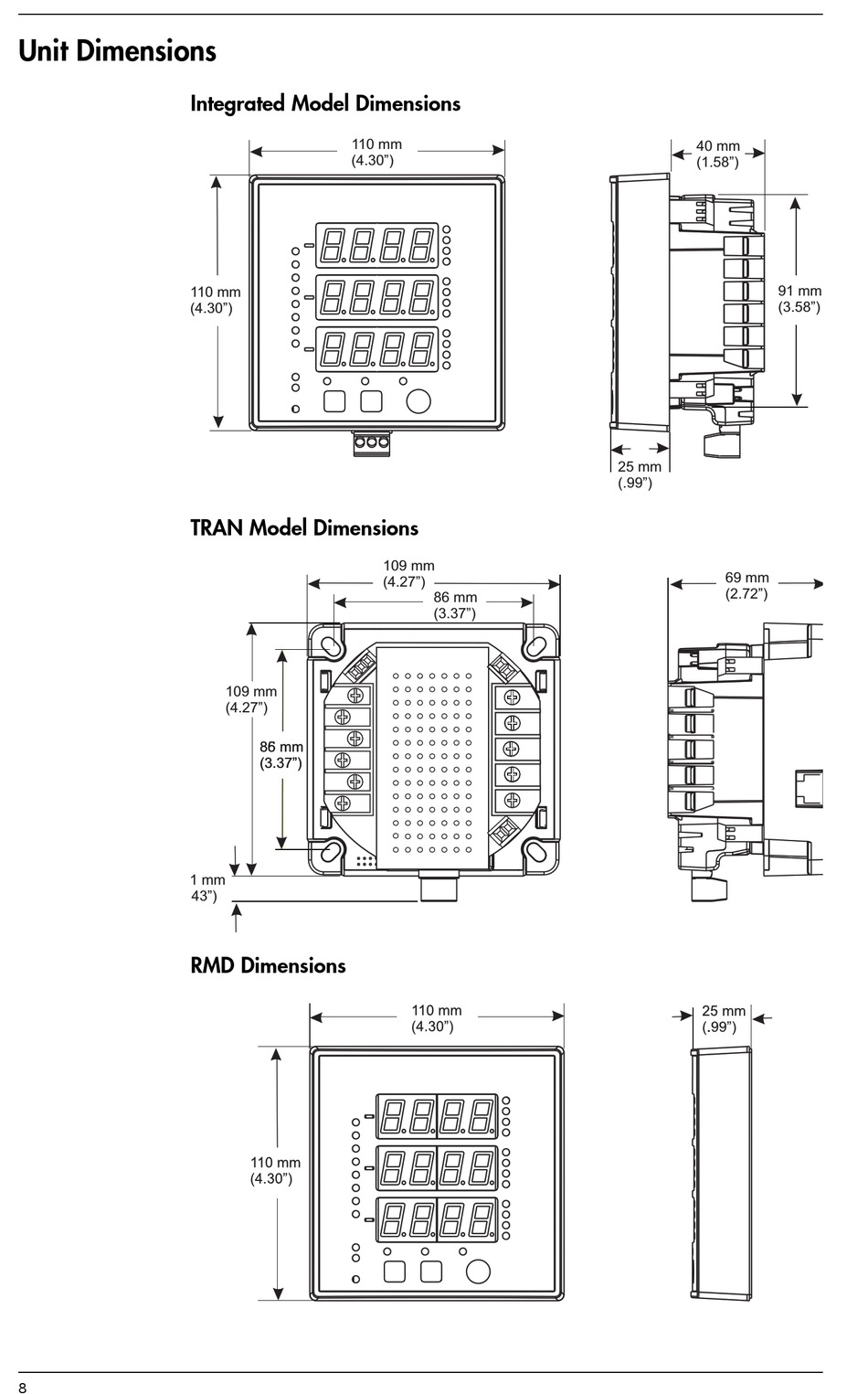

Unit Dimensions

8
Integrated Model Dimensions
110 mm
(4.30")
110 mm
(4.30")
TRAN Model Dimensions
109 mm
(4.27")
86 mm 85 mm
(3.37") (3.37")
1 mm
43")
RMD Dimensions
109 mm
(4.27")
86 mm
(3.37")
40 mm
(1.58")
91 mm
(3.58")
25 mm
(.99")
69 mm
(2.72")
