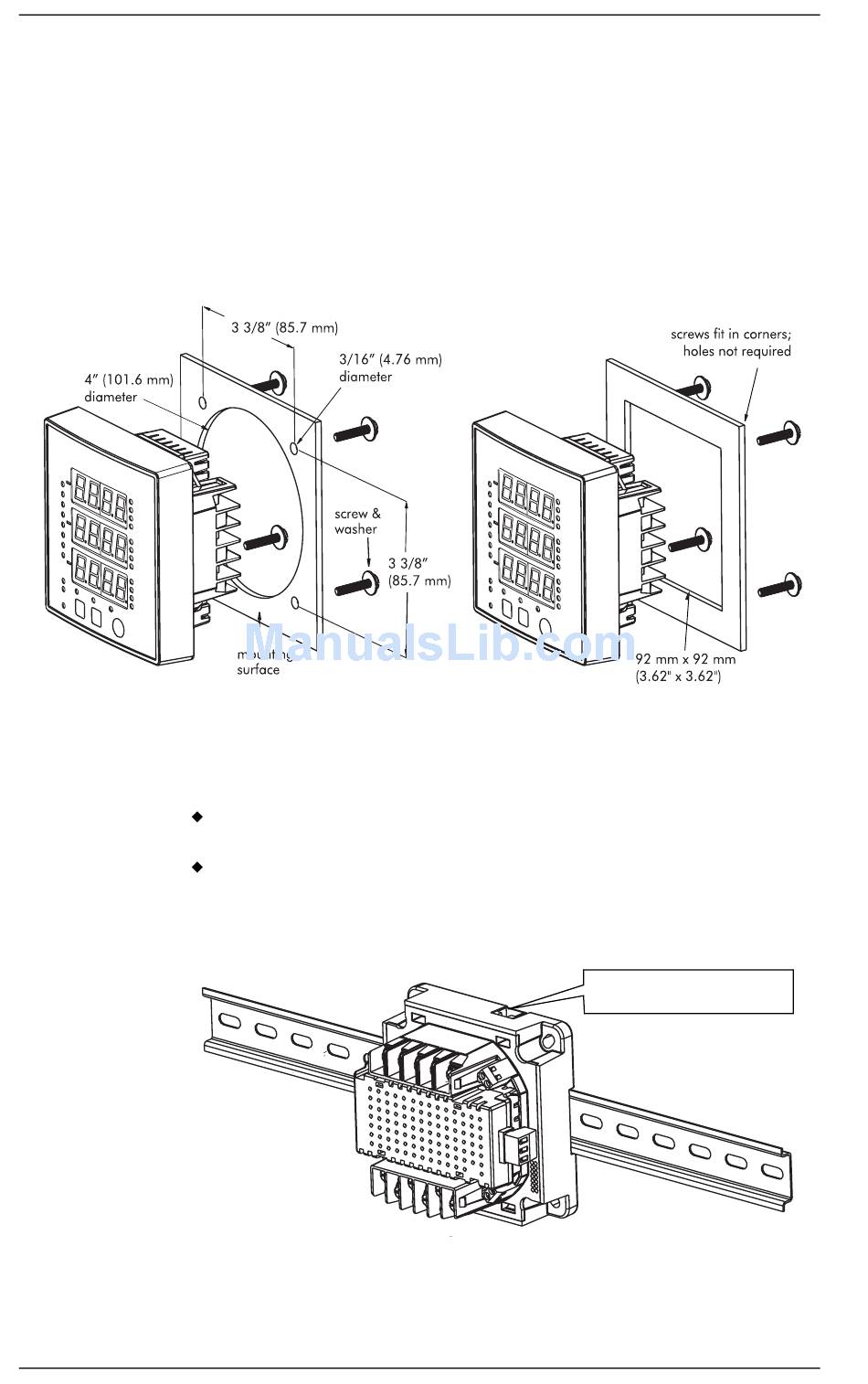

Mounting the Integrated Model
ANSI 4" (4 1/2" Switchboard)
Mounting the TRAN Model
10
1.
Fit the meter into the cutout [DIN 96 standard or ANSI 4"].
2.
Insert each screw through the drilled hole on the mounting surface and
into its corresponding metal insert located on the back of the meter. Note
that the DIN 96 cutout does not require drilled holes.
3.
Tighten screws using a #2 Phillips screwdriver. Do not overtighten.
The TRAN can be mounted two different ways:
Flush against any flat surface in any orientation with four #8 or #10 size
screws.
Snapped in place on a standard DIN rail, European Standard
EN50022:1977. Ensure the RMD port faces up, as shown in the diagram
below. In this orientation, the sliding snap feature has the most strength.
DIN 96
The RMD port faces up
