Unit Dimensions - Power Measurement ION 8800 Installation Manual

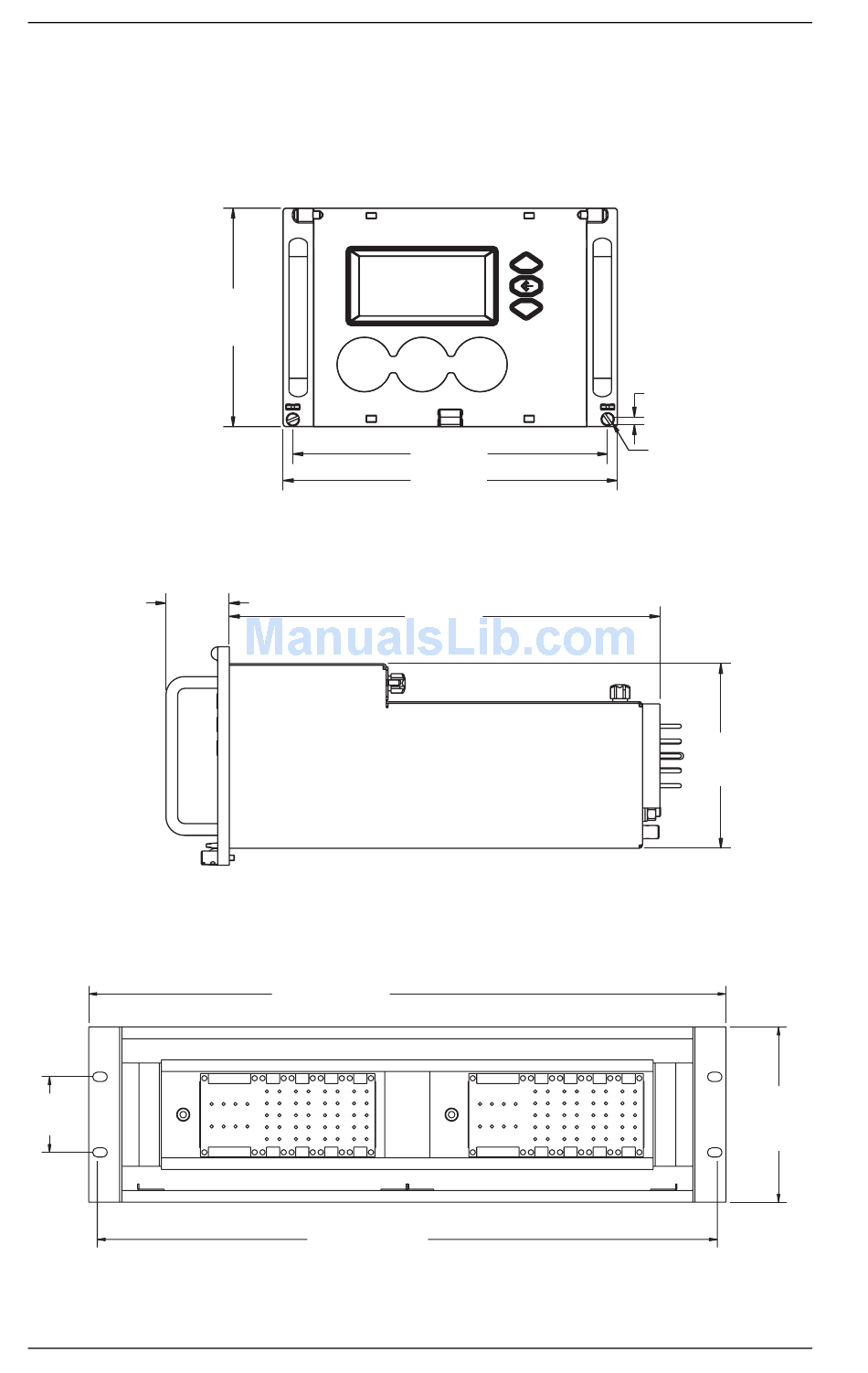

Unit Dimensions

38.4 mm
(1.51")
57.2 mm
(2.25")
8
Meter dimensions conform to DIN standard 43862.
Front View of Meter
132.2 mm
(5.21")
Side View of Meter
482.0 mm
(18.98")
to fit 19 inch rack
461.0 - 469.0 mm
(18.15 - 18.46")
190.5 mm
(7.50")
202.1 mm
(7.96")
260.0 mm
(10.24")
Front of Rack View
© 2007 Power Measurement. All rights reserved.
4.6 mm
(0.18")
M3 Thread
Screw
111.8 mm
(4.40")
132.5 mm
(5.22")
3U high
