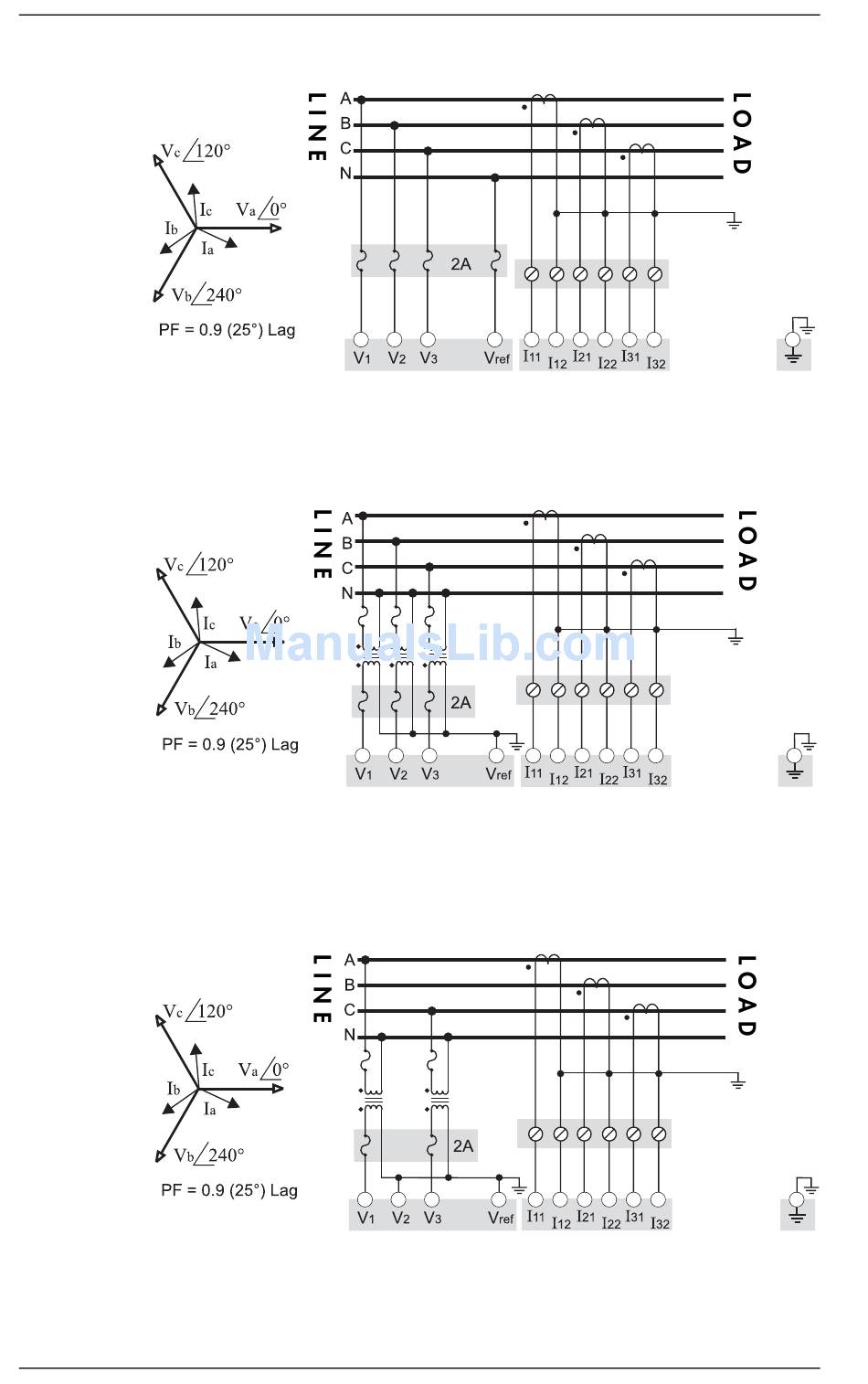

4-Wire Wye, 3-Element Direct Connection
400 VAC L-N / 690 VAC L-L max.
Volts Mode = 4W-Wye
4-Wire Wye, 3-Element, 3 PT, 3 CT
Use PTs for voltages over 400 VAC L-N / 690 VAC L-L
Wye (Star) wiring for PT primaries and secondaries.
Volts Mode = 4W-Wye
4-Wire Wye, 2½-Element, 2 PT, 3 CT
Phase B voltage (V2) is derived from the phase A and C voltages.
Use PTs for voltages over 400 VAC L-N / 690 VAC L-L
Volts Mode = 3W-Wye
