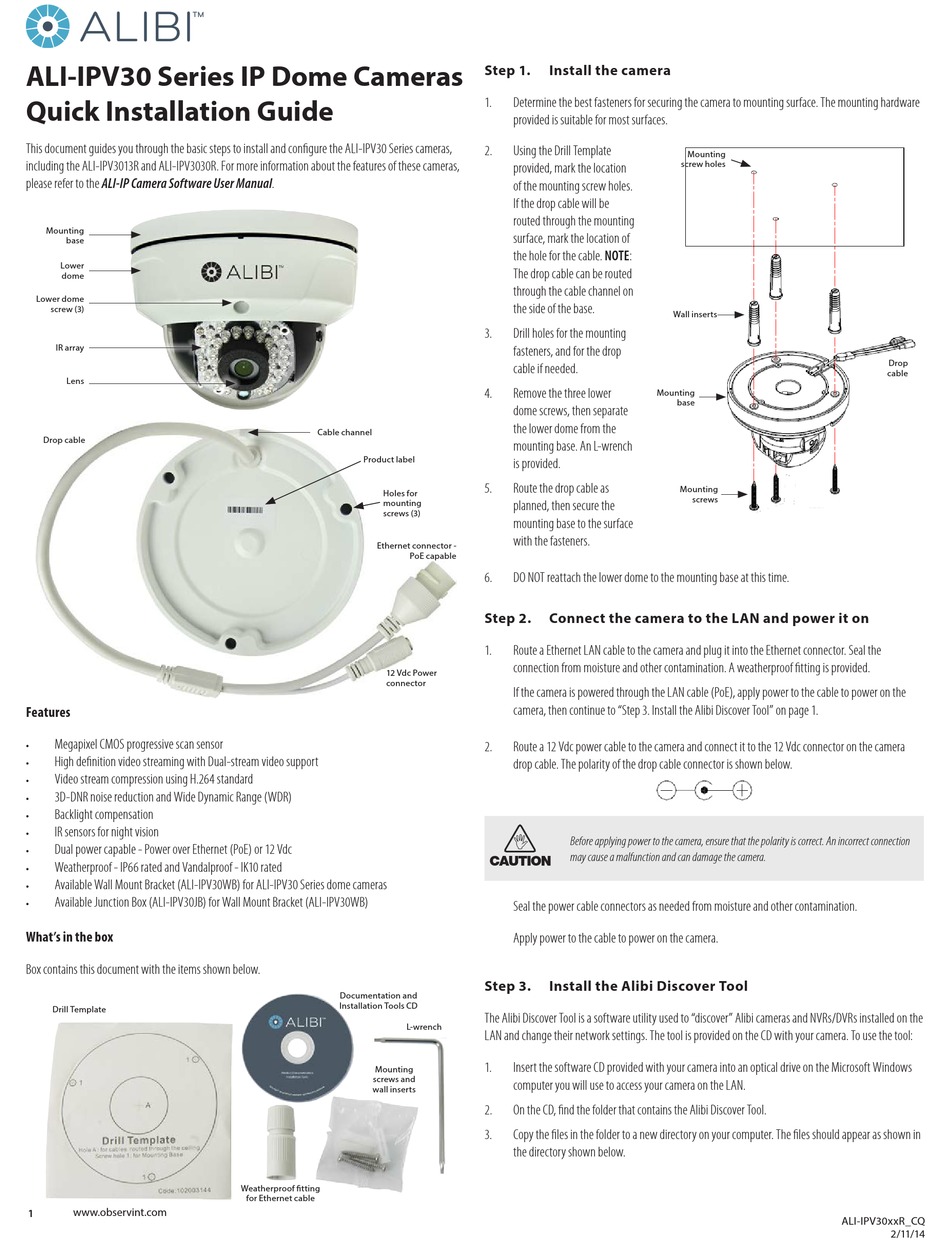

ALIBI ALI-IPV30 Quick Installation Manual

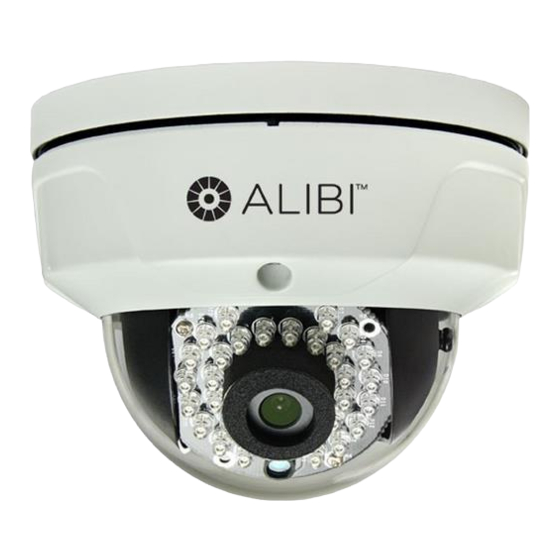

ALI-IPV30 Series IP Dome Cameras

Quick Installation Guide

This document guides you through the basic steps to install and configure the ALI-IPV30 Series cameras,
including the ALI-IPV3013R and ALI-IPV3030R. For more information about the features of these cameras,
please refer to the ALI-IP Camera Software User Manual.
Mounting
base
Lower
dome
Lower dome
screw (3)
IR array
Lens
Drop cable
Features
Megapixel CMOS progressive scan sensor
•
High definition video streaming with Dual-stream video support
•
Video stream compression using H.264 standard
•
3D-DNR noise reduction and Wide Dynamic Range (WDR)
•
Backlight compensation
•
IR sensors for night vision
•
Dual power capable - Power over Ethernet (PoE) or 12 Vdc
•
Weatherproof - IP66 rated and Vandalproof - IK10 rated
•
Available Wall Mount Bracket (ALI-IPV30WB) for ALI-IPV30 Series dome cameras
•
Available Junction Box (ALI-IPV30JB) for Wall Mount Bracket (ALI-IPV30WB)
•
What's in the box
Box contains this document with the items shown below.
Drill Template
www.observint.com
1
Cable channel
Product label
Holes for
mounting
screws (3)
Ethernet connector -
PoE capable
12 Vdc Power
connector
Documentation and
Installation Tools CD
L-wrench
Mounting
screws and
wall inserts
Weatherproof fitting
for Ethernet cable
Step 1. Install the camera
1. Determine the best fasteners for securing the camera to mounting surface. The mounting hardware
provided is suitable for most surfaces.
2. Using the Drill Template
provided, mark the location
of the mounting screw holes.
If the drop cable will be
routed through the mounting
surface, mark the location of
the hole for the cable. NOTE:
The drop cable can be routed
through the cable channel on
the side of the base.
3. Drill holes for the mounting
fasteners, and for the drop
cable if needed.
4. Remove the three lower
Mounting
dome screws, then separate
the lower dome from the
mounting base. An L-wrench
is provided.
5. Route the drop cable as
planned, then secure the
mounting base to the surface
with the fasteners.
6. DO NOT reattach the lower dome to the mounting base at this time.
Step 2. Connect the camera to the LAN and power it on
1. Route a Ethernet LAN cable to the camera and plug it into the Ethernet connector. Seal the
connection from moisture and other contamination. A weatherproof fitting is provided.
If the camera is powered through the LAN cable (PoE), apply power to the cable to power on the
camera, then continue to "Step 3. Install the Alibi Discover Tool" on page 1.
2. Route a 12 Vdc power cable to the camera and connect it to the 12 Vdc connector on the camera
drop cable. The polarity of the drop cable connector is shown below.

Before applying power to the camera, ensure that the polarity is correct. An incorrect connection
may cause a malfunction and can damage the camera.
CAUTION
Seal the power cable connectors as needed from moisture and other contamination.
Apply power to the cable to power on the camera.
Step 3. Install the Alibi Discover Tool
The Alibi Discover Tool is a software utility used to "discover" Alibi cameras and NVRs/DVRs installed on the
LAN and change their network settings. The tool is provided on the CD with your camera. To use the tool:
1. Insert the software CD provided with your camera into an optical drive on the Microsoft Windows
computer you will use to access your camera on the LAN.
2. On the CD, find the folder that contains the Alibi Discover Tool.
3. Copy the files in the folder to a new directory on your computer. The files should appear as shown in
the directory shown below.
Mounting
screw holes
Wall inserts
base
Mounting
screws
ALI-IPV30xxR_CQ
Drop
cable
