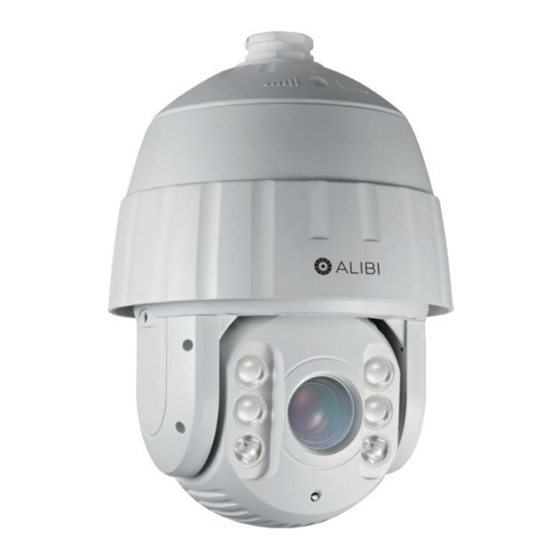

ALI-PTZ30XR 1080P HD-TVI IR
30x Zoom Outdoor PTZ Camera

User Manual

Products: ALI-PTZ30XR
Please read this manual before using your camera, and always follow the instructions for
safety and proper use. Save this manual for future reference.
ALI-PTZ30XR_CM
6/11/15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALI-PTZ30XR and is the answer not in the manual?

Questions and answers

Related Manuals for ALIBI ALI-PTZ30XR

Summary of Contents for ALIBI ALI-PTZ30XR

  • Page 1: User Manual

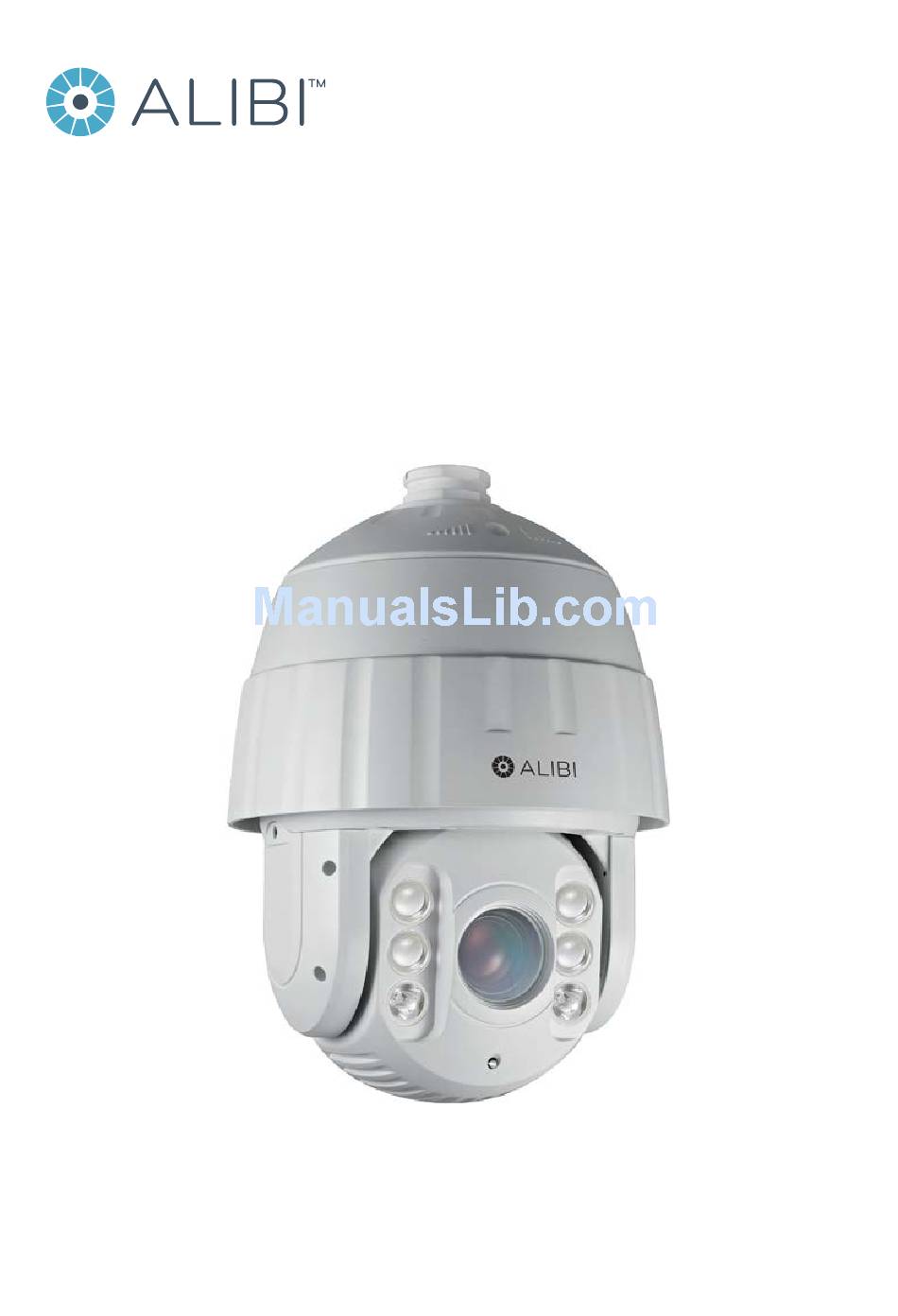

    ALI-PTZ30XR 1080P HD-TVI IR 30x Zoom Outdoor PTZ Camera User Manual Products: ALI-PTZ30XR Please read this manual before using your camera, and always follow the instructions for safety and proper use. Save this manual for future reference. ALI-PTZ30XR_CM 6/11/15...
  • Page 2 ALIBI and the ALIBI logo are trademarks of Observint. Microsoft, Windows, and Internet Explorer are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

  • Page 3: Safety Warnings And Cautions

    SAFETY WARNINGS AND CAUTIONS Safety Warnings and Cautions Hazardous Voltage may be present: Special measures and precautions must be taken when using this device. Some potentials (voltages) on the device may present a hazard to the user. This device should only be used by those with WARNING knowledge and training in working with these types of devices that contain live circuits.

  • Page 4: Preparation For Installation

    SAFETY WARNINGS AND CAUTIONS Warnings Use of the product only when in compliance with local electrical safety regulations. • Use only the required power adapter. The standard power adapter is 24 Vac / 2 A. • Do not connect additional devices to the power adapter. Doing so may over-heat the device and cause a fire hazard. •...

  • Page 5: Table Of Contents

    4.2.2 ALIBI HVR remote access PTZ OSD Main Menu ....... .
  • Page 6 TABLE OF CONTENTS 4.9.2 Preview a patrol ..............39 4.9.3 Call a patrol .
  • Page 7 TABLE OF CONTENTS 5.8 EXIT option ............... .73 SECTION 6 Specifications .
  • Page 8 NOTES viii...

  • Page 9: Introduction

    Introduction The ALIBI™ HD-TVI outdoor PTZ IR camera enables you to pan, tilt and zoom in on suspicious activity and capture high definition video of wide areas such as parking lots, shopping malls and sports facilities. It features a 1/3” CMOS image sensor, 30x optical zoom, 16x digital zoom and delivers 1080p high definition video.
  • Page 10 SECTION 1: INTRODUCTION Preset Freezing This feature freezes the scene on the monitor when moving to a preset. This allows for smooth transition from one preset scene to another and also guarantees that masked areas will not be revealed when moving to a preset. Presets Each of the user-definable presets can be programmed to use pan, tilt, camera settings and other settings.
  • Page 11 SECTION 1: INTRODUCTION Slow Shutter Slow shutter function extends the exposure time to accumulate more light when the light condition is low, resulting in a brighter image. Backlight Compensation (BLC) Back Light Compensation ensures proper exposure of subjects in the foreground. Back light compensation adjusts the camera’s exposure in challenging lighting environments such as hallways and doorways, so the entire image of the subject in the foreground is properly exposed when there is a bright light source behind the subject.

  • Page 12: Accessories

    SECTION 1: INTRODUCTION 1.2 Accessories The following accessories are available for the ALI-PTZ30XR camera. Mounting bracket detail is shown below. Model Type ALI-PTZCL Ceiling Mount Bracket ALI-PTZWB Wall Mount Bracket ALI-PTZPM Pole Mount PTZ Bracket ALI-PTZCM Corner Mount PTZ Bracket ALI-PTZCL: Ceiling Mount Bracket The Ceiling Mount Bracket is suitable for outdoor ceiling mounting.
  • Page 13 SECTION 1: INTRODUCTION ALI-PTZWB: Wall Mount Bracket The Wall Mount Bracket is suitable for indoor and outdoor wall mounting. 3.82" 12.2" 2.95" G 1.5" 0.33" dia. (4) HD-TVI 30x Zoom PTZ IR Outdoor Camera User Manual...
  • Page 14 SECTION 1: INTRODUCTION ALI-PTZPM: Pole Mount PTZ Bracket The Pole Mount Bracket is suitable for outdoor pole mounting. The straps can attach to a 2.64" ~ 5.00" diameter pole. 3.94" dia. 5.63" 12.2" 4.61" G 1.5"...
  • Page 15 SECTION 1: INTRODUCTION ALI-PTZCM: Corner Mount PTZ Bracket 16.52" 6.96" G 1.5" HD-TVI 30x Zoom PTZ IR Outdoor Camera User Manual...

  • Page 16: Installation

    SECTION 2: INSTALLATION SECTION 2 Installation Before you start, check the package contents and make sure that the device in the package is in good condition and all the assembly parts are included. Included are: 24 Vac power supply • Installation guide (this user manual) •...
  • Page 17 SECTION 2: INSTALLATION Locate DIP switch packages SW1 (switches 1 .. 8) and SW2 (switches 1 .. 8). Set the device address DIP switches 1 through 8 using the following table. Each device on the RS-485 network must have a different address. You can configure up to 256 devices (address 0 .. 255) on the RS-485 network. The switch package indicates which position is ON and which is OFF.

  • Page 18: Camera Installation

    SECTION 2: INSTALLATION Comm. mode SW2 switch 7 Simplex Half-duplex The RS-485 termination resistor is controlled using SW2 switch 8. Termination SW2 switch 8 Resistor mode Use resistor Block resistor Reinstall the SWITCH cover plate. 2.2 Camera installation The camera can be mounted to a wall, post, on a corner, or to a ceiling using one of the brackets available for this camera. See “1.2 Accessories”...
  • Page 19 SECTION 2: INSTALLATION Screws (4) Set screw (2) Wall mount installation Drill four screw holes according to the screw holes on the wall mount. Drill a 1-1/4” hole in the mounting surface between the mounting screws appropriate for the camera drop and interface cables.
  • Page 20 SECTION 2: INSTALLATION Screws Clip the camera safety cable to the loop on the mounting bracket. Route the camera drop cables through the mounting bracket and through the wall. Fit the coupling at the top of the camera assembly into the end of the mounting bracket (or adapter), and then rotate the camera clockwise about ½...

  • Page 21: Connecting The Cables

    SECTION 2: INSTALLATION Route the camera drop cables through the hole for them drilled in the mounting surface. Fit the coupling at the top of the camera assembly into the end of the mounting bracket (or adapter), and then rotate the camera clockwise about ½...
  • Page 22 (right diagram), the external relay must be used to prevent damages to the camera and avoid risk of electric shock. Connect the camear HD-TVI video drop cable to an HD-TVI compatible device, such as an ALIBI HD-TVI hybrid video recorder (HVR).
  • Page 23 SECTION 2: INSTALLATION Typical System Information display (without background video stream) Continue with the next section of this manual to setup the camera through the OSD. HD-TVI 30x Zoom PTZ IR Outdoor Camera User Manual...

  • Page 24: Getting Started

    SECTION 3: GETTING STARTED SECTION 3 Getting Started 3.1 Power-up initial display After the power is applied, the camera will perform a series of self-tests including lens functions, the panning movement and tilting movement. After the power-up self-tests complete, the system information screen is displayed for 2 minutes on top of the live view screen.

  • Page 25: Basic Operations

    SECTION 3: GETTING STARTED 3.1.1 Basic operations You can control the camera using a device such as a RS-485 control keyboard, an ALIBI HVR, or Microsoft Internet Explorer connected t the HVR. Ensure that the communication settings and address for the camera are configured properly in the controlling device.

  • Page 26: Manchester Code Control Protocols

    SECTION 3: GETTING STARTED 3.2.1 Manchester code control protocols For Manchester code control protocol, the system-defined presets with special functions are shown as below. Table 3. System-defined Presets of Manchester Code Control Protocol Preset No. Function Preset No. Function Remote reboot Run Pattern 1 Access main menu Run Pattern 2...

  • Page 27: Configuring The Ptz Camera

    Through the PTZ Control panel in the HVR. When using this method, many setup parameters are saved in the HVR. This • method is perhaps the easiest. Specific instructions for using this method are in the ALIBI HVR user manual. HD-TVI 30x Zoom PTZ IR Outdoor Camera User Manual...

  • Page 28: Osd Menu

    Video Set You can control the camera directly through the OSD by connecting it to an ALIBI HD-TVI capable DVR (HVR) and either using the PTZ Control menu, or by logging into the HVR remotely and using the web interface PTZ control panel.

  • Page 29: Opening The Osd Menu

    SECTION 4: CONFIGURING THE PTZ CAMERA 4.2 Opening the OSD menu 4.2.1 ALIBI HVR PTZ OSD Main Menu To open the OSD menu on the HVR monitor: Open the HVR Live View screen, and then click inside the screen where the PTZ camera video image is displayed. See below.

  • Page 30: Alibi Hvr Remote Access Ptz Osd Main Menu

    NOTE configuration options in the camera. 4.2.2 ALIBI HVR remote access PTZ OSD Main Menu To open the PTZ OSD menu during a remote login to the HVR: After logging into the HVR, open the PTZ camera in a single Live View window.

  • Page 31: Osd Menu Navigation

    4.2.3 OSD menu navigation For the ALIBI HVR: Navigation and settings in the OSD are made through direction keys and the Iris + and Iris - buttons in the ALIBI HVR PTZ Control panel. See below.
  • Page 32 SECTION 4: CONFIGURING THE PTZ CAMERA For remote access to the ALIBI HVR: Navigation and settings in the OSD are made through direction keys and the Iris+ and Iris- buttons in the ALIBI HVR PTZ control panel. See above. The function of the directional keys and Iris buttons are defined in the table below.

  • Page 33: Using The Osd Menu System

    SECTION 4: CONFIGURING THE PTZ CAMERA Definitions Position Definition Icon Click Iris+ (OPEN) to open the submenu. Click to move up or down in the parameter list. Click Iris+ (OPEN) to open the submenu or select parameter to change, click to show parameter value, and then click Iris+ to use the parameter value shown and return to mode.

  • Page 34: Step 1: Configuring Image Parameters

    SECTION 4: CONFIGURING THE PTZ CAMERA To move the cursor and operate the menu: Move the cursor up/down: In the PTZ panel of the remote interface, click the p and q direction buttons to move the • cursor up and down in the menu. BACK / EXIT: In the OSD menus, control panel of the live view interface of the DVR: •...
  • Page 35 SECTION 4: CONFIGURING THE PTZ CAMERA Camera Parameters page 3 Camera Parameters page 4 Camera Parameters page 5 To change a parameter (refer to “5.3.4 CAMERA PARAMETER submenus” on page 52 for parameter definitions): When the position icon is either a , use the p and q buttons to position the icon at the parameter you want to change.
  • Page 36 SECTION 4: CONFIGURING THE PTZ CAMERA IRIS: Selects iris-priority mode to set the iris value manually. The shutter and gain values will be adjusted automatically — according to the lighting conditions. SHUTTER: Select shutter-priority mode set the shutter value manually. The iris and gain values will be adjusted —...

  • Page 37: Configure Video Settings

    SECTION 4: CONFIGURING THE PTZ CAMERA SCENE MODE: Adjust the scene for the overall best video performance in the surveillance environment. You can select either • INDOOR or OUTDOOR. SHARPNESS: The sharpness function can increase the gain of the image and sharpen the edges of the picture to enhance •...

  • Page 38: Step 2: Configure Privacy Mask

    SECTION 4: CONFIGURING THE PTZ CAMERA 4.5 Step 2: Configure Privacy Mask The PRIVACYS submenu is used to create privacy blanks (masks). These blanks are used to cover sensitive areas on the live video to prevent that content from appearing in live view and recorded video. The blanks cover the same areas even when the camera pans or tilts, and they automatically adjust their size when the lens zoom changes.

  • Page 39: Step 3: Configuring Osd Settings

    SECTION 4: CONFIGURING THE PTZ CAMERA Click IRIS+ to save the blank. Use steps 2 through 8 above to create additional blanks if needed. 4.6 Step 3: Configuring OSD settings The SYS INFO SETTINGS submenus are provided to adjust the general system parameters including software setup of the RS-485 network settings, fan and heat control, and other options.

  • Page 40: Setting System Time

    SECTION 4: CONFIGURING THE PTZ CAMERA Use the p and q buttons to show the parameter to what you prefer. Click Iris+ again to change the parameter. The position icon will change to either a Repeat steps 1 through 3 above to change other parameters, if needed. See the list below. Parameters include: SOFT ADDR ACTIVE: If the SOFT ADDR ACTIVE is set ON, the soft address is the valid address for connecting the camera.

  • Page 41: Configuring Display Settings

    SECTION 4: CONFIGURING THE PTZ CAMERA Use the p and q buttons to change the first two digits if needed, and then click the u button to advance the cursor to the next field, and change it as needed using the p and q buttons. Repeat the previous step until the current date and time is shown, and then click Iris+ to save the settings and return to the SYS INFO SETTINGS menu.

  • Page 42: Step 4: Configuring Ptz Control Parameters

    SECTION 4: CONFIGURING THE PTZ CAMERA Use the p and q buttons to move the position icon to the parameter you want to change, and then click Iris+. The position icon will change to a Use the p and q buttons to show the parameter to what you prefer. Click Iris+ again to change the parameter.
  • Page 43 SECTION 4: CONFIGURING THE PTZ CAMERA To configure MOTION settings: Open the MOTION PARAMETER submenu from the OSD | DOME SETTINGS menu. MOTION menu page 1 MOTION menu page 2 Use the u and the t buttons to move between MOTION page 1 and page 2, as needed. , use the p and q buttons to position the icon at the parameter you When the position icon is either a want to change.

  • Page 44: Step 5: Configure Presets

    SECTION 4: CONFIGURING THE PTZ CAMERA MOTION STOPS menus - Left, Up, Right, Down 4.8 Step 5: Configure Presets A preset is a setup that points the camera in a defined direction. After a preset is defined, you can click the calling button for that preset to move the camera to that direction.

  • Page 45: Call A Preset

    SECTION 4: CONFIGURING THE PTZ CAMERA Click Iris+ to change the PRESET NUM field. Use the p and q buttons to change the number shown for the preset number. Presets can be numbered from 1 .. 256. Click IRIS+ to create the preset. Move the position icon to the PRESET PTZ option, and then click Iris+.

  • Page 46: Create A Patrol

    SECTION 4: CONFIGURING THE PTZ CAMERA 4.9.1 Create a patrol Open the PATROL submenu from the OSD MAIN MENUS | DOME SETTINGS menu. Click Iris+ to change the PATROL NUM field. Use the p and q buttons to change the number shown for the patrol number. Patrols can be numbered from 1 .. 10. Click IRIS+ to create the patrol.

  • Page 47: Preview A Patrol

    SECTION 4: CONFIGURING THE PTZ CAMERA Click the t buttons three times to return to the NUM column, and then click the q to advance to the nest row. Repeat the procedure in steps 6 through 10 above add additional presets to the patrol as needed. Click IRIS+ to save the patrol setup and return to the PATROLS menu.

  • Page 48: Step 7: Configuring Patterns

    SECTION 4: CONFIGURING THE PTZ CAMERA Move the position icon to the CLEAR PATH option, and then click Iris+, and then click Iris+ again to delete the patrol. 4.10 Step 7: Configuring Patterns A pattern is a memorized, repeatable series of panning, tilting, zooming and preset movements that can be recalled by a command or automatically performed by a configured function (alarm, park, time task, and power-up).

  • Page 49: Preview A Pattern

    SECTION 4: CONFIGURING THE PTZ CAMERA Click the PTZ control buttons and direction buttons to pan, tilt, or zoom in/out to draw the movement path of the camera. The camera will memorize the path you constructed as the pattern, and the amount of memory used to save the pattern will be indicated in by the REMAIN MEMORY (amount of memory remaining) statistic.

  • Page 50: Delete A Pattern

    SECTION 4: CONFIGURING THE PTZ CAMERA 4.10.4 Delete a pattern In the PATTERNS menu, move the position icon to the PATTERN NUM option, and then click Iris+. Use the p and q buttons to select the number of the pattern you want to delete, and then click Iris+. Move the position icon to the CLEAR PATTERN option, and then click Iris+, and then click Iris+ again to delete the pattern.

  • Page 51: Step 9: Configure Alarms

    SECTION 4: CONFIGURING THE PTZ CAMERA Use the p and q buttons move the position marker to the TASK TIME option, and then click Iris+. A schedule menu will open. In the schedule menu, use the p and q buttons to choose when, during the week, the task will be executed. Options include WHOLE WEEK, SUNDAY, MONDAY, TUESDAY, WEDNESDAY, THURSDAY, FRIDAY and SATURDAY.
  • Page 52 SECTION 4: CONFIGURING THE PTZ CAMERA Choose the alarm number. Move the cursor to ALARM NUM, then click the IRIS+ to enter edit mode. Click the up and down direction buttons to select the number of the alarm which is to be configured. Click IRIS+ again to confirm and exit edit mode of this column.

  • Page 53: Configuring Alarm Parameters

    SECTION 4: CONFIGURING THE PTZ CAMERA If multiple alarms with different priorities are triggered at the same time, the dome only responds to the alarm with the highest priority. If multiple alarms with the same priority are triggered at the same time, then the dome will respond to each alarm according to the defined alarm sequence.

  • Page 54: Auxs Submenu (Auxiliary Alarm Output)

    SECTION 4: CONFIGURING THE PTZ CAMERA 4.12.2 AUXS submenu (Auxiliary alarm output) An auxiliary output is a configurable alarm output interface on the camera back box which can connect and trigger another alarm device to operate. You can configure two auxiliary outputs. Open the alarm auxiliary output configuration submenu (AUX).

  • Page 55: Osd Menu Reference

    SECTION 5: OSD MENU REFERENCE SECTION 5 OSD Menu Reference The OSD (On Screen Display) menus are used to configure video parameters, alarms, and to automate the functions of camera. OSD menus appear over the video image from the camera. When the OSD opens (see “4.2 Opening the OSD menu” on page 21), the Main Menu appears.

  • Page 56: Sys Info Submenu

    SECTION 5: OSD MENU REFERENCE 5.2 SYS INFO submenu System information menu displays the current system information of the camera including the camera address, communication parameters, and other parameters. In the SYS INFO displays, these parameters are not changeable, and it is similar to the system information shown when camera is powered on.

  • Page 57: Alarms Submenus

    SECTION 5: OSD MENU REFERENCE DOME SETTINGS menu page 1 DOME SETTINGS menu page 2 To view the second DOME SETTINGS display, position the marker on the SYS INFO SETTINGS line, and then click the u button in the PTZ control panel. To return to the first DOME SETTINGS display, click the t button. To open any submenus in the DOME SETTINGS menu, use the p and q buttons to move the position icon before the item, and then click Iris+.

  • Page 58: Configuring Alarm Parameters

    SECTION 5: OSD MENU REFERENCE Configure the alarm input. Move the cursor to ALARM INPUT, then click the IRIS+ to enter edit mode. Click the up and down direction buttons to set the input status. You can configure it as OPEN (normally open), CLOSE (normally closed) or OFF (disable the alarm input).

  • Page 59: Auxs Submenu (Auxiliary Alarm Output)

    SECTION 5: OSD MENU REFERENCE Configure the interval of the alarm sequence. When more than one alarm of the same priority occurs at the same time, the camera will respond to one alarm first and then respond to the next one after the user-defined interval. You can set the on ALARM SEQUENCE submenu from 1 to 200 seconds.

  • Page 60: Camera Parameter Submenus

    SECTION 5: OSD MENU REFERENCE Link the auxiliary output to the configured alarm. Open MAIN MENUS g DOME SETTINGS g ALARMS g ALARM SETTING, then choose the alarm number that you want to link the auxiliary output to. Move the cursor to AUX, then click IRIS+ to configure the auxiliary output to the alarm. You can choose NONE to disable auxiliary alarm outputs, choose 1 to activate AUX 1, or choose 2 to activate AUX 2.
  • Page 61 SECTION 5: OSD MENU REFERENCE Camera Parameters page 5 Parameter definitions AE mode. AE mode defines the priority of the iris, shutter and gain when the camera adjusts the brightness of the video. The • options in AE MODE are as follows: AUTO: Auto iris, auto shutter and auto gain.
  • Page 62 SECTION 5: OSD MENU REFERENCE HLC: High Light Compensation (HLC) masks strong light sources that usually flare across a scene. This makes it possible to see • the detail of the image that would normally be hidden. The value ranges from 0 to 3. INIT LENS: Use INIT LENS to trigger a spontaneous lens initiation for ensuring the normal operation.

  • Page 63: Clear Settings Submenu

    SECTION 5: OSD MENU REFERENCE Click Iris+ again to change the parameter. The position icon will change to a Repeat steps 1 through 4 above to change the settings of other parameters. 5.3.5 CLEAR SETTINGS submenu The CLEAR SETTINGS feature is used to selectively clear groups of PTZ settings, including presets, patrols, patterns, blanks and zones.

  • Page 64: Set Motion Parameters

    SECTION 5: OSD MENU REFERENCE Diagnostics page 1 Diagnostics page 2 5.3.6 Set Motion parameters The MOTION PARAMETER submenu is used to configure how the camera will move from one surveillance target to another. Some features include: AUTO FLIP: In manual tracking mode, when a target object moves directly beneath the camera, the camera automatically •...
  • Page 65 SECTION 5: OSD MENU REFERENCE MOTION menu page 1 MOTION menu page 2 Use the u and the t buttons to move between MOTION page 1 and page 2, as needed. When the position icon is either a , use the p and q buttons to position the icon at the parameter you want to change.

  • Page 66: Patrols Submenu

    SECTION 5: OSD MENU REFERENCE MOTION STOPS menus - Left, Up, Right, Down 5.3.7 PATROLS submenu A patrol is a memorized series of preset function. Before configuring a patrol, the presets that will become part of a patrol must be created.
  • Page 67 SECTION 5: OSD MENU REFERENCE Use the p and q buttons to move the position icon to the EDIT PATROL option, and then click Iris+ to open the edit screen. On the first line (NUM 1) of the edit screen, click the u buttons to move the position icon to the PST (preset) field. Use the p and q buttons to select the first preset of the patrol.

  • Page 68: Patterns Submenu

    SECTION 5: OSD MENU REFERENCE Move the position icon to the PREVIEW option, and then click Iris+. The patrol you selected will play indefinitely. Click Iris+ again to stop the preview and return to the PATROLS menu. Delete a patrol In the PATROLS menu, move the position icon to the PATROL NUM option, and then click Iris+.
  • Page 69 SECTION 5: OSD MENU REFERENCE REMAIN MEMORY indicates the remaining memory of the camera for configuring patterns. When it reaches 0, no more • NOTE patterns can be configured. You can also see the remaining memory shown under PATTERNS menu as REMAINING. Panning/tilting movements and lens operations cannot be memorized simultaneously.

  • Page 70: Presets Submenu

    SECTION 5: OSD MENU REFERENCE Preview a pattern In the PATTERNS menu, move the position icon to the PATTERN NUM option, and then click Iris+. Use the p and q buttons to select the number of the pattern you want to preview, and then click Iris+. Move the position icon to the PREVIEW option, and then click Iris+.

  • Page 71: Privacys Submenu

    SECTION 5: OSD MENU REFERENCE Click Iris+ to change the PRESET NUM field. Use the p and q buttons to change the number shown for the preset number. Presets can be numbered from 1 .. 256. Click IRIS+ to create the preset. Move the position icon to the PRESET PTZ option, and then click Iris+.
  • Page 72 SECTION 5: OSD MENU REFERENCE or tilts, and they automatically adjust their size when the lens zoom changes. You can create up to 8 privacy blanks. To create a blank: Open the PRIVACYS submenu from the OSD MAIN MENUS | DOME SETTINGS menu. Click Iris+ to change the BLANK NUM field.

  • Page 73: Sys Info Settings Submenu

    SECTION 5: OSD MENU REFERENCE 5.3.11 SYS INFO SETTINGS submenu The SYS INFO SETTINGS submenus are provided to adjust the general system parameters including software setup of the RS-485 network settings, fan and heat control, and other options. It also includes two submenus for setting the system time and display options, and an additional screen for setting the ZERO ANGLE.
  • Page 74 SECTION 5: OSD MENU REFERENCE SYS INFO SETTINGS page 1 SYS INFO SETTINGS page 2 SYS INFO SETTINGS page 3 To change a parameter value: Use the p and q buttons to move the position icon to the parameter you want to change, and then click Iris+. The .
  • Page 75 SECTION 5: OSD MENU REFERENCE Use the p and q buttons to change the first two digits if needed, and then click the u button to advance the cursor to the next field, and change it as needed using the p and q buttons. Repeat the previous step until the current date and time is shown, and then click Iris+ to save the settings and return to the SYS INFO SETTINGS menu.

  • Page 76: Time Task Submenu

    SECTION 5: OSD MENU REFERENCE Use the p and q buttons to move the position icon to the parameter you want to change, and then click Iris+. The position icon will change to a Use the p and q buttons to show the parameter to what you prefer. Click Iris+ again to change the parameter.
  • Page 77 SECTION 5: OSD MENU REFERENCE Click Iris+ to create the task. Move the position icon to the TASK ACTion option, and then click Iris+. Use the p and q buttons to change the action you want the task to perform. TASK ACTion options are NONE, DAY, NIGHT, ZERO CALIBRation, PAN SCAN, TILT SCAN, PANORAMA, FRAME SCAN, RANDOM SCAN, PATROL-D, PATROL 1 ..10, PATTERN 1 ..

  • Page 78: Video Settings Submenu

    SECTION 5: OSD MENU REFERENCE 5.3.13 VIDEO SETTINGS submenu The VIDEO SETTINGS submenu is used to set the video frame rate. Options are 25, 30, 50, 60 fps. For this camera, the base video resolution is 720P. To change the frame rate: Open the VIDEO SETTINGS submenu.

  • Page 79: Restore Defaults Option

    SECTION 5: OSD MENU REFERENCE Click Iris+ to create the zone. Move the position icon to the EDIT ZONE option, and then click Iris+. The SET LEFT LIMIT screen window will open. Use the t and u buttons to position the camera to the left extreme of the zone you are configuring, and then click Iris+ to save the settings.

  • Page 80: Restore Camera Option

    SECTION 5: OSD MENU REFERENCE Click Iris+. The screen shown above on the right will open. Click Iris+again to restore the camera to factory default settings, or click Iris– to cancel. 5.5 RESTORE CAMERA option The RESTORE CAMERA option sets all camera parameters to the factory default settings. Camera settings include the image parameters, lens settings and display settings.

  • Page 81: Language Options

    SECTION 5: OSD MENU REFERENCE Click Iris+. The screen shown above on the right will open. Click Iris+again to reboot the camera, or click Iris– to cancel. 5.7 LANGUAGE options This option is used to change the OSD on screen language. The default language is ENGLISH. To change the OSD language: Use the p and q buttons to move the position icon to LANGUAGE, and then click Iris+.
  • Page 82 SECTION 5: OSD MENU REFERENCE...

  • Page 83: Specifications

    SECTION 6: SPECIFICATIONS SECTION 6 Specifications Table 4. Table of Specifications Area Parameter Specification Image Sensor 1/3” CMOS Effective Pixel 1920 (H) x 1080 (V) Signal System NTSC Min. Illumination Color: 0.02 lux @ (F1.6, AGC ON) ; B / W: 0.002 lux @ (F1.6, AGC ON), 0 lux with IR White Balance Auto / Manual / ATW / Indoor / Outdoor Auto / Manual...
  • Page 84 SECTION 6: SPECIFICATIONS Area Parameter Specification Patrol 8 patrols, up to 32 presets per patrol Pattern 4 patterns, with the total recording time not less than 10 minutes Power-off Memory Support Park Action Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan Pan and Tilt (cont.) PTZ Position Display On / Off...

  • Page 85: Appendix A Lightning And Surge Protection

    APPENDIX A: LIGHTNING AND SURGE PROTECTION APPENDIX A Lightning and Surge Protection This product includes TVS plate lightning protection technology to prevent damage caused by a pulse signal that is below 3000 watts from sources such as lighting, surging, etc. Protection measures must be taken to ensure electrical safety. The distance between signal transmission line and high-voltage equipment or high-voltage cable is at least 50 m.

  • Page 86: Appendix Brs-485 Bus Connection

    APPENDIX B: RS-485 BUS CONNECTION APPENDIX B RS-485 Bus Connection General Property of RS-485 Bus RS-485 is a half-duplex communication bus that has a 120 Ω characteristic impedance. The maximum load ability is 32 payloads (including controller device and controlled device). RS-485 Bus Transmission Distance For 0.56 mm (24AWG) twisted-pair wire, the maximum transmission distance for different baud rates is shown as below: Max.
  • Page 87 APPENDIX B: RS-485 BUS CONNECTION B– B– 120 Ω 120 Ω Controller RS-485 Connection 2 diagram Problems in the practical application - star-shaped architecture Although the star-shape connection method is commonly used, it does not satisfy the requirement of the RS-485 industry. This architecture can lead to problems such as signal reflection, uncontrollable or self-running cameras, and anti-jamming inability with devices that are far away.
  • Page 88 APPENDIX B: RS-485 BUS CONNECTION 120 Ω 120 Ω 120 Ω B– 120 Ω 120 Ω 120 Ω 120 Ω Star-shaped network with an RS-485 Distributor FAQ of RS-485 Bus Fault Probable Cause Solutions The camera will perform a self The address or baud rate is not configured Configure the camera address and baud rate to check but cannot be controlled.

  • Page 89: Appendix C 24 Vac Wire Gauge And Transmission Distance

    APPENDIX C: 24 VAC WIRE GAUGE AND TRANSMISSION DISTANCE APPENDIX C 24 Vac Wire Gauge and Transmission Distance The following table shows the recommended maximum distance adopted for the different wire sizes when the 24 Vac voltage loss is less than 10%. For the AC driven device, the maximum voltage loss rate allowable is 10%. For example, for a device with the rating power of 80 VA which is installed 35 feet (10 m) from the transformer, the minimum wire gauge required is 0.8000 mm.
  • Page 90 APPENDIX C: 24 VAC WIRE GAUGE AND TRANSMISSION DISTANCE Table 6. Wire Gauge Standards American Wire Gauge Cross-sectional Area of Bare Wire Gauge (mm) Bare Wire (mm 0.750 0.4417 0.800 0.5027 0.900 0.6362 1.000 0.7854 1.250 1.2266 1.500 1.7663 2.000 3.1420 2.500 4.9080...
