ALIBI ALI-IPV5030RMH Quick Installation Manual

ALI-IPV5030RMH 3.0 MP IP Dome
Camera Quick Installation Guide
This document guides you through the basic steps to install and configure the ALI-IPV5030RMH cameras.
The camera features:
Up to 2048 x 1536 resolution
•
Full HD 1080p video
•
Smart Codec, Smart VQD, Smart Facial Detection
•
120 dB WDR, 3D DNR
•
Triple streams
•
On-board storage, up to 64 GB
•
Smart Focus: 8~12 mm Motorized VF lens
•
Intrusion Detection
•
Built-in heater & fan
•
Defog
•
People Counting
•
Built-in heater
•
For more information about the software features of this camera, please refer to the ALI-IP Camera
Software User Manual.
Base
Dome
assembly
Lens
IR array
Dome
assembly
Safety
cable
Captive camera
assembly mounting
screws (4)
* Press the RESET button for 10 seconds when the camera is powering on or rebooting to restore the
default settings, including the user name, password, IP address, the port number, etc.
www.observint.com
1

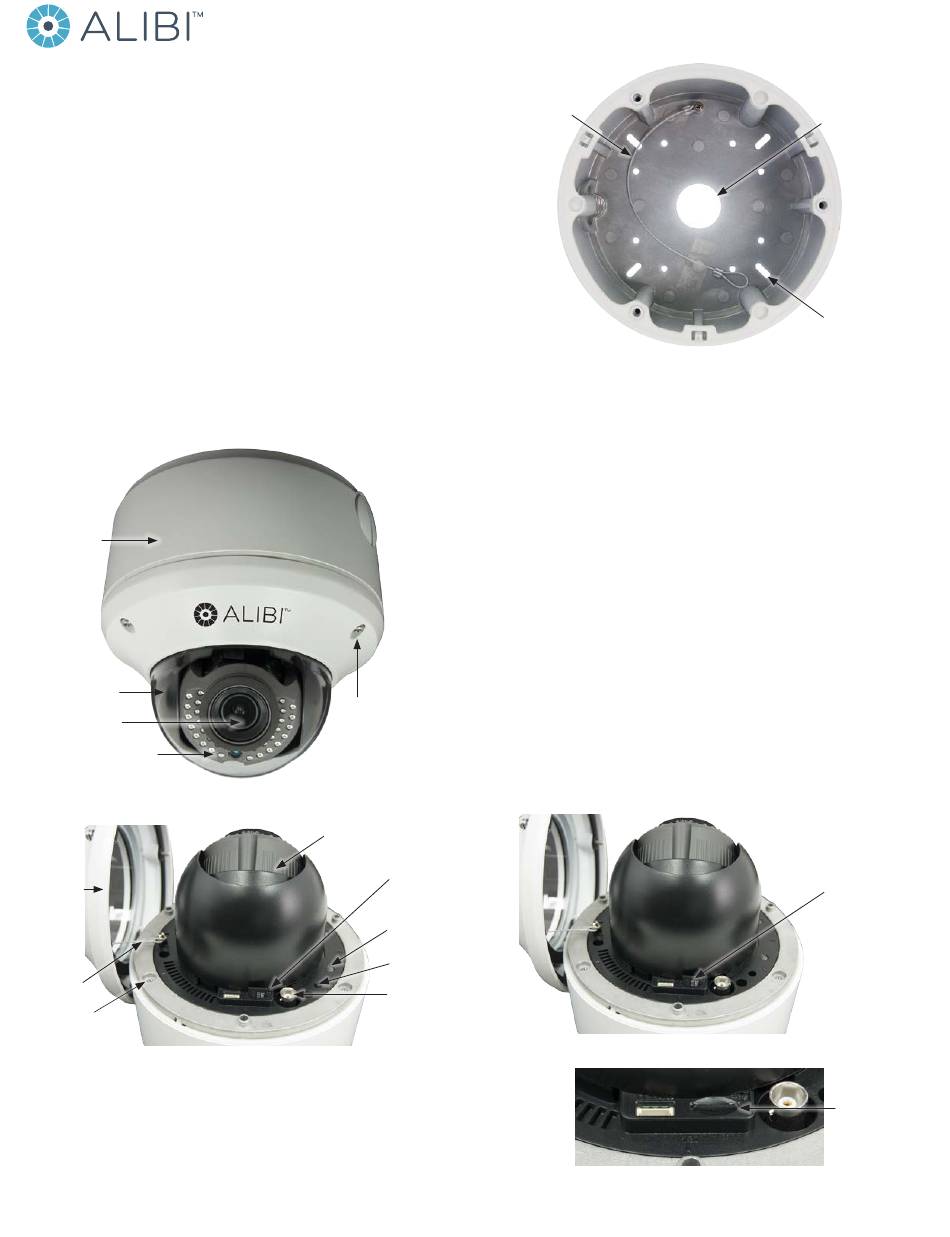

What's in the box
Your camera includes these items:
•
•
•
•
•
•
•
•
•
Step 1.
A microSD card installed in the camera provides local storage for log information, capture files, and
recorded video. This information can be downloaded to a network PC by accessing the camera web
interface with Microsoft Internet Explorer (see "Step 5. Remote login" on page 3). microSD cards can be
Captive dome
as large as 64GB. To install a microSD card in the camera:
screws (3)
1.
2.
Camera
assembly
MicroSD
card slot
with card
partially
installed
Status LED
Reset
button*
Video test
monitor
cable
connecto
r
3.
4.
Safety
cable
Camera with dome cover removed
Security L-wrench
Video test cable (BNC adapter)
Mounting hardware including screws, wall inserts, and toggle bolts
LAN drop cable seal kit
Sponge seal for surface mounting
Drill template for surface mounting
Drill template for recessed mounting
CD with documentation and the Alibi Discover software utility
This document
Install a microSD card in the camera
Loosen the captive screws that secure the dome assembly, and then lift it off and set it to the side.
The dome assembly is attached to the camera assembly with a safety cable.
Insert a microSD card into the slot shown in the photo below.
Push the microSD card into the slot until it clicks into place.
Reattach the dome assembly.
Extension
cable
access
Holes for
mounting
the base (12)
microSD
card slot
with card
partially
installed
microSD
card slot
with card
fully
installed
